Suzuki DT 9.9c Parts Listings 1988 to 1997

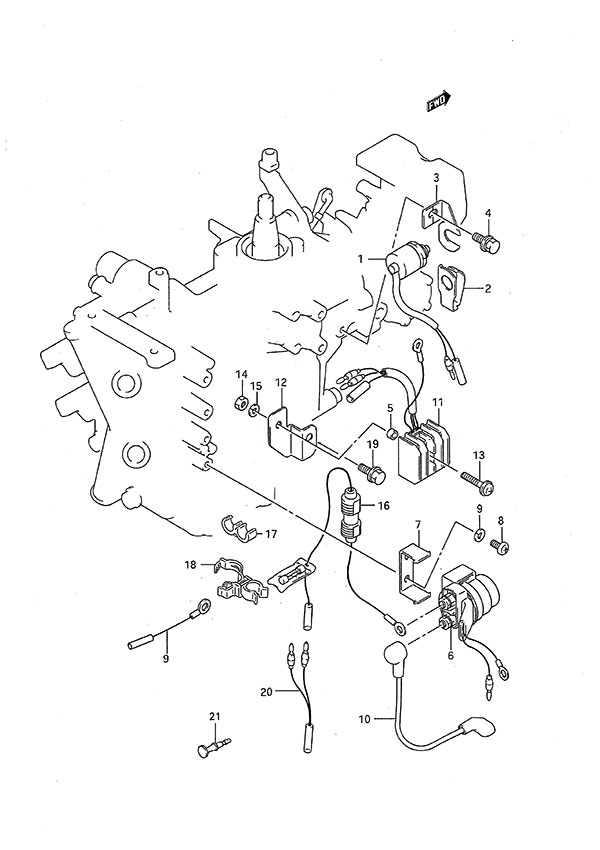

Fig. 15 - Electrical (Electric Starter)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37721-94406 Neutral Switch Assembly
SKU: 37721-94406 Weight: 0.200000 Brand: Price: $ 29.49 |
Neutral Switch Assembly | 1 | $ 29.49 | ||
| 2 | 37725-94302 Neutral Switch Actuator
SKU: 37725-94302 Weight: 0.060000 Brand: Price: $ 5.35 |
Neutral Switch Actuator | 1 | $ 5.35 | ||
| 3 | 37726-94402 Switch Bracket
SKU: 37726-94402 Weight: 0.100000 Brand: Price: $ 4.84 |
Switch Bracket | 1 | $ 4.84 | ||
| 4 | 09118-06038 Bolt (6x12) (NLA)
SKU: 09118-06038 Weight: 0.100000 Brand: Price: $ 2.94 |
Bolt (6x12) (NLA) | 1 | $ 2.94 | ||
| 5 | 09180-06309 Spacer
SKU: 09180-06309 Weight: 0.100000 Brand: Price: $ 2.06 |
Spacer | 1 | $ 2.06 | ||
| 6 | 31800-94401 Starter Relay
SKU: 31800-94401 Weight: 0.340000 Brand: Price: $ 140.18 |
Starter Relay | 1 | $ 140.18 | ||
| 7 | 31805-95501 Relay Bracket
SKU: 31805-95501 Weight: 0.125000 Brand: Price: $ 4.20 |
Relay Bracket | 1 | $ 4.20 | ||
| 8 | 02112-35087 Screw (NLA)
SKU: 02112-35087 Weight: 0.100000 Brand: Price: $ 1.29 |
Screw (NLA) | 2 | $ 1.29 | ||
| 9 | 37801-98300 Lead (NLA)
SKU: 37801-98300 Weight: 0.100000 Brand: Price: $ 3.65 |
Lead (NLA) | 1 | $ 3.65 | Sail Manual Starter | |
| 10 | 33820-89E01 Starter Sub Cable Assy (NLA)
SKU: 33820-89E01 Weight: 5.000000 Brand: Price: $ 11.51 |
Starter Sub Cable Assy (NLA) | 1 | $ 11.51 | ||
| 11 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | ||
| 12 | 32815-92D00 Rectifier Bracket (NLA)
SKU: 32815-92D00 Weight: 0.100000 Brand: Price: $ 3.72 |
Rectifier Bracket (NLA) | 1 | $ 3.72 | ||
| 13 | 02142-05257 SCREW 5 X 20
SKU: 02142-05257 Weight: 0.062500 Brand: Price: $ 1.48 |
SCREW 5 X 20 | 1 | $ 1.48 | ||
| 14 | 08310-00057 Nut
SKU: 08310-00057 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 15 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 16-1 | 36740-89E00 Fuse Case Assembly (NLA)
SKU: 36740-89E00 Weight: 0.100000 Brand: Price: $ 13.00 |
Fuse Case Assembly (NLA) | 1 | $ 13.00 | Electric Starter | |
| 16-2 | 36740-92D52 Fuse Case Assembly (NLA)
SKU: 36740-92D52 Weight: 0.100000 Brand: Price: $ 10.88 |
Fuse Case Assembly (NLA) | 1 | $ 10.88 | Sail Manual Starter | |
| 17 | 09408-00043 Clamp
SKU: 09408-00043 Weight: 0.250000 Brand: Price: $ 0.00 |
Clamp | 1 | $ 0.00 | 1988 to 1994 | |
| 18 | 09408-00168 Clamp (NLA)
SKU: 09408-00168 Weight: 0.100000 Brand: Price: $ 2.79 |
Clamp (NLA) | 1 | $ 2.79 | 1995 to 1997 | |
| 19 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 20 | 36610-92D00 Wiring Harness Assembly (NLA)
SKU: 36610-92D00 Weight: 5.000000 Brand: Price: $ 4.23 |
Wiring Harness Assembly (NLA) | 1 | $ 4.23 | ||
| 21 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 1 | $ 1.31 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
