Suzuki DT 9.9c Parts Listings 1988 to 1997

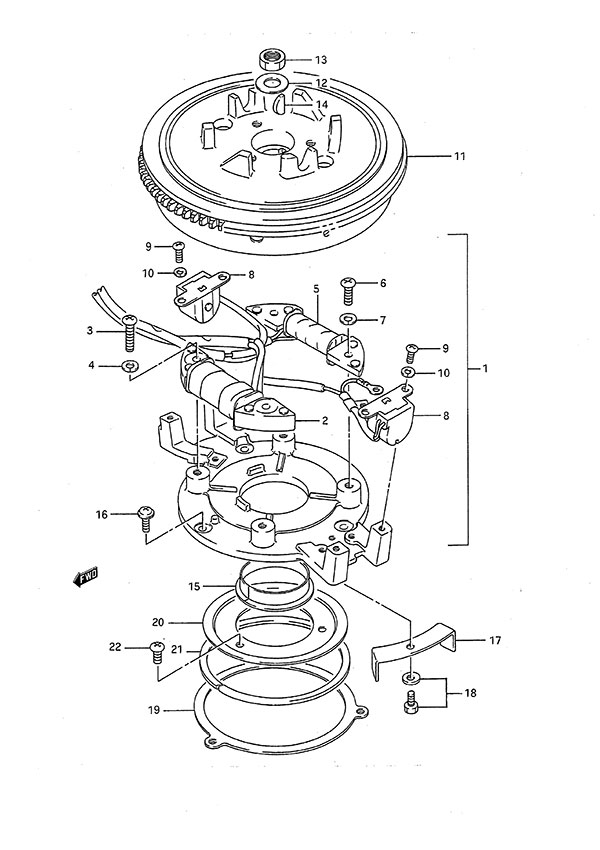

Fig. 13 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 32101-92D01 Stator Assembly (NLA)
SKU: 32101-92D01 Weight: 0.100000 Brand: Price: $ 228.75 |
Stator Assembly (NLA) | 1 | $ 228.75 | Electric Starter | |
| 1-2 | 32101-92D11 Stator Assembly (NLA)
SKU: 32101-92D11 Weight: 1.800000 Brand: Price: $ 228.75 |
Stator Assembly (NLA) | 1 | $ 228.75 | Manual Starter 1988 to 1993 | |
| 1-3 | 32101-92D13 Stator Assembly (NLA)
SKU: 32101-92D13 Weight: 0.100000 Brand: Price: $ 358.13 |
Stator Assembly (NLA) | 1 | $ 358.13 | Manual Starter 1994 to 1997 | |
| 1-4 | 32101-92D01 Stator Assembly (NLA)
SKU: 32101-92D01 Weight: 0.100000 Brand: Price: $ 228.75 |
Stator Assembly (NLA) | 1 | $ 228.75 | Sail | |
| 1-5 | 32101-92D13 Stator Assembly (NLA)
SKU: 32101-92D13 Weight: 0.100000 Brand: Price: $ 358.13 |
Stator Assembly (NLA) | 1 | $ 358.13 | Sail 1994 to 1997 | |
| 2 | 32200-92D20 Lighting Coil (NLA)
SKU: 32200-92D20 Weight: 0.100000 Brand: Price: $ 50.54 |
Lighting Coil (NLA) | 1 | $ 50.54 | ||
| 3 | 02112-06257 6X25CROSS SCREW
SKU: 02112-06257 Weight: 0.060000 Brand: Price: $ 1.78 |
6X25CROSS SCREW | 2 | $ 1.78 | ||
| 4 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 5 | 32140-92D20 Ignition Coil Assembly (NLA)
SKU: 32140-92D20 Weight: 0.100000 Brand: Price: $ 80.13 |
Ignition Coil Assembly (NLA) | 1 | $ 80.13 | ||
| 6 | 02112-06207 CROSS SCREW,6X2
SKU: 02112-06207 Weight: 0.060000 Brand: Price: $ 1.78 |
CROSS SCREW,6X2 | 2 | $ 1.78 | ||
| 7 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 8 | 32160-92D10 Timer Sensor (NLA)
SKU: 32160-92D10 Weight: 0.100000 Brand: Price: $ 103.08 |
Timer Sensor (NLA) | 2 | $ 103.08 | ||
| 9 | 02112-0510A SCREW
SKU: 02112-0510A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 4 | $ 1.44 | ||
| 10 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 4 | $ 1.85 | ||
| 11 | 32102-92D02 Flywheel (NLA)
SKU: 32102-92D02 Weight: 0.100000 Brand: Price: $ 367.85 |
Flywheel (NLA) | 1 | $ 367.85 | ||
| 12 | 09160-12080 Washer
SKU: 09160-12080 Weight: 0.125000 Brand: Price: $ 4.32 |
Washer | 1 | $ 4.32 | ||
| 13 | 09140-12038 Nut
SKU: 09140-12038 Weight: 0.060000 Brand: Price: $ 3.26 |
Nut | 1 | $ 3.26 | ||
| 14 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 15 | 32390-92D00 Magneto Base Retainer (NLA)
SKU: 32390-92D00 Weight: 0.100000 Brand: Price: $ 2.30 |
Magneto Base Retainer (NLA) | 1 | $ 2.30 | ||
| 16 | 02142-0512A SCREW
SKU: 02142-0512A Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW | 3 | $ 1.38 | ||
| 17-1 | 19172-92D12 Stator Stopper (NLA)
SKU: 19172-92D12 Weight: 0.100000 Brand: Price: $ 2.39 |
Stator Stopper (NLA) | 1 | $ 2.39 | 1988 to 1995 | |
| 17-2 | 19172-92D13 Stator Stopper (NLA)
SKU: 19172-92D13 Weight: 0.100000 Brand: Price: $ 3.85 |
Stator Stopper (NLA) | 1 | $ 3.85 | 1996 to 1997 | |
| 19 | 19181-92D00 Stator Friction (NLA)
SKU: 19181-92D00 Weight: 0.100000 Brand: Price: $ 8.51 |
Stator Friction (NLA) | 1 | $ 8.51 | ||
| 20 | 19151-92D00 Stator Retainer (NLA)
SKU: 19151-92D00 Weight: 0.100000 Brand: Price: $ 7.07 |
Stator Retainer (NLA) | 1 | $ 7.07 | ||
| 21 | 19161-92D00 Stator Spacer (NLA)
SKU: 19161-92D00 Weight: 0.100000 Brand: Price: $ 4.23 |
Stator Spacer (NLA) | 1 | $ 4.23 | ||
| 22-1 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 3 | $ 1.96 | 1988 to 1993 | |
| 22-2 | 02112-06107 SCREW
SKU: 02112-06107 Weight: 0.125000 Brand: Price: $ 1.44 |
SCREW | 3 | $ 1.44 | 1994 to 1997 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
