Suzuki DT 9.9c Parts Listings 1988 to 1997

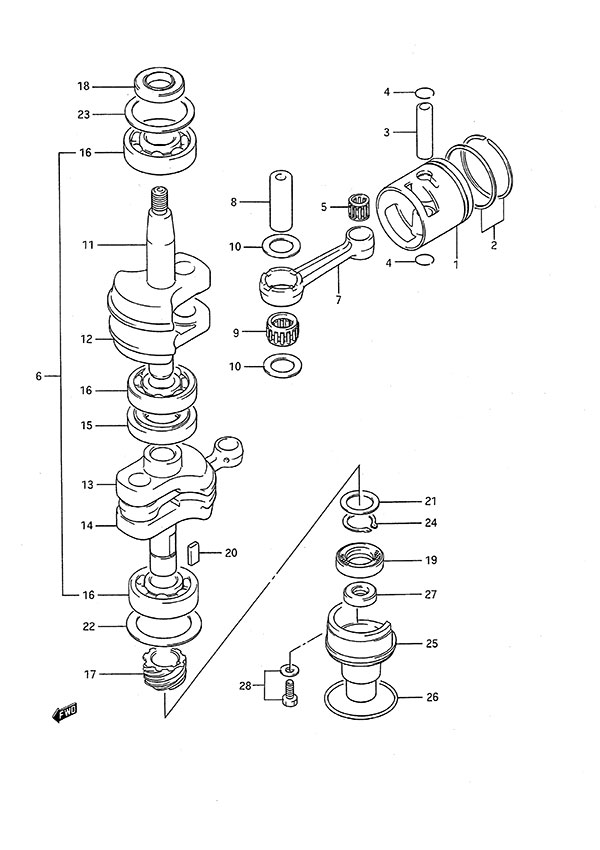

Fig. 2 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 12110-92D21 Piston
SKU: 12110-92D21 Weight: 0.500000 Brand: Price: $ 87.00 |
Piston | 2 | $ 87.00 | ||
| 1-2 | 12110-92D21-025 Piston (OS:0.25) (NLA)
SKU: 12110-92D21-025 Weight: 0.100000 Brand: Price: $ 32.67 |
Piston (OS:0.25) (NLA) | 2 | $ 32.67 | Optional | |
| 1-3 | 12100-92D21-025 Piston & Ring Set (OS:0.25) (NLA)
SKU: 12100-92D21-025 Weight: 0.100000 Brand: Price: $ 54.21 |
Piston & Ring Set (OS:0.25) (NLA) | 2 | $ 54.21 | Optional | |
| 1-4 | 12100-92D21-050 Piston & Ring Set (OS:0.50) (NLA)
SKU: 12100-92D21-050 Weight: 0.320000 Brand: Price: $ 85.58 |
Piston & Ring Set (OS:0.50) (NLA) | 2 | $ 85.58 | Optional | |
| 2-1 | 12140-92D21 Piston Ring Set
SKU: 12140-92D21 Weight: 0.060000 Brand: Price: $ 36.50 |
Piston Ring Set | 2 | $ 36.50 | ||
| 2-2 | 12140-40A10-050 Piston Ring Set (OS:0.50) (NLA)
SKU: 12140-40A10-050 Weight: 0.100000 Brand: Price: $ 21.84 |
Piston Ring Set (OS:0.50) (NLA) | 2 | $ 21.84 | Optional | |
| 3 | 12151-90600 Piston Pin
SKU: 12151-90600 Weight: 0.060000 Brand: Price: $ 5.23 |
Piston Pin | 2 | $ 5.23 | ||
| 4 | 09381-12001 Piston Pin Circlip
SKU: 09381-12001 Weight: 0.060000 Brand: Price: $ 1.44 |
Piston Pin Circlip | 4 | $ 1.44 | ||
| 5 | 09263-12023 Bearing (12x16x16)
SKU: 09263-12023 Weight: 0.060000 Brand: Price: $ 10.36 |
Bearing (12x16x16) | 2 | $ 10.36 | ||
| 6-1 | 12200-92D11 Crankshaft Assembly (NLA)
SKU: 12200-92D11 Weight: 50.000000 Brand: Price: $ 432.93 |
Crankshaft Assembly (NLA) | 1 | $ 432.93 | S/N 461781 Older | |
| 6-2 | 12200-92D12 Crankshaft Assembly (NLA)
SKU: 12200-92D12 Weight: 50.000000 Brand: Price: $ 465.06 |
Crankshaft Assembly (NLA) | 1 | $ 465.06 | S/N 461782 Newer | |
| 7 | 12161-92D00 Connecting Rod
SKU: 12161-92D00 Weight: 0.200000 Brand: Price: $ 53.28 |
Connecting Rod | 2 | $ 53.28 | ||
| 8 | 12211-92D00 Crankshaft Pin
SKU: 12211-92D00 Weight: 0.200000 Brand: Price: $ 21.63 |
Crankshaft Pin | 2 | $ 21.63 | ||
| 9 | 09263-17035 Bearing (17x24x14 )
SKU: 09263-17035 Weight: 0.060000 Brand: Price: $ 20.06 |
Bearing (17x24x14 ) | 2 | $ 20.06 | ||
| 10 | 09181-17223 Thrust Washer (1.00)
SKU: 09181-17223 Weight: 0.200000 Brand: Price: $ 3.01 |
Thrust Washer (1.00) | 4 | $ 3.01 | ||
| 11 | 12221-92D02 Upper Crankshaft (NLA)
SKU: 12221-92D02 Weight: 10.000000 Brand: Price: $ 96.94 |
Upper Crankshaft (NLA) | 1 | $ 96.94 | ||
| 17 | 12231-92D02 Middle Upper Wheel (NLA)
SKU: 12231-92D02 Weight: 0.100000 Brand: Price: $ 90.10 |
Middle Upper Wheel (NLA) | 1 | $ 90.10 | ||
| 13 | 12232-92D01 Middle Under Wheel (NLA)
SKU: 12232-92D01 Weight: 10.000000 Brand: Price: $ 94.16 |
Middle Under Wheel (NLA) | 1 | $ 94.16 | ||
| 14 | 12240-92D11 Under Crankshaft (NLA)
SKU: 12240-92D11 Weight: 10.000000 Brand: Price: $ 90.09 |
Under Crankshaft (NLA) | 1 | $ 90.09 | ||
| 15-1 | 09289-28009 Oil Seal
SKU: 09289-28009 Weight: 0.060000 Brand: Price: $ 15.20 |
Oil Seal | 1 | $ 15.20 | S/N 461781 Older | |
| 15-2 | 09289-28011 Oil Seal (NLA)
SKU: 09289-28011 Weight: 0.060000 Brand: Price: $ 14.15 |
Oil Seal (NLA) | 1 | $ 14.15 | S/N 461782 Newer | |
| 16-1 | 09262-20003 Bearing (20x52x15)
SKU: 09262-20003 Weight: 0.340000 Brand: Price: $ 27.96 |
Bearing (20x52x15) | 3 | $ 27.96 | 1988 to 1991 | |
| 16-2 | 09262-20073 Bearing (20x52x15)
SKU: 09262-20073 Weight: 0.340000 Brand: Price: $ 23.69 |
Bearing (20x52x15) | 3 | $ 23.69 | 1992 to 1997 | |
| 17 | 16321-92D00 Oil Pump Drive Gear
SKU: 16321-92D00 Weight: 0.150000 Brand: Price: $ 73.82 |
Oil Pump Drive Gear | 1 | $ 73.82 | ||
| 18 | 09283-20006 Crankshaft Oil Seal
SKU: 09283-20006 Weight: 0.060000 Brand: Price: $ 5.60 |
Crankshaft Oil Seal | 1 | $ 5.60 | ||
| 19 | 09283-20018 Oil Seal (20x37x9)
SKU: 09283-20018 Weight: 0.060000 Brand: Price: $ 6.16 |
Oil Seal (20x37x9) | 1 | $ 6.16 | ||
| 20 | 09421-08001 Key
SKU: 09421-08001 Weight: 0.060000 Brand: Price: $ 2.86 |
Key | 1 | $ 2.86 | ||
| 21-1 | 08211-20301 Washer
SKU: 08211-20301 Weight: 0.060000 Brand: Price: $ 2.37 |
Washer | 1 | $ 2.37 | 1988 to 1996 | |
| 22 | 08211-40552 Thrust Washer
SKU: 08211-40552 Weight: 0.125000 Brand: Price: $ 7.09 |
Thrust Washer | 1 | $ 7.09 | ||
| 23 | 09181-40186 Shim (0.50)
SKU: 09181-40186 Weight: 0.060000 Brand: Price: $ 4.06 |
Shim (0.50) | 1 | $ 4.06 | ||
| 24 | 08331-3120A Circlip
SKU: 08331-3120A Weight: 0.100000 Brand: Price: $ 2.04 |
Circlip | 1 | $ 2.04 | ||
| 25 | 11431-92D00 Under Oil Seal Housing (NLA)
SKU: 11431-92D00 Weight: 0.100000 Brand: Price: $ 24.67 |
Under Oil Seal Housing (NLA) | 1 | $ 24.67 | ||
| 26 | 09280-48006 O-Ring
SKU: 09280-48006 Weight: 0.060000 Brand: Price: $ 1.68 |
O-Ring | 1 | $ 1.68 | ||
| 27 | 09282-12008 Oil Seal (12x24x4.5)
SKU: 09282-12008 Weight: 0.060000 Brand: Price: $ 6.27 |
Oil Seal (12x24x4.5) | 1 | $ 6.27 | ||
| 28 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
