Suzuki DT 2 Parts Listings 1994 to 1996

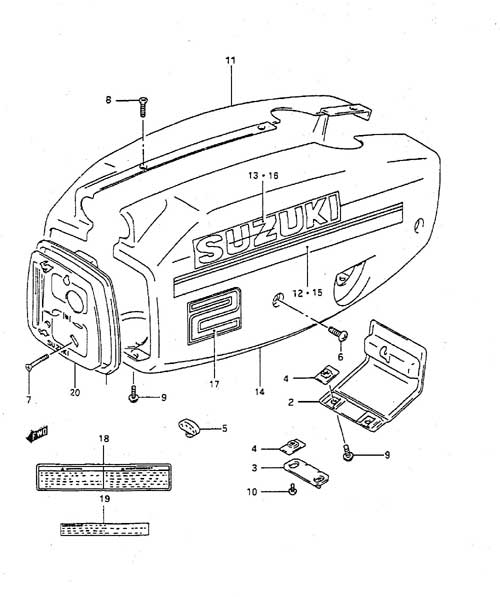

Fig. 16 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61420-98402 Engine Cover Front Emblem
SKU: 61420-98402 Weight: 0.160000 Brand: Price: $ 13.03 |
Engine Cover Front Emblem | 1 | $ 13.03 | ||
| 2 | 61481-98430-0EM Engine Cover Hinge
SKU: 61481-98430-0EM Weight: 0.125000 Brand: Price: $ 18.93 |
Engine Cover Hinge | 1 | $ 18.93 | ||
| 3 | 61485-98410 Engine Cover Hinge Spring (NLA)
SKU: 61485-98410 Weight: 0.060000 Brand: Price: $ 3.24 |
Engine Cover Hinge Spring (NLA) | 1 | $ 3.24 | ||
| 4 | 61490-98411 Engine Cover Plate
SKU: 61490-98411 Weight: 0.125000 Brand: Price: $ 3.21 |
Engine Cover Plate | 5 | $ 3.21 | ||
| 5 | 61521-98400 Shear Pin Holder (NLA)
SKU: 61521-98400 Weight: 0.100000 Brand: Price: $ 2.32 |
Shear Pin Holder (NLA) | 1 | $ 2.32 | ||
| 6 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 4 | $ 2.06 | ||
| 7 | 09126-04003 Screw (4x35)
SKU: 09126-04003 Weight: 0.200000 Brand: Price: $ 2.09 |
Screw (4x35) | 2 | $ 2.09 | ||
| 8 | 09126-05007 Screw (5x12)
SKU: 09126-05007 Weight: 0.060000 Brand: Price: $ 2.02 |
Screw (5x12) | 3 | $ 2.02 | ||
| 9 | 09136-05008 Screw (5x12)
SKU: 09136-05008 Weight: 0.060000 Brand: Price: $ 2.59 |
Screw (5x12) | 4 | $ 2.59 | ||
| 10 | 02142-05087 SCREW 5X8 CROSS
SKU: 02142-05087 Weight: 0.062500 Brand: Price: $ 1.43 |
SCREW 5X8 CROSS | 2 | $ 1.43 | ||
| 11 | 61460-98Y11-0EM Starboard Engine Cover (NLA)
SKU: 61460-98Y11-0EM Weight: 0.100000 Brand: Price: $ 46.74 |
Starboard Engine Cover (NLA) | 1 | $ 46.74 | ||
| 12 | 61443-98471 Starboard Engine Cover Stripe (NLA)
SKU: 61443-98471 Weight: 0.100000 Brand: Price: $ 6.87 |
Starboard Engine Cover Stripe (NLA) | 1 | $ 6.87 | ||
| 13 | 68111-01C20-C4Z Suzuki Emblem (NLA)
SKU: 68111-01C20-C4Z Weight: 0.060000 Brand: Price: $ 5.57 |
Suzuki Emblem (NLA) | 1 | $ 5.57 | ||
| 14 | 61400-98800-YR9 Engine Cover Set
SKU: 61400-98800-YR9 Weight: 2.500000 Brand: Price: $ 135.56 |
Engine Cover Set | 1 | $ 135.56 | Includes Ref# 11 | |
| 15 | 61453-98471 Port Engine Cover Stripe (NLA)
SKU: 61453-98471 Weight: 0.100000 Brand: Price: $ 6.87 |
Port Engine Cover Stripe (NLA) | 1 | $ 6.87 | ||
| 16 | 68111-01C20-C4Z Suzuki Emblem (NLA)
SKU: 68111-01C20-C4Z Weight: 0.060000 Brand: Price: $ 5.57 |
Suzuki Emblem (NLA) | 1 | $ 5.57 | ||
| 17 | 61445-98470 Output Decal (NLA)
SKU: 61445-98470 Weight: 0.060000 Brand: Price: $ 6.63 |
Output Decal (NLA) | 2 | $ 6.63 | ||
| 18 | 61581-98400 Safety Warning Mark (NLA)
SKU: 61581-98400 Weight: 0.100000 Brand: Price: $ 4.01 |
Safety Warning Mark (NLA) | 1 | $ 4.01 | ||
| 19 | 65893-92D01 Certification Label (NLA)
SKU: 65893-92D01 Weight: 0.100000 Brand: Price: $ 1.54 |
Certification Label (NLA) | 1 | $ 1.54 | ||
| 20 | 61422-98420-60K Front Emblem Mark
SKU: 61422-98420-60K Weight: 0.060000 Brand: Price: $ 10.73 |
Front Emblem Mark | 1 | $ 10.73 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
