Suzuki DT 2 Parts Listings 1987 to 1993

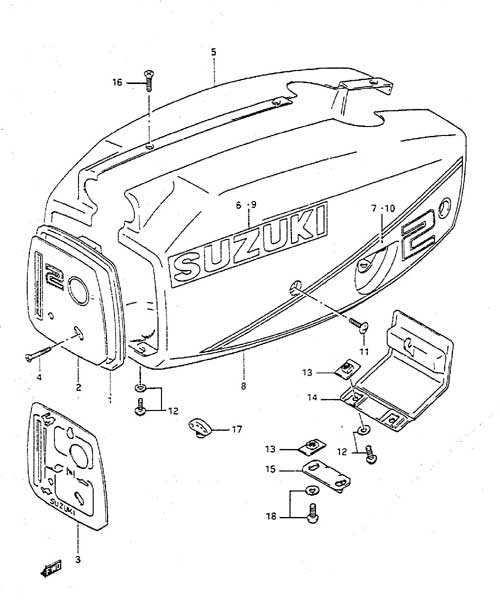

Fig. 15 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61420-98402 Engine Cover Front Emblem
SKU: 61420-98402 Weight: 0.160000 Brand: Price: $ 13.03 |
Engine Cover Front Emblem | 1 | $ 13.03 | ||
| 2 | 61422-98420-60K Front Emblem Mark
SKU: 61422-98420-60K Weight: 0.060000 Brand: Price: $ 10.73 |
Front Emblem Mark | 1 | $ 10.73 | 1987 to 1989 | |
| 3 | 61422-98420-60K Front Emblem Mark
SKU: 61422-98420-60K Weight: 0.060000 Brand: Price: $ 10.73 |
Front Emblem Mark | 1 | $ 10.73 | 1990 to 1993 | |
| 4 | 09126-04003 Screw (4x35)
SKU: 09126-04003 Weight: 0.200000 Brand: Price: $ 2.09 |
Screw (4x35) | 2 | $ 2.09 | ||
| 5-1 | 61461-98810-02M Starboard Engine Cover (NLA)
SKU: 61461-98810-02M Weight: 0.100000 Brand: Price: $ 40.07 |
Starboard Engine Cover (NLA) | 1 | $ 40.07 | 1987 | |
| 5-2 | 61461-98851-0EM Starboard Engine Cover (NLA)
SKU: 61461-98851-0EM Weight: 0.100000 Brand: Price: $ 47.65 |
Starboard Engine Cover (NLA) | 1 | $ 47.65 | 1988 to 1993 | |
| 6-1 | 68111-47C10-019 Suzuki Emblem
SKU: 68111-47C10-019 Weight: 0.060000 Brand: Price: $ 20.62 |
Suzuki Emblem | 1 | $ 20.62 | 1987 to 1988 | |
| 6-2 | 61441-98620 Suzuki Emblem (NLA)
SKU: 61441-98620 Weight: 0.200000 Brand: Price: $ 0.00 |
Suzuki Emblem (NLA) | 1 | $ 0.00 | 1989 to 1993 | |
| 7 | 61443-98460-70G Starboard Engine Cover Stripe (NLA)
SKU: 61443-98460-70G Weight: 0.100000 Brand: Price: $ 15.25 |
Starboard Engine Cover Stripe (NLA) | 1 | $ 15.25 | ||
| 8-1 | 61471-98810-02M Port Engine Cover (NLA)
SKU: 61471-98810-02M Weight: 0.100000 Brand: Price: $ 36.43 |
Port Engine Cover (NLA) | 1 | $ 36.43 | 1987 | |
| 8-2 | 61400-98800-YR9 Engine Cover Set
SKU: 61400-98800-YR9 Weight: 2.500000 Brand: Price: $ 135.56 |
Engine Cover Set | 1 | $ 135.56 | Includes Ref# 5-2 1988 to 1993 | |
| 9-1 | 68111-47C10-019 Suzuki Emblem
SKU: 68111-47C10-019 Weight: 0.060000 Brand: Price: $ 20.62 |
Suzuki Emblem | 1 | $ 20.62 | 1987 to 1988 | |
| 9-2 | 61441-98620 Suzuki Emblem (NLA)
SKU: 61441-98620 Weight: 0.200000 Brand: Price: $ 0.00 |
Suzuki Emblem (NLA) | 1 | $ 0.00 | 1989 to 1993 | |
| 10 | 61453-98460-70G Port Engine Cover Stripe (NLA)
SKU: 61453-98460-70G Weight: 0.060000 Brand: Price: $ 15.25 |
Port Engine Cover Stripe (NLA) | 1 | $ 15.25 | 1987 to 1993 | |
| 11 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 4 | $ 2.06 | ||
| 12 | 09136-05008 Screw (5x12)
SKU: 09136-05008 Weight: 0.060000 Brand: Price: $ 2.59 |
Screw (5x12) | 4 | $ 2.59 | ||
| 13 | 61490-98411 Engine Cover Plate
SKU: 61490-98411 Weight: 0.125000 Brand: Price: $ 3.21 |
Engine Cover Plate | 5 | $ 3.21 | ||
| 14 | 61481-98430-0EM Engine Cover Hinge
SKU: 61481-98430-0EM Weight: 0.125000 Brand: Price: $ 18.93 |
Engine Cover Hinge | 1 | $ 18.93 | ||
| 15 | 61485-98410 Engine Cover Hinge Spring (NLA)
SKU: 61485-98410 Weight: 0.060000 Brand: Price: $ 3.24 |
Engine Cover Hinge Spring (NLA) | 1 | $ 3.24 | ||
| 16 | 09126-05007 Screw (5x12)
SKU: 09126-05007 Weight: 0.060000 Brand: Price: $ 2.02 |
Screw (5x12) | 3 | $ 2.02 | ||
| 17 | 61521-98400 Shear Pin Holder (NLA)
SKU: 61521-98400 Weight: 0.100000 Brand: Price: $ 2.32 |
Shear Pin Holder (NLA) | 1 | $ 2.32 | ||
| 18 | 02142-05087 SCREW 5X8 CROSS
SKU: 02142-05087 Weight: 0.062500 Brand: Price: $ 1.43 |
SCREW 5X8 CROSS | 2 | $ 1.43 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
