Suzuki DT 2 Parts Listings 1986

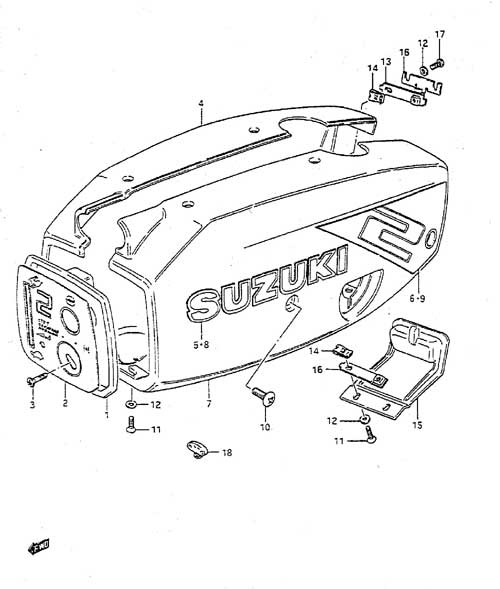

Fig. 14 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61420-98402 Engine Cover Front Emblem
SKU: 61420-98402 Weight: 0.160000 Brand: Price: $ 13.03 |
Engine Cover Front Emblem | 1 | $ 13.03 | ||
| 2 | 61422-98420-60K Front Emblem Mark
SKU: 61422-98420-60K Weight: 0.060000 Brand: Price: $ 10.73 |
Front Emblem Mark | 1 | $ 10.73 | ||
| 3 | 09126-04003 Screw (4x35)
SKU: 09126-04003 Weight: 0.200000 Brand: Price: $ 2.09 |
Screw (4x35) | 2 | $ 2.09 | ||
| 4 | 61461-98430-02M Starboard Engine Cover (NLA)
SKU: 61461-98430-02M Weight: 0.100000 Brand: Price: $ 24.80 |
Starboard Engine Cover (NLA) | 1 | $ 24.80 | ||
| 5 | 68111-47C10-019 Suzuki Emblem
SKU: 68111-47C10-019 Weight: 0.060000 Brand: Price: $ 20.62 |
Suzuki Emblem | 1 | $ 20.62 | ||
| 6 | 61443-98460-70G Starboard Engine Cover Stripe (NLA)
SKU: 61443-98460-70G Weight: 0.100000 Brand: Price: $ 15.25 |
Starboard Engine Cover Stripe (NLA) | 1 | $ 15.25 | ||
| 7 | 61471-98430-02M Port Engine Cover (NLA)
SKU: 61471-98430-02M Weight: 0.100000 Brand: Price: $ 23.36 |
Port Engine Cover (NLA) | 1 | $ 23.36 | ||
| 8 | 68111-47C10-019 Suzuki Emblem
SKU: 68111-47C10-019 Weight: 0.060000 Brand: Price: $ 20.62 |
Suzuki Emblem | 1 | $ 20.62 | ||
| 9 | 61453-98460-70G Port Engine Cover Stripe (NLA)
SKU: 61453-98460-70G Weight: 0.060000 Brand: Price: $ 15.25 |
Port Engine Cover Stripe (NLA) | 1 | $ 15.25 | ||
| 10 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 4 | $ 2.06 | ||
| 11 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 4 | $ 1.82 | ||
| 12 | 09160-05032 Washer (NLA)
SKU: 09160-05032 Weight: 0.100000 Brand: Price: $ 0.94 |
Washer (NLA) | 4 | $ 0.94 | ||
| 13 | 61490-98400 Engine Cover Plate
SKU: 61490-98400 Weight: 0.060000 Brand: Price: $ 4.55 |
Engine Cover Plate | 4 | $ 4.55 | ||
| 14 | 09148-05011 Nut
SKU: 09148-05011 Weight: 0.060000 Brand: Price: $ 1.54 |
Nut | 4 | $ 1.54 | ||
| 15 | 61481-98410 Engine Cover Hinge
SKU: 61481-98410 Weight: 0.060000 Brand: Price: $ 8.47 |
Engine Cover Hinge | 1 | $ 8.47 | ||
| 16 | 61485-98401 Engine Cover Hinge Spring (NLA)
SKU: 61485-98401 Weight: 0.060000 Brand: Price: $ 1.80 |
Engine Cover Hinge Spring (NLA) | 1 | $ 1.80 | ||
| 17 | 09126-05003 Screw (5x12)
SKU: 09126-05003 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (5x12) | 6 | $ 2.06 | ||
| 18 | 61521-98400 Shear Pin Holder (NLA)
SKU: 61521-98400 Weight: 0.100000 Brand: Price: $ 2.32 |
Shear Pin Holder (NLA) | 1 | $ 2.32 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
