Suzuki DT 2 Parts Listings 1986 to 1997

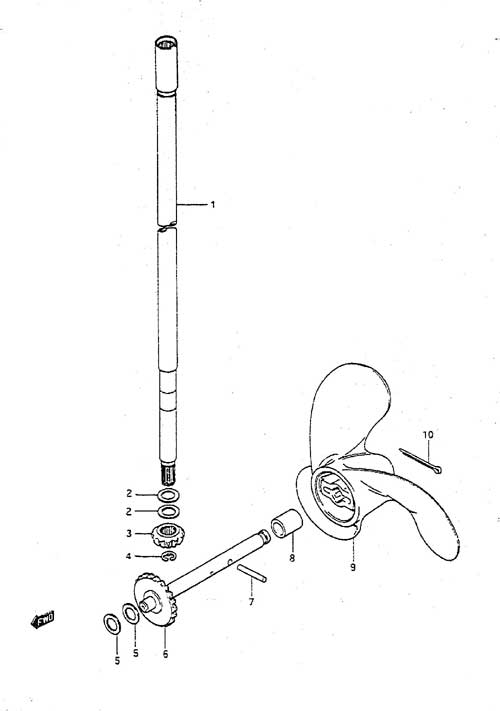

Fig. 13 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 57110-98400 Drive Shaft (NLA)
SKU: 57110-98400 Weight: 10.000000 Brand: Price: $ 79.35 |
Drive Shaft (NLA) | 1 | $ 79.35 | w/Transom (S) | |
| 2-1 | 09181-10130 Shim (0.5) (NLA)
SKU: 09181-10130 Weight: 0.060000 Brand: Price: $ 1.52 |
Shim (0.5) (NLA) | 1 | $ 1.52 | DT 2 | |
| 2-2 | 09181-10130 Shim (0.5) (NLA)
SKU: 09181-10130 Weight: 0.060000 Brand: Price: $ 1.52 |
Shim (0.5) (NLA) | 1 | $ 1.52 | DT 2.2 | |
| 2-3 | 09181-10009 Shim (0.40) (NLA)
SKU: 09181-10009 Weight: 0.060000 Brand: Price: $ 0.81 |
Shim (0.40) (NLA) | 1 | $ 0.81 | ||
| 2-4 | 09181-10008 Shim (0.30) (NLA)
SKU: 09181-10008 Weight: 0.060000 Brand: Price: $ 0.82 |
Shim (0.30) (NLA) | 1 | $ 0.82 | ||
| 3 | 57311-98402 Pinion Gear (NLA)
SKU: 57311-98402 Weight: 6.000000 Brand: Price: $ 18.11 |
Pinion Gear (NLA) | 1 | $ 18.11 | ||
| 4 | 08332-1106A E Ring
SKU: 08332-1106A Weight: 0.060000 Brand: Price: $ 1.44 |
E Ring | 1 | $ 1.44 | ||
| 5-1 | 09181-10130 Shim (0.5) (NLA)
SKU: 09181-10130 Weight: 0.060000 Brand: Price: $ 1.52 |
Shim (0.5) (NLA) | 1 | $ 1.52 | ||
| 5-2 | 09181-10009 Shim (0.40) (NLA)
SKU: 09181-10009 Weight: 0.060000 Brand: Price: $ 0.81 |
Shim (0.40) (NLA) | 1 | $ 0.81 | ||
| 5-3 | 09181-10008 Shim (0.30) (NLA)
SKU: 09181-10008 Weight: 0.060000 Brand: Price: $ 0.82 |
Shim (0.30) (NLA) | 1 | $ 0.82 | ||
| 6 | 57610-98403 Propeller Shaft Assembly
SKU: 57610-98403 Weight: 1.000000 Brand: Price: $ 90.78 |
Propeller Shaft Assembly | 1 | $ 90.78 | ||
| 7 | 09202-04002 Shear Pin
SKU: 09202-04002 Weight: 0.060000 Brand: Price: $ 2.12 |
Shear Pin | 1 | $ 2.12 | ||
| 8 | 09180-10138 Spacer
SKU: 09180-10138 Weight: 0.060000 Brand: Price: $ 3.33 |
Spacer | 1 | $ 3.33 | ||
| 9-1 | 58111-98402-019 A510 Propeller 3x188x135 (NLA)
SKU: 58111-98402-019 Weight: 0.720000 Brand: Price: $ 82.48 |
A510 Propeller 3x188x135 (NLA) | 1 | $ 82.48 | ||
| 9-2 | 58111-98452-019 A500 Propeller 3x188x122
SKU: 58111-98452-019 Weight: 0.680000 Brand: Price: $ 97.41 |
A500 Propeller 3x188x122 | 1 | $ 97.41 | ||
| 9-3 | 58111-98465-019 A400 Propeller (3x188x115)
SKU: 58111-98465-019 Weight: 0.740000 Brand: Price: $ 97.41 |
A400 Propeller (3x188x115) | 1 | $ 97.41 | ||
| 10 | 09204-02001 Cotter Pin
SKU: 09204-02001 Weight: 0.060000 Brand: Price: $ 1.56 |
Cotter Pin | 1 | $ 1.56 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
