Suzuki DT 2 Parts Listings 1990 to 1997

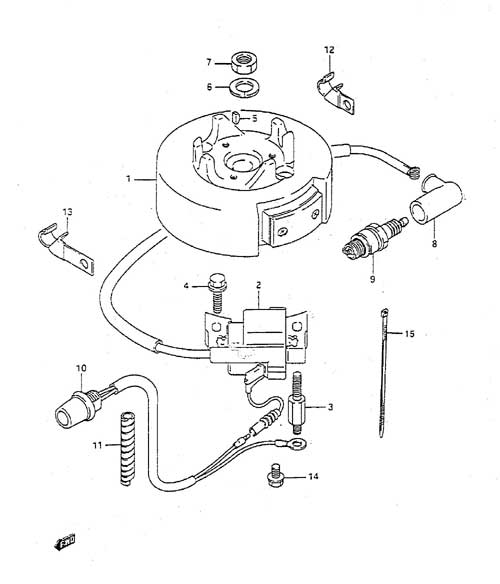

Fig. 10 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 32102-98440 Flywheel (NLA)
SKU: 32102-98440 Weight: 0.100000 Brand: Price: $ 86.28 |
Flywheel (NLA) | 1 | $ 86.28 | DT 2 S/N 016974 Older | |
| 1-2 | 32102-98441 Flywheel (NLA)
SKU: 32102-98441 Weight: 0.100000 Brand: Price: $ 102.00 |
Flywheel (NLA) | 1 | $ 102.00 | DT 2 S/N 016975 Newer | |
| 1-3 | 32102-94E00 Flywheel (NLA)
SKU: 32102-94E00 Weight: 10.000000 Brand: Price: $ 152.32 |
Flywheel (NLA) | 1 | $ 152.32 | DT 2.2 | |
| 2 | 33410-98440 Ignition Coil Assembly (NLA)
SKU: 33410-98440 Weight: 0.620000 Brand: Price: $ 116.61 |
Ignition Coil Assembly (NLA) | 1 | $ 116.61 | ||
| 3 | 09108-06110 Stud Bolt (NLA)
SKU: 09108-06110 Weight: 0.100000 Brand: Price: $ 6.24 |
Stud Bolt (NLA) | 1 | $ 6.24 | ||
| 4 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 1 | $ 2.45 | ||
| 5 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 2.02 |
Woodruff Key | 1 | $ 2.02 | ||
| 6 | 08321-0112A Lock Washer
SKU: 08321-0112A Weight: 0.200000 Brand: Price: $ 2.03 |
Lock Washer | 1 | $ 2.03 | ||
| 7 | 09140-12038 Nut
SKU: 09140-12038 Weight: 0.060000 Brand: Price: $ 3.42 |
Nut | 1 | $ 3.42 | ||
| 8-1 | 33510-95520 Spark Plug Cap
SKU: 33510-95520 Weight: 0.060000 Brand: Price: $ 19.28 |
Spark Plug Cap | 1 | $ 19.28 | DT 2 | |
| 8-2 | 33510-98601 Spark Plug Cap
SKU: 33510-98601 Weight: 0.060000 Brand: Price: $ 24.03 |
Spark Plug Cap | 1 | $ 24.03 | DT 2.2 | |
| 9-1 | 09482-00282 NGK B5HS Spark Plug
SKU: 09482-00282 Weight: 0.187500 Brand: Price: $ 3.22 |
NGK B5HS Spark Plug | 1 | $ 3.22 | 1990 to 1992 | |
| 9-2 | 09482-00143 NGK BR5HS Spark Plug
SKU: 09482-00143 Weight: 0.187500 Brand: Price: $ 3.85 |
NGK BR5HS Spark Plug | 1 | $ 3.85 | 1993 to 1997 | |
| 10 | 37800-98423 Engine Stop Switch Assembly
SKU: 37800-98423 Weight: 0.250000 Brand: Price: $ 29.85 |
Engine Stop Switch Assembly | 1 | $ 29.85 | ||
| 11 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.38 |
Tube (6x8x250) | 1 | $ 7.38 | L:250->50 | |
| 12 | 09403-12308 Clamp (NLA)
SKU: 09403-12308 Weight: 0.100000 Brand: Price: $ 2.03 |
Clamp (NLA) | 1 | $ 2.03 | ||
| 13 | 09403-10312 Clamp (NLA)
SKU: 09403-10312 Weight: 0.100000 Brand: Price: $ 1.40 |
Clamp (NLA) | 1 | $ 1.40 | ||
| 14 | 01550-06107 PLUG
SKU: 01550-06107 Weight: 0.125000 Brand: Price: $ 2.55 |
PLUG | 1 | $ 2.55 | ||
| 15 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.38 |
Clamp (L:125) | 1 | $ 2.38 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
