Suzuki DT 2 Parts Listings 1990 to 1997

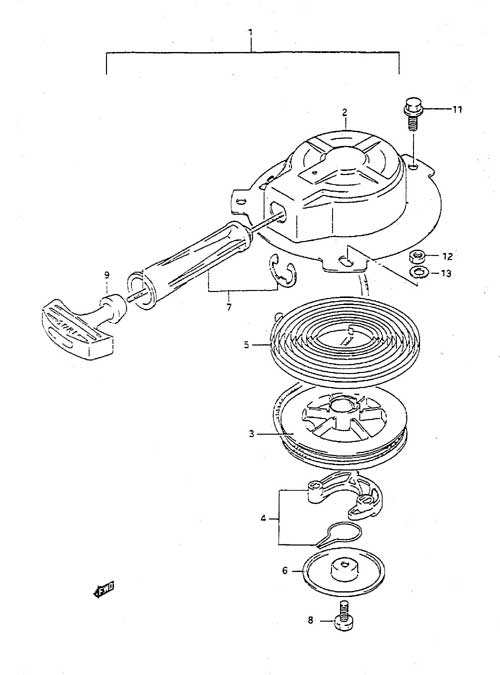

Fig. 8 - Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 18100-98410 Recoil Starter Assembly
SKU: 18100-98410 Weight: 1.200000 Brand: Price: $ 171.74 |
Recoil Starter Assembly | 1 | $ 171.74 | ||
| 2 | 18110-98410 Recoil Starter Case (NLA)
SKU: 18110-98410 Weight: 0.600000 Brand: Price: $ 34.86 |
Recoil Starter Case (NLA) | 1 | $ 34.86 | ||
| 3 | 18121-98400 Starter Reel (NLA)
SKU: 18121-98400 Weight: 0.100000 Brand: Price: $ 33.25 |
Starter Reel (NLA) | 1 | $ 33.25 | ||
| 4 | 18130-98400 Ratchet Set (NLA)
SKU: 18130-98400 Weight: 0.100000 Brand: Price: $ 5.59 |
Ratchet Set (NLA) | 1 | $ 5.59 | ||
| 5 | 18142-87600 Spring (NLA)
SKU: 18142-87600 Weight: 0.100000 Brand: Price: $ 16.25 |
Spring (NLA) | 1 | $ 16.25 | ||
| 6 | 18151-98400 Plate (NLA)
SKU: 18151-98400 Weight: 0.100000 Brand: Price: $ 6.62 |
Plate (NLA) | 1 | $ 6.62 | ||
| 7 | 18190-98400 Guide Set (NLA)
SKU: 18190-98400 Weight: 0.100000 Brand: Price: $ 14.28 |
Guide Set (NLA) | 1 | $ 14.28 | ||
| 8 | 18332-98400 Pivot Bolt (NLA)
SKU: 18332-98400 Weight: 0.100000 Brand: Price: $ 0.62 |
Pivot Bolt (NLA) | 1 | $ 0.62 | ||
| 9 | 18210-98400 Starter Grip
SKU: 18210-98400 Weight: 0.250000 Brand: Price: $ 8.89 |
Starter Grip | 1 | $ 8.89 | ||
| 11-1 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | 1990 to 1994 | |
| 11-2 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | 1994 to 1997 | |
| 12-1 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | 1990 to 1993 | |
| 12-2 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 1 | $ 2.25 | 1994 to 1997 | |
| 13 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | 1990 to 1993 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
