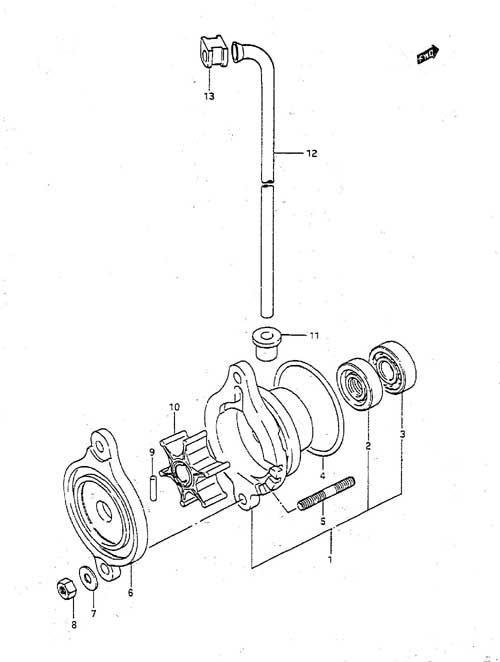

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 17410-98403-0ED Water Pump Case (NLA) SKU: 17410-98403-0ED Weight: 0.300000 Brand: Price: $ 66.31 |
Water Pump Case (NLA) | 1 | $ 66.31 | ||
2 | 09289-10005 Oil Seal SKU: 09289-10005 Weight: 0.060000 Brand: Price: $ 9.04 |
Oil Seal | 1 | $ 9.04 | ||
3 | 09262-10015 B1 10x26x8 Bearing SKU: 09262-10015 Weight: 0.060000 Brand: Price: $ 14.73 |
B1 10x26x8 Bearing | 1 | $ 14.73 | ||
4 | 09280-48002 O-Ring SKU: 09280-48002 Weight: 0.060000 Brand: Price: $ 2.12 |
O-Ring | 1 | $ 2.12 | ||
5 | 09108-06063 Stud Bolt (6x12) SKU: 09108-06063 Weight: 0.060000 Brand: Price: $ 3.00 |
Stud Bolt (6x12) | 2 | $ 3.00 | ||
6 | 17471-98400-0ED Water Pump Case Cover (NLA) SKU: 17471-98400-0ED Weight: 0.100000 Brand: Price: $ 20.65 |
Water Pump Case Cover (NLA) | 1 | $ 20.65 | ||
7 | 09160-06082 Washer (6.5x13x1.0) SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | ||
8 | 09140-06020 Nut (6mm) SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
9 | 09202-02006 Pin SKU: 09202-02006 Weight: 0.060000 Brand: Price: $ 1.30 |
Pin | 1 | $ 1.30 | ||
10 | 17461-985M0 Water Pump Impeller SKU: 17461-985M0 Weight: 0.060000 Brand: Price: $ 21.72 |
Water Pump Impeller | 1 | $ 21.72 | ||
11 | 09320-06028 Bushing SKU: 09320-06028 Weight: 0.060000 Brand: Price: $ 1.48 |
Bushing | 1 | $ 1.48 | ||
12 | 17561-98402 Water Tube SKU: 17561-98402 Weight: 0.120000 Brand: Price: $ 15.99 |
Water Tube | 1 | $ 15.99 | ||
13 | 09309-06005 Grommet SKU: 09309-06005 Weight: 0.060000 Brand: Price: $ 1.78 |
Grommet | 1 | $ 1.78 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
