Suzuki DT 2 Parts Listings 1986 to 1989

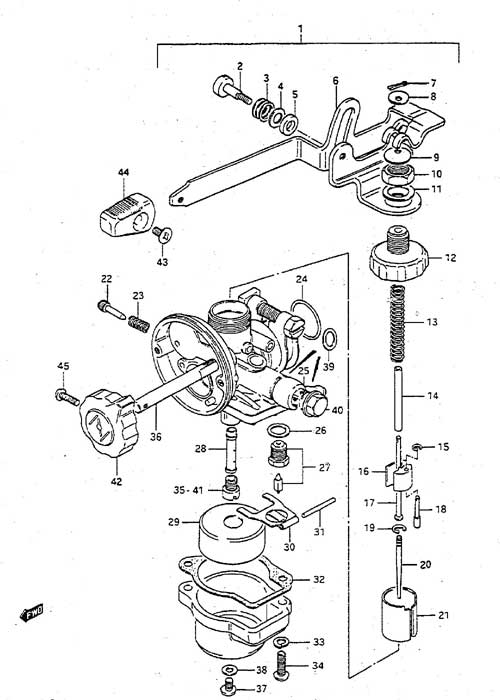

Fig. 4 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-984F1 Carburetor Assembly (NLA)
SKU: 13200-984F1 Weight: 1.020000 Brand: Price: $ 141.09 |
Carburetor Assembly (NLA) | 1 | $ 141.09 | ||
| 2 | 13433-98410 Screw (NLA)
SKU: 13433-98410 Weight: 0.100000 Brand: Price: $ 2.53 |
Screw (NLA) | 1 | $ 2.53 | ||
| 3 | 13426-98410 Lock Washer (NLA)
SKU: 13426-98410 Weight: 0.100000 Brand: Price: $ 3.01 |
Lock Washer (NLA) | 1 | $ 3.01 | ||
| 4 | 13615-98412 Washer (NLA)
SKU: 13615-98412 Weight: 0.100000 Brand: Price: $ 2.23 |
Washer (NLA) | 1 | $ 2.23 | ||
| 5 | 13432-33110 Washer
SKU: 13432-33110 Weight: 0.060000 Brand: Price: $ 3.98 |
Washer | 1 | $ 3.98 | ||
| 6 | 13564-98411 Throttle Lever (NLA)
SKU: 13564-98411 Weight: 0.100000 Brand: Price: $ 12.37 |
Throttle Lever (NLA) | 1 | $ 12.37 | ||
| 7 | 04111-1210A PIN
SKU: 04111-1210A Weight: 0.060000 Brand: Price: $ 1.29 |
PIN | 1 | $ 1.29 | ||
| 8 | 13557-98410 Plate (NLA)
SKU: 13557-98410 Weight: 0.100000 Brand: Price: $ 2.27 |
Plate (NLA) | 1 | $ 2.27 | ||
| 9 | 13557-98430 Plate (NLA)
SKU: 13557-98430 Weight: 0.100000 Brand: Price: $ 2.41 |
Plate (NLA) | 1 | $ 2.41 | ||
| 10 | 13567-98412 Nut (NLA)
SKU: 13567-98412 Weight: 0.100000 Brand: Price: $ 3.07 |
Nut (NLA) | 1 | $ 3.07 | ||
| 11 | 13589-98411 Washer (NLA)
SKU: 13589-98411 Weight: 0.100000 Brand: Price: $ 1.80 |
Washer (NLA) | 1 | $ 1.80 | ||
| 12 | 13265-98411 Carburetor Top (NLA)
SKU: 13265-98411 Weight: 0.100000 Brand: Price: $ 10.05 |
Carburetor Top (NLA) | 1 | $ 10.05 | ||
| 13 | 13573-98411 Valve Spring (NLA)
SKU: 13573-98411 Weight: 0.100000 Brand: Price: $ 2.88 |
Valve Spring (NLA) | 1 | $ 2.88 | ||
| 14 | 13552-98411 Throttle Rod (NLA)
SKU: 13552-98411 Weight: 0.100000 Brand: Price: $ 2.32 |
Throttle Rod (NLA) | 1 | $ 2.32 | ||
| 15 | 13533-98410 E Ring
SKU: 13533-98410 Weight: 0.100000 Brand: Price: $ 4.78 |
E Ring | 1 | $ 4.78 | ||
| 16 | 13545-98410 Spring Seat (NLA)
SKU: 13545-98410 Weight: 0.100000 Brand: Price: $ 5.18 |
Spring Seat (NLA) | 1 | $ 5.18 | ||
| 17 | 13552-98410 Throttle Rod (NLA)
SKU: 13552-98410 Weight: 0.100000 Brand: Price: $ 2.32 |
Throttle Rod (NLA) | 1 | $ 2.32 | ||
| 18 | 13563-98410 Pin (NLA)
SKU: 13563-98410 Weight: 0.062500 Brand: Price: $ 4.18 |
Pin (NLA) | 1 | $ 4.18 | ||
| 19 | 13394-40D00 Needle Clip
SKU: 13394-40D00 Weight: 0.100000 Brand: Price: $ 4.87 |
Needle Clip | 1 | $ 4.87 | ||
| 20 | 13383-98410 Jet Needle
SKU: 13383-98410 Weight: 0.100000 Brand: Price: $ 6.95 |
Jet Needle | 1 | $ 6.95 | ||
| 21 | 13551-98430 Throttle Valve (NLA)
SKU: 13551-98430 Weight: 0.100000 Brand: Price: $ 17.49 |
Throttle Valve (NLA) | 1 | $ 17.49 | ||
| 22 | 13267-01010 Throttle Stop Screw
SKU: 13267-01010 Weight: 0.060000 Brand: Price: $ 6.95 |
Throttle Stop Screw | 1 | $ 6.95 | ||
| 23 | 13268-01010 Stop Screw Spring
SKU: 13268-01010 Weight: 0.060000 Brand: Price: $ 4.74 |
Stop Screw Spring | 1 | $ 4.74 | ||
| 24 | 09280-15024 O RING(D:1.9,ID
SKU: 09280-15024 Weight: 0.000000 Brand: Price: $ 3.12 |
O RING(D:1.9,ID | 1 | $ 3.12 | ||
| 25 | 13376-98400 Carburetor Filter (NLA)
SKU: 13376-98400 Weight: 0.060000 Brand: Price: $ 2.86 |
Carburetor Filter (NLA) | 1 | $ 2.86 | ||
| 26 | 13392-01010 Valve Seat Gasket
SKU: 13392-01010 Weight: 0.060000 Brand: Price: $ 1.93 |
Valve Seat Gasket | 1 | $ 1.93 | ||
| 27 | 13370-23010 Needle Valve
SKU: 13370-23010 Weight: 0.060000 Brand: Price: $ 51.93 |
Needle Valve | 1 | $ 51.93 | ||
| 28 | 09494-00179 Needle Jet
SKU: 09494-00179 Weight: 0.060000 Brand: Price: $ 16.40 |
Needle Jet | 1 | $ 16.40 | ||
| 29 | 13252-98430 Float
SKU: 13252-98430 Weight: 0.060000 Brand: Price: $ 17.33 |
Float | 1 | $ 17.33 | ||
| 30 | 13253-98430 Float Arm
SKU: 13253-98430 Weight: 0.060000 Brand: Price: $ 6.52 |
Float Arm | 1 | $ 6.52 | ||
| 31 | 13254-98410 Float Pin
SKU: 13254-98410 Weight: 0.060000 Brand: Price: $ 2.49 |
Float Pin | 1 | $ 2.49 | ||
| 32 | 13251-98421 Float Chamber Gasket
SKU: 13251-98421 Weight: 0.060000 Brand: Price: $ 5.97 |
Float Chamber Gasket | 1 | $ 5.97 | ||
| 33 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 34 | 02112-0416A SCREW
SKU: 02112-0416A Weight: 0.125000 Brand: Price: $ 1.24 |
SCREW | 2 | $ 1.24 | ||
| 35 | 09491-90006 Main Jet #90
SKU: 09491-90006 Weight: 0.060000 Brand: Price: $ 6.95 |
Main Jet #90 | 1 | $ 6.95 | ||
| 36 | 13586-98410 Choke Shaft
SKU: 13586-98410 Weight: 0.060000 Brand: Price: $ 16.73 |
Choke Shaft | 1 | $ 16.73 | ||
| 37 | 09125-05122 Screw
SKU: 09125-05122 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw | 1 | $ 2.06 | ||
| 38 | 13523-46110 Drain Screw Gasket
SKU: 13523-46110 Weight: 0.060000 Brand: Price: $ 2.82 |
Drain Screw Gasket | 1 | $ 2.82 | ||
| 39 | 13292-98410 Washer (NLA)
SKU: 13292-98410 Weight: 0.060000 Brand: Price: $ 1.46 |
Washer (NLA) | 2 | $ 1.46 | ||
| 40 | 13275-98411 Bolt (NLA)
SKU: 13275-98411 Weight: 0.100000 Brand: Price: $ 3.75 |
Bolt (NLA) | 1 | $ 3.75 | ||
| 41-1 | 09491-85005 Main Jet #85 (NLA)
SKU: 09491-85005 Weight: 0.100000 Brand: Price: $ 3.66 |
Main Jet #85 (NLA) | 1 | $ 3.66 | Optional | |
| 41-2 | 09491-90006 Main Jet #90
SKU: 09491-90006 Weight: 0.060000 Brand: Price: $ 6.95 |
Main Jet #90 | 1 | $ 6.95 | Optional | |
| 41-3 | 09491-95004 Main Jet #95 (NLA)
SKU: 09491-95004 Weight: 0.100000 Brand: Price: $ 6.06 |
Main Jet #95 (NLA) | 1 | $ 6.06 | Optional | |
| 41-4 | 09491-20013 Main Jet #100 (NLA)
SKU: 09491-20013 Weight: 0.100000 Brand: Price: $ 3.78 |
Main Jet #100 (NLA) | 1 | $ 3.78 | Optional | |
| 42 | 13631-98410 Choke Knob
SKU: 13631-98410 Weight: 0.060000 Brand: Price: $ 5.55 |
Choke Knob | 1 | $ 5.55 | ||
| 43 | 02122-03067 SCREW
SKU: 02122-03067 Weight: 0.060000 Brand: Price: $ 1.80 |
SCREW | 1 | $ 1.80 | ||
| 44 | 88851-64001 Throttle Link Knob
SKU: 88851-64001 Weight: 0.060000 Brand: Price: $ 4.93 |
Throttle Link Knob | 1 | $ 4.93 | ||
| 45 | 02112-03107 SCREW
SKU: 02112-03107 Weight: 0.060000 Brand: Price: $ 1.34 |
SCREW | 1 | $ 1.34 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
