Suzuki DT 2 Parts Listings 1986 to 1997

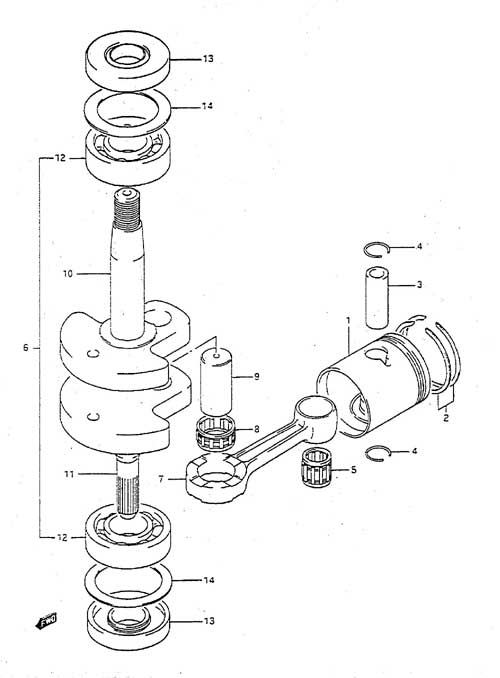

Fig. 3 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 12110-98402 Piston (NLA)
SKU: 12110-98402 Weight: 0.200000 Brand: Price: $ 46.29 |
Piston (NLA) | 1 | $ 46.29 | DT 2 | |
| 1-2 | 12110-94D00 Piston (NLA)
SKU: 12110-94D00 Weight: 0.100000 Brand: Price: $ 25.19 |
Piston (NLA) | 1 | $ 25.19 | DT 2.2 | |
| 1-3 | 12100-98402-025 Piston & Ring Set (OS:0.25) (NLA)
SKU: 12100-98402-025 Weight: 0.170000 Brand: Price: $ 61.59 |
Piston & Ring Set (OS:0.25) (NLA) | 1 | $ 61.59 | Opt: DT 2 | |
| 1-4 | 12100-94D00-025 Piston & Ring Set (OS:0.25) (NLA)
SKU: 12100-94D00-025 Weight: 0.100000 Brand: Price: $ 42.71 |
Piston & Ring Set (OS:0.25) (NLA) | 1 | $ 42.71 | Opt: DT 2.2 | |
| 1-5 | 12100-98402-050 Piston & Ring Set (OS:0.50) (NLA)
SKU: 12100-98402-050 Weight: 1.000000 Brand: Price: $ 43.96 |
Piston & Ring Set (OS:0.50) (NLA) | 1 | $ 43.96 | Opt: DT 2 | |
| 1-6 | 12100-94D00-050 Piston & Ring Set (OS:0.50) (NLA)
SKU: 12100-94D00-050 Weight: 0.100000 Brand: Price: $ 42.71 |
Piston & Ring Set (OS:0.50) (NLA) | 1 | $ 42.71 | Opt: DT 2.2 | |
| 2-1 | 12140-98400 Piston Ring Set
SKU: 12140-98400 Weight: 0.060000 Brand: Price: $ 27.42 |
Piston Ring Set | 1 | $ 27.42 | DT 2 | |
| 2-2 | 12140-36232 Piston Ring Set
SKU: 12140-36232 Weight: 0.060000 Brand: Price: $ 34.65 |
Piston Ring Set | 1 | $ 34.65 | DT 2.2 | |
| 3 | 12151-04700 Piston Pin
SKU: 12151-04700 Weight: 0.200000 Brand: Price: $ 7.63 |
Piston Pin | 1 | $ 7.63 | ||
| 4 | 09381-12001 Piston Pin Circlip
SKU: 09381-12001 Weight: 0.060000 Brand: Price: $ 1.44 |
Piston Pin Circlip | 2 | $ 1.44 | ||
| 5 | 09263-12023 Bearing (12x16x16)
SKU: 09263-12023 Weight: 0.060000 Brand: Price: $ 10.36 |
Bearing (12x16x16) | 1 | $ 10.36 | ||
| 6 | 12200-98404 Crankshaft Assembly (NLA)
SKU: 12200-98404 Weight: 1.800000 Brand: Price: $ 143.32 |
Crankshaft Assembly (NLA) | 1 | $ 143.32 | ||
| 7 | 12161-98400 Connecting Rod (NLA)
SKU: 12161-98400 Weight: 0.100000 Brand: Price: $ 24.73 |
Connecting Rod (NLA) | 1 | $ 24.73 | ||
| 8 | 09263-15014 RC 15x21x10 Bearing
SKU: 09263-15014 Weight: 0.060000 Brand: Price: $ 12.18 |
RC 15x21x10 Bearing | 1 | $ 12.18 | ||
| 9 | 12211-04000 Crankshaft Pin
SKU: 12211-04000 Weight: 0.100000 Brand: Price: $ 15.07 |
Crankshaft Pin | 1 | $ 15.07 | ||
| 10 | 12221-98402 Upper Crankshaft (NLA)
SKU: 12221-98402 Weight: 0.100000 Brand: Price: $ 39.88 |
Upper Crankshaft (NLA) | 1 | $ 39.88 | ||
| 12 | 09262-17023 Bearing (17x40x12)
SKU: 09262-17023 Weight: 0.200000 Brand: Price: $ 17.05 |
Bearing (17x40x12) | 2 | $ 17.05 | ||
| 13 | 09283-17002 Oil Seal
SKU: 09283-17002 Weight: 0.060000 Brand: Price: $ 5.01 |
Oil Seal | 2 | $ 5.01 | ||
| 14 | 08211-32441 Thrust Washer
SKU: 08211-32441 Weight: 0.060000 Brand: Price: $ 3.47 |
Thrust Washer | 2 | $ 3.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
