Suzuki DT 2 Parts Listings 1986 to 1989

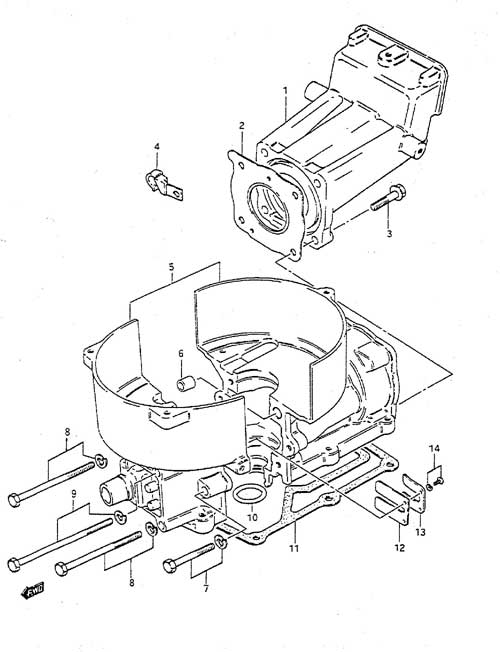

Fig. 1 - Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11111-98421-0ED Cylinder Head (NLA)
SKU: 11111-98421-0ED Weight: 1.000000 Brand: Price: $ 52.64 |
Cylinder Head (NLA) | 1 | $ 52.64 | ||
| 2 | 11141-98411 Cylinder Head Gasket
SKU: 11141-98411 Weight: 0.060000 Brand: Price: $ 16.29 |
Cylinder Head Gasket | 1 | $ 16.29 | ||
| 3 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 4 | $ 2.74 | ||
| 4 | 09403-10312 Clamp (NLA)
SKU: 09403-10312 Weight: 0.100000 Brand: Price: $ 1.40 |
Clamp (NLA) | 1 | $ 1.40 | ||
| 5-1 | 11301-98403-02M Cylinder/Crankcase Assembly (NLA)
SKU: 11301-98403-02M Weight: 0.100000 Brand: Price: $ 109.61 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 109.61 | 1986 to 1988 | |
| 5-2 | 11301-98404-0ED Cylinder/Crankcase Assembly (NLA)
SKU: 11301-98404-0ED Weight: 50.000000 Brand: Price: $ 279.13 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 279.13 | 1989 | |
| 6 | 04211-09109 DOWEL PIN
SKU: 04211-09109 Weight: 0.060000 Brand: Price: $ 1.66 |
DOWEL PIN | 2 | $ 1.66 | ||
| 7 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 8 | 01550-06657 BOLT
SKU: 01550-06657 Weight: 0.060000 Brand: Price: $ 3.61 |
BOLT | 2 | $ 3.61 | ||
| 9 | 01550-06707 BOLT
SKU: 01550-06707 Weight: 0.060000 Brand: Price: $ 3.72 |
BOLT | 2 | $ 3.72 | ||
| 10 | 09280-20002 O-Ring
SKU: 09280-20002 Weight: 0.060000 Brand: Price: $ 1.94 |
O-Ring | 1 | $ 1.94 | ||
| 11 | 52113-98411 Drive Shaft Housing Gasket
SKU: 52113-98411 Weight: 0.060000 Brand: Price: $ 17.65 |
Drive Shaft Housing Gasket | 1 | $ 17.65 | ||
| 12 | 13153-19012 Reed Valve
SKU: 13153-19012 Weight: 0.100000 Brand: Price: $ 7.82 |
Reed Valve | 1 | $ 7.82 | ||
| 13 | 13152-19010 Reed Valve Stopper (NLA)
SKU: 13152-19010 Weight: 0.060000 Brand: Price: $ 3.80 |
Reed Valve Stopper (NLA) | 1 | $ 3.80 | ||
| 14 | 02112-3308A SCREW
SKU: 02112-3308A Weight: 0.060000 Brand: Price: $ 1.93 |
SCREW | 2 | $ 1.93 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
