Suzuki DT 2 Parts Listings 1983 to 1985

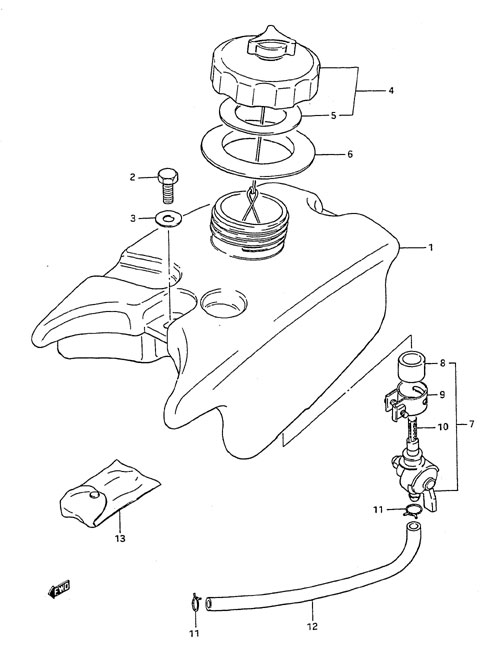

Fig. 11 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65111-98403 Fuel Tank
SKU: 65111-98403 Weight: 1.000000 Brand: Price: $ 36.28 |
Fuel Tank | 1 | $ 36.28 | ||
| 2 | 01500-06167 BOLT
SKU: 01500-06167 Weight: 0.125000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 3 | 09160-06052 Washer
SKU: 09160-06052 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 2 | $ 1.44 | ||
| 4 | 65510-91J02 Fuel Tank Cap Assembly
SKU: 65510-91J02 Weight: 0.120000 Brand: Price: $ 29.78 |
Fuel Tank Cap Assembly | 1 | $ 29.78 | ||
| 5 | 09168-32003 Tank Cap Gasket
SKU: 09168-32003 Weight: 0.060000 Brand: Price: $ 2.05 |
Tank Cap Gasket | 1 | $ 2.05 | ||
| 6 | 65281-98400 Fuel Tank Grommet
SKU: 65281-98400 Weight: 0.060000 Brand: Price: $ 4.05 |
Fuel Tank Grommet | 1 | $ 4.05 | ||
| 7 | 66100-98402 Fuel Cock Assembly
SKU: 66100-98402 Weight: 0.250000 Brand: Price: $ 19.45 |
Fuel Cock Assembly | 1 | $ 19.45 | ||
| 8 | 66142-98401 Replaced by 66142-98402
SKU: 66142-98401 Weight: 0.060000 Brand: Price: $ 2.80 |
Replaced by 66142-98402 | 1 | $ 2.80 | ||
| 9 | 66165-98401 Fuel Cock Clamp (NLA)
SKU: 66165-98401 Weight: 0.060000 Brand: Price: $ 5.64 |
Fuel Cock Clamp (NLA) | 1 | $ 5.64 | ||
| 10 | 66152-98400 Fuel Strainer
SKU: 66152-98400 Weight: 0.060000 Brand: Price: $ 4.05 |
Fuel Strainer | 1 | $ 4.05 | ||
| 11 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 2 | $ 1.86 | ||
| 12 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->215 | |
| 13 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
