Suzuki DT 2 Parts Listings 1983 to 1985

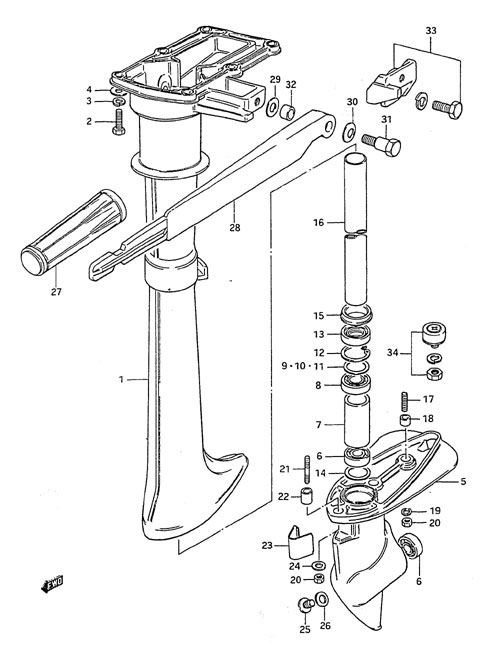

Fig. 7 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 52111-98420-0ED Drive Shaft Housing (NLA)
SKU: 52111-98420-0ED Weight: 10.000000 Brand: Price: $ 208.16 |
Drive Shaft Housing (NLA) | 1 | $ 208.16 | ||
| 2 | 09100-06122 Bolt (6x20)
SKU: 09100-06122 Weight: 0.060000 Brand: Price: $ 1.31 |
Bolt (6x20) | 6 | $ 1.31 | ||
| 3 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 6 | $ 1.49 | ||
| 4 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 6 | $ 1.44 | ||
| 5 | 55110-98402-02M Gear Case Housing (NLA)
SKU: 55110-98402-02M Weight: 0.100000 Brand: Price: $ 39.22 |
Gear Case Housing (NLA) | 1 | $ 39.22 | ||
| 6 | 09262-10015 B1 10x26x8 Bearing
SKU: 09262-10015 Weight: 0.060000 Brand: Price: $ 14.73 |
B1 10x26x8 Bearing | 2 | $ 14.73 | ||
| 7 | 09180-19004 Spacer (NLA)
SKU: 09180-19004 Weight: 0.100000 Brand: Price: $ 1.50 |
Spacer (NLA) | 1 | $ 1.50 | ||
| 8 | 09262-12001 Bearing (12x28x8)
SKU: 09262-12001 Weight: 0.250000 Brand: Price: $ 18.80 |
Bearing (12x28x8) | 1 | $ 18.80 | ||
| 9 | 08221-22283 Shim (0.1) (NLA)
SKU: 08221-22283 Weight: 0.100000 Brand: Price: $ 1.06 |
Shim (0.1) (NLA) | 1 | $ 1.06 | ||
| 10 | 08221-22284 Shim (0.2) (NLA)
SKU: 08221-22284 Weight: 0.100000 Brand: Price: $ 0.93 |
Shim (0.2) (NLA) | 1 | $ 0.93 | ||
| 11 | 08221-22285 Shim (0.50) (NLA)
SKU: 08221-22285 Weight: 0.060000 Brand: Price: $ 0.90 |
Shim (0.50) (NLA) | 1 | $ 0.90 | ||
| 12 | 08331-41289 Circlip
SKU: 08331-41289 Weight: 0.060000 Brand: Price: $ 2.32 |
Circlip | 1 | $ 2.32 | ||
| 13 | 09289-12002 Oil Seal (12x28x8)
SKU: 09289-12002 Weight: 0.060000 Brand: Price: $ 7.75 |
Oil Seal (12x28x8) | 1 | $ 7.75 | ||
| 14 | 09181-20130 Shim (0.50) (NLA)
SKU: 09181-20130 Weight: 0.100000 Brand: Price: $ 1.59 |
Shim (0.50) (NLA) | 1 | $ 1.59 | ||
| 15 | 09320-20009 Bushing
SKU: 09320-20009 Weight: 0.060000 Brand: Price: $ 2.52 |
Bushing | 1 | $ 2.52 | ||
| 16 | 57151-98400 Drive Shaft Seal Pipe (NLA)
SKU: 57151-98400 Weight: 0.100000 Brand: Price: $ 26.96 |
Drive Shaft Seal Pipe (NLA) | 1 | $ 26.96 | ||
| 17 | 09108-06062 Stud Bolt (6x12)
SKU: 09108-06062 Weight: 0.060000 Brand: Price: $ 1.62 |
Stud Bolt (6x12) | 1 | $ 1.62 | ||
| 18 | 09206-09007 Pin (NLA)
SKU: 09206-09007 Weight: 0.100000 Brand: Price: $ 1.61 |
Pin (NLA) | 1 | $ 1.61 | ||
| 19 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 1 | $ 1.49 | ||
| 20 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 21 | 09108-06063 Stud Bolt (6x12)
SKU: 09108-06063 Weight: 0.060000 Brand: Price: $ 3.00 |
Stud Bolt (6x12) | 1 | $ 3.00 | ||
| 22 | 09206-09001 Pin
SKU: 09206-09001 Weight: 0.060000 Brand: Price: $ 3.14 |
Pin | 1 | $ 3.14 | ||
| 23 | 53131-98400-02M Gear Case Cover (NLA)
SKU: 53131-98400-02M Weight: 0.100000 Brand: Price: $ 0.00 |
Gear Case Cover (NLA) | 1 | $ 0.00 | ||
| 24 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 25 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 1 | $ 6.59 | ||
| 26 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 1 | $ 1.60 | ||
| 27 | 63211-98400 Handle Grip
SKU: 63211-98400 Weight: 0.120000 Brand: Price: $ 8.45 |
Handle Grip | 1 | $ 8.45 | ||
| 28 | 63111-98403-0ED Tiller Handle (NLA)
SKU: 63111-98403-0ED Weight: 0.500000 Brand: Price: $ 34.90 |
Tiller Handle (NLA) | 1 | $ 34.90 | ||
| 29 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 1 | $ 2.68 | ||
| 30 | 09164-10006 Washer
SKU: 09164-10006 Weight: 0.060000 Brand: Price: $ 2.20 |
Washer | 2 | $ 2.20 | ||
| 31 | 09111-08049 Bolt (NLA)
SKU: 09111-08049 Weight: 0.100000 Brand: Price: $ 4.32 |
Bolt (NLA) | 1 | $ 4.32 | ||
| 32 | 09306-10009 Handle Bushing
SKU: 09306-10009 Weight: 0.060000 Brand: Price: $ 1.31 |
Handle Bushing | 1 | $ 1.31 | ||
| 33 | 52120-98400-0ED Handle Attachment Set (NLA)
SKU: 52120-98400-0ED Weight: 0.100000 Brand: Price: $ 51.03 |
Handle Attachment Set (NLA) | 1 | $ 51.03 | Optional | |
| 34 | 55300-98400 Zinc Anode (NLA)
SKU: 55300-98400 Weight: 0.100000 Brand: Price: $ 14.70 |
Zinc Anode (NLA) | 1 | $ 14.70 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
