Suzuki DT 2 Parts Listings 1983 to 1985

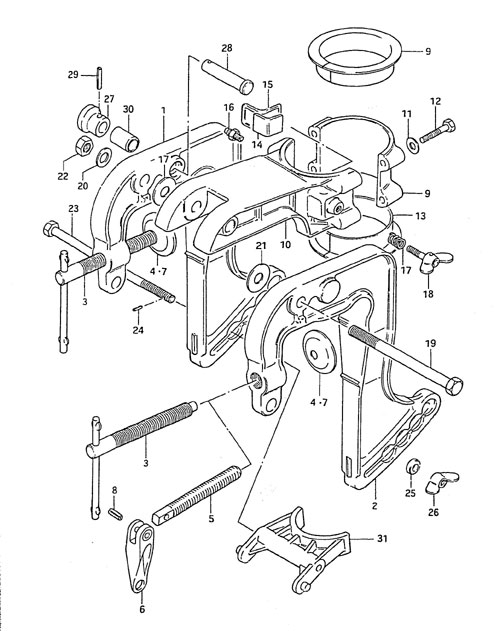

Fig. 6 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41101-98400-0ED Starboard Clamp Bracket
SKU: 41101-98400-0ED Weight: 2.000000 Brand: Price: $ 97.83 |
Starboard Clamp Bracket | 1 | $ 97.83 | ||
| 2 | 41102-98400-0ED Port Clamp Bracket (NLA)
SKU: 41102-98400-0ED Weight: 2.000000 Brand: Price: $ 91.70 |
Port Clamp Bracket (NLA) | 1 | $ 91.70 | ||
| 3 | 41210-986L1 Clamp Screw Assembly
SKU: 41210-986L1 Weight: 0.260000 Brand: Price: $ 33.75 |
Clamp Screw Assembly | 2 | $ 33.75 | 1983 to 1984 | |
| 4 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 5 | 41210-986L1 Clamp Screw Assembly
SKU: 41210-986L1 Weight: 0.260000 Brand: Price: $ 33.75 |
Clamp Screw Assembly | 2 | $ 33.75 | 1985 | |
| 6 | 41210-986L1 Clamp Screw Assembly
SKU: 41210-986L1 Weight: 0.260000 Brand: Price: $ 33.75 |
Clamp Screw Assembly | 2 | $ 33.75 | 1985 | |
| 7 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | 1985 | |
| 8 | 09205-05013 Clamp Handle Pin
SKU: 09205-05013 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp Handle Pin | 2 | $ 1.86 | 1985 | |
| 9 | 43121-98404-0ED Swivel Bracket Cover (NLA)
SKU: 43121-98404-0ED Weight: 0.200000 Brand: Price: $ 29.16 |
Swivel Bracket Cover (NLA) | 1 | $ 29.16 | ||
| 10 | 43111-98410-0ED Swivel Bracket (NLA)
SKU: 43111-98410-0ED Weight: 1.500000 Brand: Price: $ 66.95 |
Swivel Bracket (NLA) | 1 | $ 66.95 | ||
| 11 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 4 | $ 1.44 | ||
| 12 | 09117-06037-XC0 Bolt (6x35) (NLA)
SKU: 09117-06037-XC0 Weight: 0.060000 Brand: Price: $ 2.46 |
Bolt (6x35) (NLA) | 4 | $ 2.46 | ||
| 13 | 43711-98401 Steering Bushing
SKU: 43711-98401 Weight: 0.060000 Brand: Price: $ 4.67 |
Steering Bushing | 2 | $ 4.67 | ||
| 14 | 43415-98402 Steering Plate (NLA)
SKU: 43415-98402 Weight: 0.250000 Brand: Price: $ 1.06 |
Steering Plate (NLA) | 1 | $ 1.06 | ||
| 15 | 43416-98401 Adjuster Rubber
SKU: 43416-98401 Weight: 0.060000 Brand: Price: $ 2.44 |
Adjuster Rubber | 1 | $ 2.44 | ||
| 16 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
| 17 | 09440-09042 Spring
SKU: 09440-09042 Weight: 0.100000 Brand: Price: $ 1.57 |
Spring | 1 | $ 1.57 | ||
| 18 | 09119-06038 Bolt (NLA)
SKU: 09119-06038 Weight: 0.100000 Brand: Price: $ 1.57 |
Bolt (NLA) | 1 | $ 1.57 | ||
| 19 | 09100-08228 Bolt (8x105)
SKU: 09100-08228 Weight: 0.250000 Brand: Price: $ 6.07 |
Bolt (8x105) | 1 | $ 6.07 | ||
| 20 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 21 | 09160-08014 Washer (8.5x23x1.5) (NLA)
SKU: 09160-08014 Weight: 0.100000 Brand: Price: $ 1.19 |
Washer (8.5x23x1.5) (NLA) | 2 | $ 1.19 | ||
| 22 | 09159-08018 Nut (8mm) (NLA)
SKU: 09159-08018 Weight: 0.200000 Brand: Price: $ 2.08 |
Nut (8mm) (NLA) | 1 | $ 2.08 | ||
| 23 | 09101-06009 Bolt (6x115)
SKU: 09101-06009 Weight: 0.100000 Brand: Price: $ 4.43 |
Bolt (6x115) | 1 | $ 4.43 | ||
| 24 | 09205-03010 Pin (NLA)
SKU: 09205-03010 Weight: 0.060000 Brand: Price: $ 0.32 |
Pin (NLA) | 1 | $ 0.32 | ||
| 25 | 09180-06096 Spacer (NLA)
SKU: 09180-06096 Weight: 0.100000 Brand: Price: $ 0.99 |
Spacer (NLA) | 1 | $ 0.99 | ||
| 26 | 09144-06004 Wing Nut
SKU: 09144-06004 Weight: 0.100000 Brand: Price: $ 2.68 |
Wing Nut | 1 | $ 2.68 | ||
| 27 | 41221-98400 Tilt Stopper Knob
SKU: 41221-98400 Weight: 0.250000 Brand: Price: $ 4.84 |
Tilt Stopper Knob | 1 | $ 4.84 | ||
| 28 | 09200-10011 Pin (NLA)
SKU: 09200-10011 Weight: 0.060000 Brand: Price: $ 2.19 |
Pin (NLA) | 1 | $ 2.19 | ||
| 29 | 09205-03012 Spring Pin (3x16)
SKU: 09205-03012 Weight: 0.060000 Brand: Price: $ 1.99 |
Spring Pin (3x16) | 1 | $ 1.99 | ||
| 30 | 09300-10006 Bushing (NLA)
SKU: 09300-10006 Weight: 0.100000 Brand: Price: $ 3.16 |
Bushing (NLA) | 1 | $ 3.16 | ||
| 31 | 45411-98410 Thrust Block
SKU: 45411-98410 Weight: 0.100000 Brand: Price: $ 18.27 |
Thrust Block | 1 | $ 18.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
