Suzuki DT 2 Parts Listings 1983 to 1985

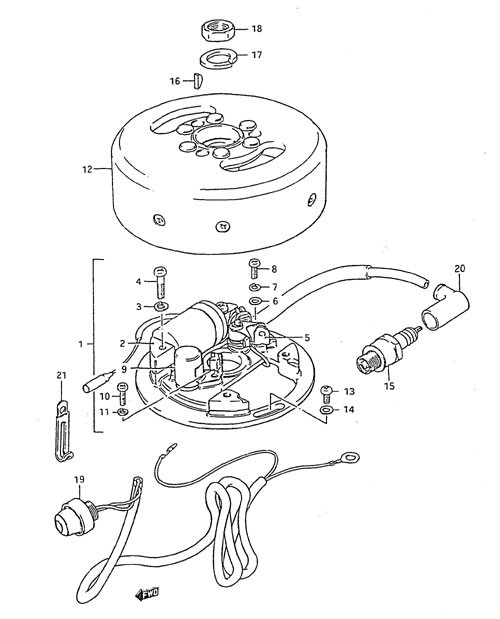

Fig. 5 - Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32101-98435 Stator Assembly (NLA)
SKU: 32101-98435 Weight: 0.100000 Brand: Price: $ 77.40 |
Stator Assembly (NLA) | 1 | $ 77.40 | ||
| 2 | 32140-98431 Ignition Coil
SKU: 32140-98431 Weight: 0.440000 Brand: Price: $ 135.40 |
Ignition Coil | 1 | $ 135.40 | ||
| 3 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 4 | 02112-05257 SCREW 5X25
SKU: 02112-05257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW 5X25 | 2 | $ 1.49 | ||
| 5 | 32240-98034 Contact Point Assembly
SKU: 32240-98034 Weight: 0.125000 Brand: Price: $ 32.75 |
Contact Point Assembly | 1 | $ 32.75 | ||
| 6 | 08322-01047 Washer
SKU: 08322-01047 Weight: 0.125000 Brand: Price: $ 1.87 |
Washer | 1 | $ 1.87 | ||
| 7 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 8 | 02112-04107 SCREW
SKU: 02112-04107 Weight: 0.060000 Brand: Price: $ 1.57 |
SCREW | 1 | $ 1.57 | ||
| 9 | 32341-98430 Condensor(NLA)
SKU: 32341-98430 Weight: 0.060000 Brand: Price: $ 16.10 |
Condensor(NLA) | 1 | $ 16.10 | ||
| 10 | 02112-04107 SCREW
SKU: 02112-04107 Weight: 0.060000 Brand: Price: $ 1.57 |
SCREW | 1 | $ 1.57 | ||
| 11 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 12 | 32102-98431 Flywheel (NLA)
SKU: 32102-98431 Weight: 0.100000 Brand: Price: $ 149.72 |
Flywheel (NLA) | 1 | $ 149.72 | ||
| 13 | 02112-05127 SCREW
SKU: 02112-05127 Weight: 0.060000 Brand: Price: $ 1.97 |
SCREW | 2 | $ 1.97 | ||
| 15 | 09482-00289 NGK B4HS Spark Plug
SKU: 09482-00289 Weight: 0.187500 Brand: Price: $ 3.34 |
NGK B4HS Spark Plug | 1 | $ 3.34 | ||
| 16 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 17 | 08321-01127 Lock Washer
SKU: 08321-01127 Weight: 0.100000 Brand: Price: $ 2.06 |
Lock Washer | 1 | $ 2.06 | ||
| 18 | 09140-12039 Nut
SKU: 09140-12039 Weight: 0.060000 Brand: Price: $ 3.11 |
Nut | 1 | $ 3.11 | ||
| 19 | 37800-93955 Engine Stop Switch Assembly
SKU: 37800-93955 Weight: 0.250000 Brand: Price: $ 28.30 |
Engine Stop Switch Assembly | 1 | $ 28.30 | ||
| 20 | 33510-95520 Spark Plug Cap
SKU: 33510-95520 Weight: 0.060000 Brand: Price: $ 18.63 |
Spark Plug Cap | 1 | $ 18.63 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
