Suzuki DT 2 Parts Listings 1983 to 1985

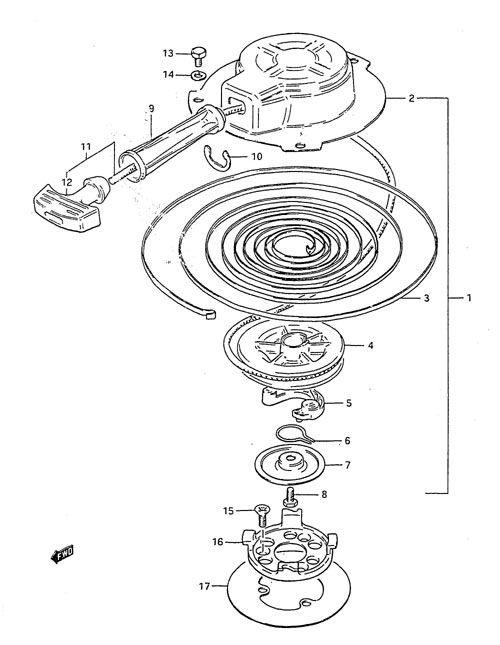

Fig. 4 - Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 18100-98410 Recoil Starter Assembly
SKU: 18100-98410 Weight: 1.200000 Brand: Price: $ 171.74 |
Recoil Starter Assembly | 1 | $ 171.74 | ||
| 2 | 18111-98400 Starter Case (NLA)
SKU: 18111-98400 Weight: 0.100000 Brand: Price: $ 43.00 |
Starter Case (NLA) | 1 | $ 43.00 | ||
| 3 | 18142-87600 Spring (NLA)
SKU: 18142-87600 Weight: 0.100000 Brand: Price: $ 16.25 |
Spring (NLA) | 1 | $ 16.25 | ||
| 4 | 18121-98400 Starter Reel (NLA)
SKU: 18121-98400 Weight: 0.100000 Brand: Price: $ 33.25 |
Starter Reel (NLA) | 1 | $ 33.25 | ||
| 5 | 18131-98400 Starter Rachet (NLA)
SKU: 18131-98400 Weight: 0.100000 Brand: Price: $ 3.65 |
Starter Rachet (NLA) | 1 | $ 3.65 | ||
| 6 | 18153-98410 Pilot Shaft Spring (NLA)
SKU: 18153-98410 Weight: 0.100000 Brand: Price: $ 1.58 |
Pilot Shaft Spring (NLA) | 1 | $ 1.58 | ||
| 7 | 18151-98400 Plate (NLA)
SKU: 18151-98400 Weight: 0.100000 Brand: Price: $ 6.62 |
Plate (NLA) | 1 | $ 6.62 | ||
| 8 | 18332-98400 Pivot Bolt (NLA)
SKU: 18332-98400 Weight: 0.100000 Brand: Price: $ 0.62 |
Pivot Bolt (NLA) | 1 | $ 0.62 | ||
| 9 | 18181-98400 Starter Rope Guide (NLA)
SKU: 18181-98400 Weight: 0.100000 Brand: Price: $ 13.92 |
Starter Rope Guide (NLA) | 1 | $ 13.92 | ||
| 10 | 18183-98400 Starter E Ring (NLA)
SKU: 18183-98400 Weight: 0.100000 Brand: Price: $ 1.87 |
Starter E Ring (NLA) | 1 | $ 1.87 | ||
| 11 | 18210-98400 Starter Grip
SKU: 18210-98400 Weight: 0.250000 Brand: Price: $ 8.89 |
Starter Grip | 1 | $ 8.89 | ||
| 12 | 18210-98400 Starter Grip
SKU: 18210-98400 Weight: 0.250000 Brand: Price: $ 8.89 |
Starter Grip | 1 | $ 8.89 | ||
| 13 | 01500-06107 BOLT
SKU: 01500-06107 Weight: 0.100000 Brand: Price: $ 2.06 |
BOLT | 2 | $ 2.06 | ||
| 14 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 15 | 02122-06127 SCREW
SKU: 02122-06127 Weight: 0.100000 Brand: Price: $ 1.85 |
SCREW | 3 | $ 1.85 | ||
| 16 | 18411-98401 Starter Cup
SKU: 18411-98401 Weight: 0.100000 Brand: Price: $ 25.58 |
Starter Cup | 1 | $ 25.58 | ||
| 17 | 32725-98400 Magneto Insulator (NLA)
SKU: 32725-98400 Weight: 0.100000 Brand: Price: $ 0.00 |
Magneto Insulator (NLA) | 1 | $ 0.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
