Suzuki DT 2 Parts Listings 1983 to 1985

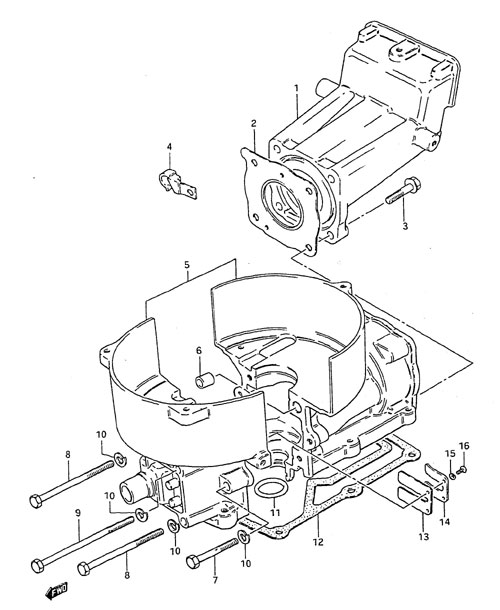

Fig. 1 - Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11111-98421-0ED Cylinder Head (NLA)
SKU: 11111-98421-0ED Weight: 1.000000 Brand: Price: $ 52.64 |
Cylinder Head (NLA) | 1 | $ 52.64 | ||
| 2 | 11141-98411 Cylinder Head Gasket
SKU: 11141-98411 Weight: 0.060000 Brand: Price: $ 16.29 |
Cylinder Head Gasket | 1 | $ 16.29 | ||
| 3 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 4 | $ 2.74 | ||
| 4 | 09403-10309 Clamp (NLA)
SKU: 09403-10309 Weight: 0.100000 Brand: Price: $ 1.55 |
Clamp (NLA) | 1 | $ 1.55 | ||
| 5 | 11301-98403-02M Cylinder/Crankcase Assembly (NLA)
SKU: 11301-98403-02M Weight: 0.100000 Brand: Price: $ 109.61 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 109.61 | ||
| 6 | 04211-09109 DOWEL PIN
SKU: 04211-09109 Weight: 0.060000 Brand: Price: $ 1.66 |
DOWEL PIN | 2 | $ 1.66 | ||
| 7 | 09100-06033 Replaced by 64455-07L00
SKU: 09100-06033 Weight: 0.200000 Brand: Price: $ 1.35 |
Replaced by 64455-07L00 | 2 | $ 1.35 | ||
| 8 | 09100-06038 Bolt (6x50)
SKU: 09100-06038 Weight: 0.060000 Brand: Price: $ 1.54 |
Bolt (6x50) | 2 | $ 1.54 | ||
| 9 | 09100-06062 Bolt
SKU: 09100-06062 Weight: 0.125000 Brand: Price: $ 2.25 |
Bolt | 2 | $ 2.25 | ||
| 10 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 6 | $ 1.85 | ||
| 11 | 09280-20002 O-Ring
SKU: 09280-20002 Weight: 0.060000 Brand: Price: $ 1.94 |
O-Ring | 1 | $ 1.94 | ||
| 12 | 52113-98411 Drive Shaft Housing Gasket
SKU: 52113-98411 Weight: 0.060000 Brand: Price: $ 17.65 |
Drive Shaft Housing Gasket | 1 | $ 17.65 | ||
| 13 | 13153-19012 Reed Valve
SKU: 13153-19012 Weight: 0.100000 Brand: Price: $ 7.82 |
Reed Valve | 1 | $ 7.82 | ||
| 14 | 13152-19010 Reed Valve Stopper (NLA)
SKU: 13152-19010 Weight: 0.060000 Brand: Price: $ 3.80 |
Reed Valve Stopper (NLA) | 1 | $ 3.80 | ||
| 15 | 09162-03001 Lock Washer
SKU: 09162-03001 Weight: 0.100000 Brand: Price: $ 1.16 |
Lock Washer | 2 | $ 1.16 | ||
| 16 | 02112-03087 02112-0308A
SKU: 02112-03087 Weight: 0.125000 Brand: Price: $ 0.43 |
02112-0308A | 2 | $ 0.43 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
