Suzuki DT 40 Parts Listings 1986 to 1998

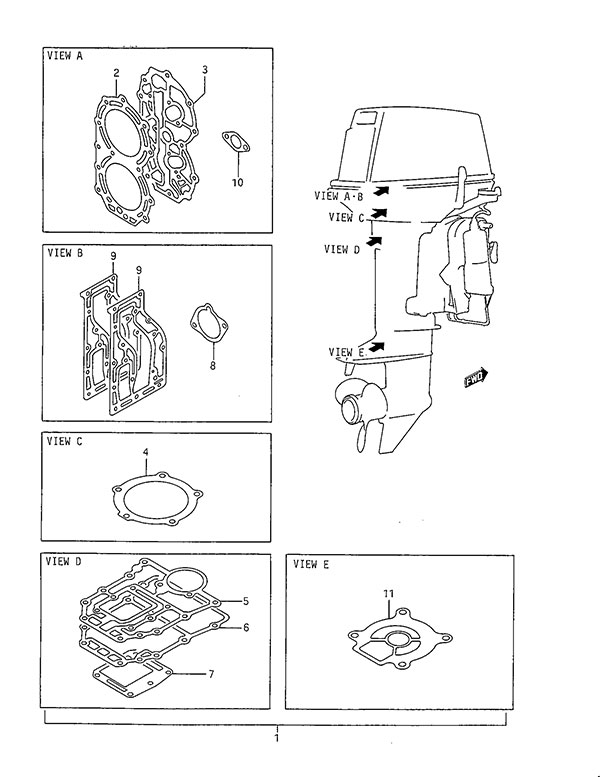

Fig. 49 - Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11410-94826 Engine Gasket Set
SKU: 11410-94826 Weight: 1.500000 Brand: Price: $ 144.27 |
Engine Gasket Set | 1 | $ 144.27 | ||
| 2 | 11141-94450 Cylinder Head Gasket
SKU: 11141-94450 Weight: 0.160000 Brand: Price: $ 30.23 |
Cylinder Head Gasket | 1 | $ 30.23 | ||
| 3 | 11162-92L00 Cylinder Head Cover Gasket
SKU: 11162-92L00 Weight: 0.060000 Brand: Price: $ 11.87 |
Cylinder Head Cover Gasket | 1 | $ 11.87 | ||
| 4 | 11413-94411 Upper Oil Seal Housing Gasket
SKU: 11413-94411 Weight: 0.125000 Brand: Price: $ 9.27 |
Upper Oil Seal Housing Gasket | 1 | $ 9.27 | ||
| 5 | 11433-94412 Under Oil Seal Housing Gasket
SKU: 11433-94412 Weight: 0.250000 Brand: Price: $ 29.71 |
Under Oil Seal Housing Gasket | 1 | $ 29.71 | ||
| 6 | 11434-94411 Oil Seal Housing Gasket
SKU: 11434-94411 Weight: 0.080000 Brand: Price: $ 24.22 |
Oil Seal Housing Gasket | 1 | $ 24.22 | ||
| 7 | 14212-94413 Exhaust Tube Gasket
SKU: 14212-94413 Weight: 0.060000 Brand: Price: $ 6.09 |
Exhaust Tube Gasket | 1 | $ 6.09 | ||
| 8 | 13855-95210 Silencer Gasket
SKU: 13855-95210 Weight: 0.060000 Brand: Price: $ 3.99 |
Silencer Gasket | 1 | $ 3.99 | ||
| 9 | 14151-94412 Exhaust Cover Gasket
SKU: 14151-94412 Weight: 0.080000 Brand: Price: $ 17.15 |
Exhaust Cover Gasket | 2 | $ 17.15 | ||
| 10 | 16731-95310 Oil Pump Gasket (NLA)
SKU: 16731-95310 Weight: 0.060000 Brand: Price: $ 2.36 |
Oil Pump Gasket (NLA) | 1 | $ 2.36 | ||
| 11 | 17472-96304 Water Pump Plate Gasket
SKU: 17472-96304 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Pump Plate Gasket | 1 | $ 2.28 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
