Suzuki DT 40 Parts Listings 1986 to 1998

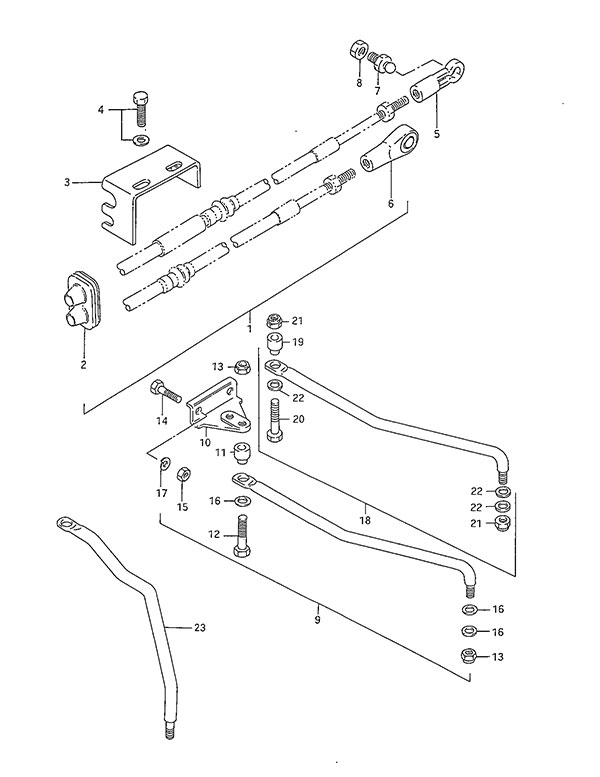

Fig. 48 - Remocon Parts
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67130-94810 Remote Control Parts Set (NLA)
SKU: 67130-94810 Weight: 0.100000 Brand: Price: $ 15.65 |
Remote Control Parts Set (NLA) | 1 | $ 15.65 | ||
| 2 | 67331-94400 Cable Grommet
SKU: 67331-94400 Weight: 0.060000 Brand: Price: $ 7.71 |
Cable Grommet | 1 | $ 7.71 | Std: DT40TC, DT40RC | |
| 3 | 67341-94400 Remocon Cable Holder
SKU: 67341-94400 Weight: 0.100000 Brand: Price: $ 17.17 |
Remocon Cable Holder | 1 | $ 17.17 | Std: DT40TC, DT40RC | |
| 4 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | Std: DT40TC, DT40RC | |
| 5 | 67466-95200 Cable Connector
SKU: 67466-95200 Weight: 0.060000 Brand: Price: $ 5.35 |
Cable Connector | 1 | $ 5.35 | Std: DT40TC, DT40RC | |
| 6 | 67467-94404 Cable Connector
SKU: 67467-94404 Weight: 0.060000 Brand: Price: $ 9.56 |
Cable Connector | 1 | $ 9.56 | Std: DT40TC, DT40RC | |
| 7 | 09119-06047 Pivot Ball
SKU: 09119-06047 Weight: 0.060000 Brand: Price: $ 6.99 |
Pivot Ball | 1 | $ 6.99 | Std: DT40TC, DT40RC | |
| 8 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | Std: DT40TC, DT40RC | |
| 9 | 67701-94420 Drag Link Assembly
SKU: 67701-94420 Weight: 2.000000 Brand: Price: $ 264.91 |
Drag Link Assembly | 1 | $ 264.91 | Std: DT40TC, DT40RC | |
| 10 | 43755-96320 Steering Bracket Attachment (NLA)
SKU: 43755-96320 Weight: 0.250000 Brand: Price: $ 125.03 |
Steering Bracket Attachment (NLA) | 1 | $ 125.03 | ||
| 11 | 67721-94310 Drag Link Spacer
SKU: 67721-94310 Weight: 0.100000 Brand: Price: $ 16.19 |
Drag Link Spacer | 1 | $ 16.19 | ||
| 12 | 67725-99E10 Replaced by 67725-99E20
SKU: 67725-99E10 Weight: 0.060000 Brand: Price: $ 7.19 |
Replaced by 67725-99E20 | 1 | $ 7.19 | ||
| 13 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Lock Nut | 2 | $ 8.24 | ||
| 14 | 09100-08224-XC0 Bolt (8x35)
SKU: 09100-08224-XC0 Weight: 0.060000 Brand: Price: $ 5.06 |
Bolt (8x35) | 2 | $ 5.06 | ||
| 15 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 16 | 67728-99E00 Washer
SKU: 67728-99E00 Weight: 0.060000 Brand: Price: $ 2.65 |
Washer | 3 | $ 2.65 | ||
| 17 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 18 | 67701-94430 Drag Link Assembly (NLA)
SKU: 67701-94430 Weight: 2.000000 Brand: Price: $ 84.46 |
Drag Link Assembly (NLA) | 1 | $ 84.46 | 1993 to 1998 | |
| 19 | 67721-94310 Drag Link Spacer
SKU: 67721-94310 Weight: 0.100000 Brand: Price: $ 16.19 |
Drag Link Spacer | 1 | $ 16.19 | 1993 to 1998 | |
| 20 | 67725-99E10 Replaced by 67725-99E20
SKU: 67725-99E10 Weight: 0.060000 Brand: Price: $ 7.19 |
Replaced by 67725-99E20 | 1 | $ 7.19 | 1993 to 1998 | |
| 21 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Lock Nut | 2 | $ 8.24 | 1993 to 1998 | |
| 22 | 67728-99E00 Washer
SKU: 67728-99E00 Weight: 0.060000 Brand: Price: $ 2.65 |
Washer | 3 | $ 2.65 | 1993 to 1998 | |
| 23 | 67711-97E50 Drag Link (LH) (NLA)
SKU: 67711-97E50 Weight: 0.100000 Brand: Price: $ 40.00 |
Drag Link (LH) (NLA) | 1 | $ 40.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
