Suzuki DT 40 Parts Listings 1993 to 1998

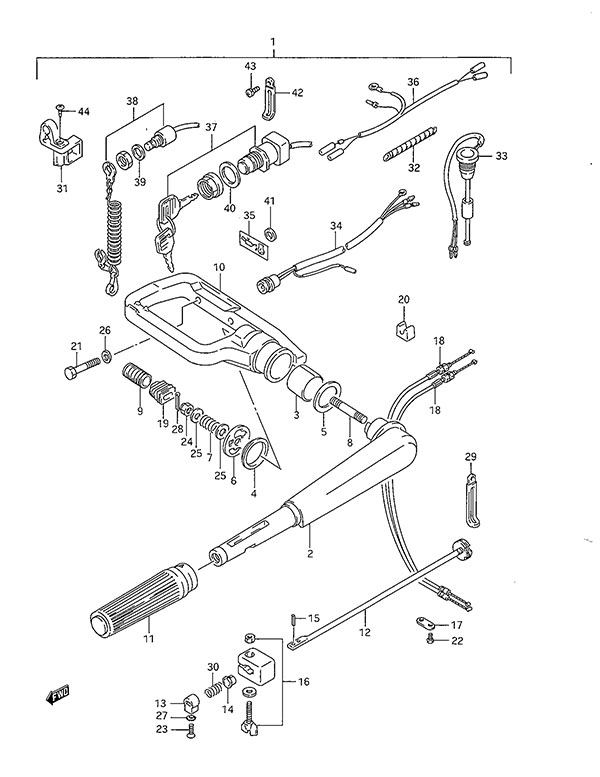

Fig. 47 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63001-97E02-0ED Tiller Handle Assembly (NLA)
SKU: 63001-97E02-0ED Weight: 0.100000 Brand: Price: $ 335.58 |
Tiller Handle Assembly (NLA) | 1 | $ 335.58 | ||
| 2 | 63111-97E05-0ED Tiller Handle
SKU: 63111-97E05-0ED Weight: 2.000000 Brand: Price: $ 175.67 |
Tiller Handle | 1 | $ 175.67 | ||
| 3 | 63115-97E00 Tiller Handle Bushing (NLA)
SKU: 63115-97E00 Weight: 0.060000 Brand: Price: $ 5.02 |
Tiller Handle Bushing (NLA) | 1 | $ 5.02 | ||
| 4 | 63116-97E00 Tiller Handle Washer (NLA)
SKU: 63116-97E00 Weight: 0.100000 Brand: Price: $ 10.81 |
Tiller Handle Washer (NLA) | 1 | $ 10.81 | ||
| 5 | 63117-97E01 Tiller Handle Washer (NLA)
SKU: 63117-97E01 Weight: 0.100000 Brand: Price: $ 8.02 |
Tiller Handle Washer (NLA) | 1 | $ 8.02 | ||
| 6 | 63125-97E01 Tiller Handle Plate (NLA)
SKU: 63125-97E01 Weight: 0.100000 Brand: Price: $ 11.14 |
Tiller Handle Plate (NLA) | 1 | $ 11.14 | ||
| 7 | 63126-97E01 Handle Stud Spring
SKU: 63126-97E01 Weight: 0.125000 Brand: Price: $ 11.33 |
Handle Stud Spring | 1 | $ 11.33 | ||
| 8 | 63127-97E00 Stud Bolt (NLA)
SKU: 63127-97E00 Weight: 0.100000 Brand: Price: $ 16.63 |
Stud Bolt (NLA) | 1 | $ 16.63 | ||
| 9 | 63128-97E00 Handle Nut Cover
SKU: 63128-97E00 Weight: 0.100000 Brand: Price: $ 3.68 |
Handle Nut Cover | 1 | $ 3.68 | ||
| 10 | 63131-97E03-0ED Tiller Handle Bracket
SKU: 63131-97E03-0ED Weight: 2.000000 Brand: Price: $ 236.62 |
Tiller Handle Bracket | 1 | $ 236.62 | ||
| 11 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 12 | 63220-96302 Handle Rod
SKU: 63220-96302 Weight: 1.000000 Brand: Price: $ 29.78 |
Handle Rod | 1 | $ 29.78 | ||
| 13 | 63223-92D00 Handle Rod Stopper
SKU: 63223-92D00 Weight: 0.060000 Brand: Price: $ 4.49 |
Handle Rod Stopper | 1 | $ 4.49 | ||
| 14 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 15 | 63227-93200 Handle Rod Pin
SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
| 16 | 63240-97E20 Handle Grip Adjuster
SKU: 63240-97E20 Weight: 0.250000 Brand: Price: $ 27.71 |
Handle Grip Adjuster | 1 | $ 27.71 | ||
| 17 | 63241-92D00 Handle Rod Support (NLA)
SKU: 63241-92D00 Weight: 0.060000 Brand: Price: $ 3.18 |
Handle Rod Support (NLA) | 1 | $ 3.18 | ||
| 18 | 63610-92L00 Throttle Cable Assembly
SKU: 63610-92L00 Weight: 0.200000 Brand: Price: $ 21.38 |
Throttle Cable Assembly | 2 | $ 21.38 | ||
| 19 | 63625-96300 Throttle Cable Grommet
SKU: 63625-96300 Weight: 0.180000 Brand: Price: $ 3.21 |
Throttle Cable Grommet | 1 | $ 3.21 | ||
| 20 | 63627-94400 Throttle Cable Guide (NLA)
SKU: 63627-94400 Weight: 0.100000 Brand: Price: $ 2.41 |
Throttle Cable Guide (NLA) | 1 | $ 2.41 | ||
| 21 | 09100-10155 Bolt (10x50)
SKU: 09100-10155 Weight: 0.250000 Brand: Price: $ 5.56 |
Bolt (10x50) | 2 | $ 5.56 | ||
| 22 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 23 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 24 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
| 25 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 26 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 27 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 28 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 29 | 09404-06036 Clamp (L:80)
SKU: 09404-06036 Weight: 0.100000 Brand: Price: $ 1.75 |
Clamp (L:80) | 1 | $ 1.75 | ||
| 30 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 31-1 | 33816-94400 Cable Clamp (NLA)
SKU: 33816-94400 Weight: 0.100000 Brand: Price: $ 5.63 |
Cable Clamp (NLA) | 1 | $ 5.63 | ||
| 31-2 | 33816-96300 Cable Clamp
SKU: 33816-96300 Weight: 0.060000 Brand: Price: $ 5.56 |
Cable Clamp | 1 | $ 5.56 | 1996 to 1998 | |
| 32 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 33 | 34860-94402 Oil Level Switch Assembly
SKU: 34860-94402 Weight: 0.100000 Brand: Price: $ 31.69 |
Oil Level Switch Assembly | 1 | $ 31.69 | ||
| 34 | 36360-94400 Oil Warning Lamp Assembly (NLA)
SKU: 36360-94400 Weight: 0.100000 Brand: Price: $ 23.38 |
Oil Warning Lamp Assembly (NLA) | 1 | $ 23.38 | ||
| 35 | 36367-95D10-064 Oil/Water Lamp Label (NLA)
SKU: 36367-95D10-064 Weight: 0.100000 Brand: Price: $ 1.73 |
Oil/Water Lamp Label (NLA) | 1 | $ 1.73 | ||
| 36 | 36893-94410 Ignition Switch Extension Wire (NLA)
SKU: 36893-94410 Weight: 0.100000 Brand: Price: $ 28.31 |
Ignition Switch Extension Wire (NLA) | 1 | $ 28.31 | ||
| 37 | 37110-94471 Ignition Switch Assembly
SKU: 37110-94471 Weight: 1.000000 Brand: Price: $ 106.05 |
Ignition Switch Assembly | 1 | $ 106.05 | ||
| 38 | 37820-92E05 Emergency Stop Switch Assembly
SKU: 37820-92E05 Weight: 0.250000 Brand: Price: $ 42.80 |
Emergency Stop Switch Assembly | 1 | $ 42.80 | ||
| 39 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 1 | $ 3.13 | ||
| 40 | 09160-25069 Washer
SKU: 09160-25069 Weight: 0.100000 Brand: Price: $ 5.05 |
Washer | 1 | $ 5.05 | ||
| 41 | 09320-11004 Oil Lamp Gasket (NLA)
SKU: 09320-11004 Weight: 0.100000 Brand: Price: $ 1.15 |
Oil Lamp Gasket (NLA) | 1 | $ 1.15 | ||
| 42 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 43 | 02142-06127 SCREW 6X12
SKU: 02142-06127 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X12 | 1 | $ 1.38 | ||
| 44 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
