Suzuki DT 40 Parts Listings 1986 to 1992

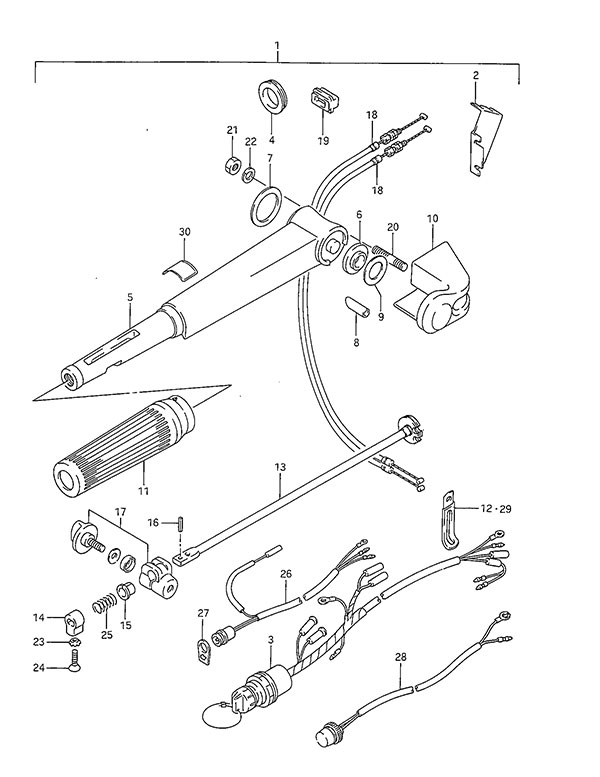

Fig. 46 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63001-94431-0ED Tiller Handle Assembly (NLA)
SKU: 63001-94431-0ED Weight: 0.100000 Brand: Price: $ 272.66 |
Tiller Handle Assembly (NLA) | 1 | $ 272.66 | ||
| 2 | 19184-94301 Throttle Cable Bracket (NLA)
SKU: 19184-94301 Weight: 0.100000 Brand: Price: $ 6.08 |
Throttle Cable Bracket (NLA) | 1 | $ 6.08 | ||
| 3 | 37110-94X50 Ignition Switch Assembly (NLA)
SKU: 37110-94X50 Weight: 7.000000 Brand: Price: $ 100.42 |
Ignition Switch Assembly (NLA) | 1 | $ 100.42 | ||
| 4 | 43753-94400 Steering Bracket Grommet (NLA)
SKU: 43753-94400 Weight: 0.100000 Brand: Price: $ 2.76 |
Steering Bracket Grommet (NLA) | 1 | $ 2.76 | ||
| 5 | 63111-96332-0ED Tiller Handle
SKU: 63111-96332-0ED Weight: 2.000000 Brand: Price: $ 101.77 |
Tiller Handle | 1 | $ 101.77 | ||
| 6 | 63114-95L00 Handle Cover Spacer
SKU: 63114-95L00 Weight: 0.060000 Brand: Price: $ 5.65 |
Handle Cover Spacer | 1 | $ 5.65 | ||
| 7 | 63115-96310 Handle Cover Inside Spacer
SKU: 63115-96310 Weight: 0.060000 Brand: Price: $ 6.26 |
Handle Cover Inside Spacer | 1 | $ 6.26 | ||
| 8 | 63117-96301 Stop Switch Wire Cover
SKU: 63117-96301 Weight: 0.060000 Brand: Price: $ 3.72 |
Stop Switch Wire Cover | 1 | $ 3.72 | ||
| 9-1 | 63118-94300 Tiller Handle Shim (0.3)
SKU: 63118-94300 Weight: 0.062500 Brand: Price: $ 3.57 |
Tiller Handle Shim (0.3) | 1 | $ 3.57 | ||
| 9-2 | 63118-94310 Tiller Handle Shim (0.5)
SKU: 63118-94310 Weight: 0.060000 Brand: Price: $ 4.55 |
Tiller Handle Shim (0.5) | 1 | $ 4.55 | ||
| 10 | 63121-96302-0ED Tiller Handle Cover (NLA)
SKU: 63121-96302-0ED Weight: 0.600000 Brand: Price: $ 49.14 |
Tiller Handle Cover (NLA) | 1 | $ 49.14 | ||
| 11 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 12 | 09404-06036 Clamp (L:80)
SKU: 09404-06036 Weight: 0.100000 Brand: Price: $ 1.75 |
Clamp (L:80) | 1 | $ 1.75 | ||
| 13 | 63220-96302 Handle Rod
SKU: 63220-96302 Weight: 1.000000 Brand: Price: $ 29.78 |
Handle Rod | 1 | $ 29.78 | ||
| 14 | 63223-92D00 Handle Rod Stopper
SKU: 63223-92D00 Weight: 0.060000 Brand: Price: $ 4.49 |
Handle Rod Stopper | 1 | $ 4.49 | ||
| 15 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 16 | 63227-93200 Handle Rod Pin
SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
| 17 | 63240-96300 Handle Grip Adjuster
SKU: 63240-96300 Weight: 0.060000 Brand: Price: $ 13.03 |
Handle Grip Adjuster | 1 | $ 13.03 | ||
| 18 | 63610-92L00 Throttle Cable Assembly
SKU: 63610-92L00 Weight: 0.200000 Brand: Price: $ 21.38 |
Throttle Cable Assembly | 2 | $ 21.38 | ||
| 19 | 63625-96300 Throttle Cable Grommet
SKU: 63625-96300 Weight: 0.180000 Brand: Price: $ 3.21 |
Throttle Cable Grommet | 1 | $ 3.21 | ||
| 20 | 09100-08147 Bolt (NLA)
SKU: 09100-08147 Weight: 0.100000 Brand: Price: $ 2.46 |
Bolt (NLA) | 2 | $ 2.46 | ||
| 21 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 22 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 23 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 24 | 09126-06006 Screw (6x20)
SKU: 09126-06006 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (6x20) | 1 | $ 1.88 | ||
| 25 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 26 | 36360-94400 Oil Warning Lamp Assembly (NLA)
SKU: 36360-94400 Weight: 0.100000 Brand: Price: $ 23.38 |
Oil Warning Lamp Assembly (NLA) | 1 | $ 23.38 | ||
| 27 | 36365-94401 Indicator (NLA)
SKU: 36365-94401 Weight: 0.100000 Brand: Price: $ 2.57 |
Indicator (NLA) | 1 | $ 2.57 | ||
| 28 | 37800-93955 Engine Stop Switch Assembly
SKU: 37800-93955 Weight: 0.250000 Brand: Price: $ 28.30 |
Engine Stop Switch Assembly | 1 | $ 28.30 | ||
| 29 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 30 | 63215-93401 Handle Grip Mark (NLA)
SKU: 63215-93401 Weight: 0.100000 Brand: Price: $ 1.19 |
Handle Grip Mark (NLA) | 1 | $ 1.19 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
