Suzuki DT 40 Parts Listings 1986 to 1998

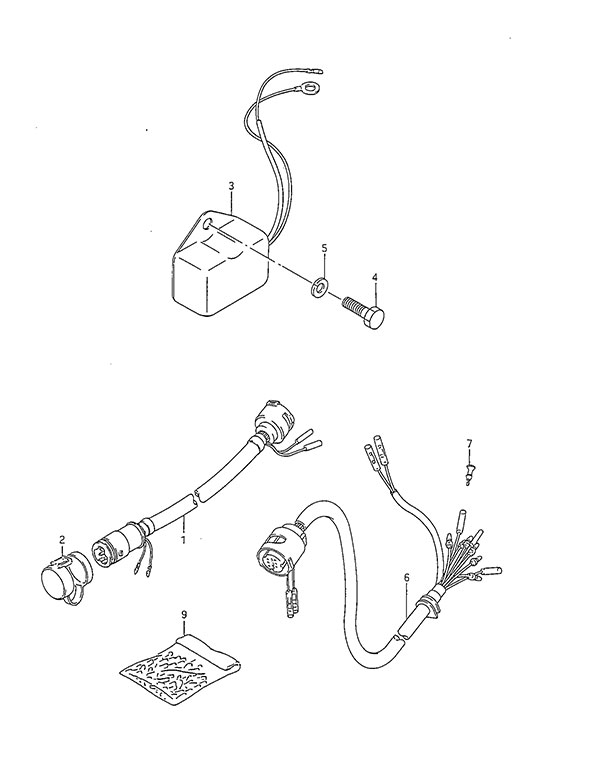

Fig. 45 - Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 36620-87D20 Wiring Harness Extension (NLA)
SKU: 36620-87D20 Weight: 2.940000 Brand: Price: $ 115.51 |
Wiring Harness Extension (NLA) | 1 | $ 115.51 | L:5000 | |
| 1-2 | 36620-95302 Wiring Harness Extension (NLA)
SKU: 36620-95302 Weight: 1.280000 Brand: Price: $ 83.56 |
Wiring Harness Extension (NLA) | 1 | $ 83.56 | L:2000 | |
| 2 | 36631-94300 Cap
SKU: 36631-94300 Weight: 0.200000 Brand: Price: $ 4.20 |
Cap | 1 | $ 4.20 | ||
| 3 | 32500-95722 Voltage Regulator Assembly (NLA)
SKU: 32500-95722 Weight: 0.300000 Brand: Price: $ 371.39 |
Voltage Regulator Assembly (NLA) | 1 | $ 371.39 | ||
| 4 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 5 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 6 | 36620-92E00 21' Main Wire Harness (NLA)
SKU: 36620-92E00 Weight: 3.860000 Brand: Price: $ 165.49 |
21' Main Wire Harness (NLA) | 1 | $ 165.49 | ||
| 7 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 9 | $ 1.31 | ||
| 9 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
