Suzuki DT 40 Parts Listings 1986 to 1998

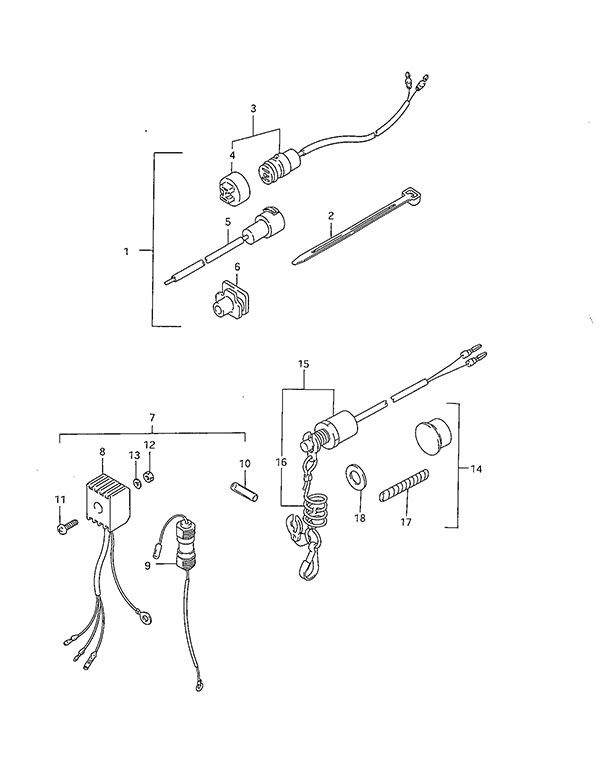

Fig. 44 - Electrical (Manual Starter)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 39600-93910 Receptacle Set (NLA)
SKU: 39600-93910 Weight: 1.000000 Brand: Price: $ 79.35 |
Receptacle Set (NLA) | 1 | $ 79.35 | ||
| 2 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 3 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | ||
| 4 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | ||
| 5 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | ||
| 6 | 39603-94400 Receptacle Grommet (NLA)
SKU: 39603-94400 Weight: 0.100000 Brand: Price: $ 6.73 |
Receptacle Grommet (NLA) | 1 | $ 6.73 | ||
| 7 | 32801-94402 Rectifier Set (NLA)
SKU: 32801-94402 Weight: 0.100000 Brand: Price: $ 102.27 |
Rectifier Set (NLA) | 1 | $ 102.27 | ||
| 8 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | ||
| 9 | 36740-95253 Fuse Case Assembly
SKU: 36740-95253 Weight: 0.100000 Brand: Price: $ 18.47 |
Fuse Case Assembly | 1 | $ 18.47 | ||
| 10 | 37132-93700 Wire Connector
SKU: 37132-93700 Weight: 0.100000 Brand: Price: $ 2.22 |
Wire Connector | 1 | $ 2.22 | ||
| 11 | 02142-0525B SCREW
SKU: 02142-0525B Weight: 0.200000 Brand: Price: $ 2.34 |
SCREW | 1 | $ 2.34 | ||
| 12 | 08310-00057 Nut
SKU: 08310-00057 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 13 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 14 | 37802-95D20 Emergency Switch Set (NLA)
SKU: 37802-95D20 Weight: 0.100000 Brand: Price: $ 27.75 |
Emergency Switch Set (NLA) | 1 | $ 27.75 | ||
| 15 | 37830-95D03 Emergency Stop Switch Assembly
SKU: 37830-95D03 Weight: 0.250000 Brand: Price: $ 45.92 |
Emergency Stop Switch Assembly | 1 | $ 45.92 | ||
| 16 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 17 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 18 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 1 | $ 3.13 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
