Suzuki DT 40 Parts Listings 1986 to 1998

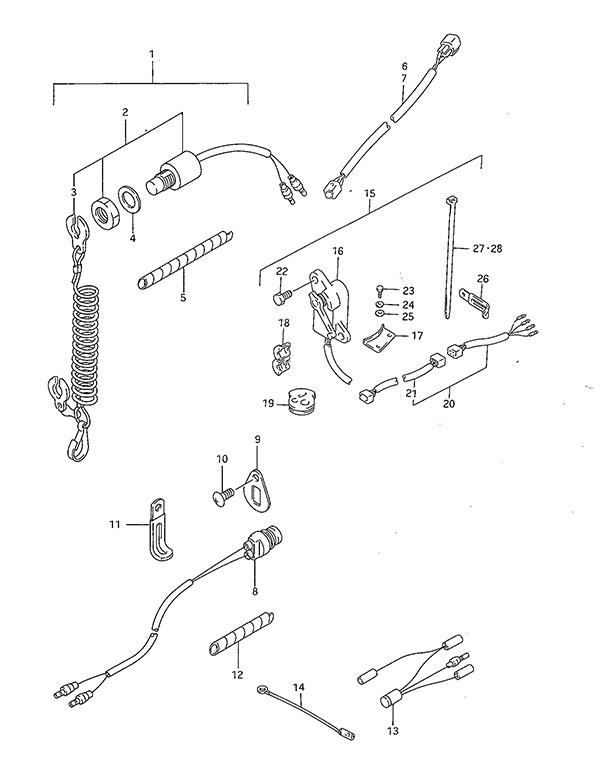

Fig. 43 - Electrical (Electric Starter)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37802-95D20 Emergency Switch Set (NLA)
SKU: 37802-95D20 Weight: 0.100000 Brand: Price: $ 27.75 |
Emergency Switch Set (NLA) | 1 | $ 27.75 | ||
| 2 | 37830-95D03 Emergency Stop Switch Assembly
SKU: 37830-95D03 Weight: 0.250000 Brand: Price: $ 45.92 |
Emergency Stop Switch Assembly | 1 | $ 45.92 | ||
| 3 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 4-1 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 2 | $ 3.13 | ||
| 4-2 | 09160-12087 Washer
SKU: 09160-12087 Weight: 0.200000 Brand: Price: $ 1.99 |
Washer | 1 | $ 1.99 | ||
| 5 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 6 | 36660-94400 Meter Extension Harness (NLA)
SKU: 36660-94400 Weight: 0.900000 Brand: Price: $ 87.36 |
Meter Extension Harness (NLA) | 1 | $ 87.36 | ||
| 7 | 36660-94480 Trim Wire Harness (6 ft) (NLA)
SKU: 36660-94480 Weight: 5.000000 Brand: Price: $ 47.95 |
Trim Wire Harness (6 ft) (NLA) | 1 | $ 47.95 | ||
| 8 | 34850-94610 Heat Sensor Assy
SKU: 34850-94610 Weight: 0.080000 Brand: Price: $ 106.60 |
Heat Sensor Assy | 1 | $ 106.60 | Std: DT40TC, DT40RC | |
| 9 | 34853-94700 Heat Sensor Supporter
SKU: 34853-94700 Weight: 0.100000 Brand: Price: $ 3.71 |
Heat Sensor Supporter | 1 | $ 3.71 | Std: DT40TC, DT40RC | |
| 10 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 1 | $ 2.09 | Std: DT40TC, DT40RC | |
| 11 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 12 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | Std: DT40TC, DT40RC L:250->50 | |
| 13 | 32815-94400 Heat Switch Diode (NLA)
SKU: 32815-94400 Weight: 0.100000 Brand: Price: $ 15.22 |
Heat Switch Diode (NLA) | 1 | $ 15.22 | Std: DT40TC, DT40RC 1993 to 1996 | |
| 14 | 37801-98300 Lead (NLA)
SKU: 37801-98300 Weight: 0.100000 Brand: Price: $ 3.65 |
Lead (NLA) | 1 | $ 3.65 | Std: DT40TC, DT40RC 1993 to 1995 | |
| 15 | 34804-94701 Trim Sender Set (NLA)
SKU: 34804-94701 Weight: 2.000000 Brand: Price: $ 233.62 |
Trim Sender Set (NLA) | 1 | $ 233.62 | ||
| 16 | 34801-94700 Trim Sender (NLA)
SKU: 34801-94700 Weight: 0.100000 Brand: Price: $ 130.94 |
Trim Sender (NLA) | 1 | $ 130.94 | ||
| 17 | 34802-95301 PTT Attachment (NLA)
SKU: 34802-95301 Weight: 0.100000 Brand: Price: $ 7.85 |
PTT Attachment (NLA) | 1 | $ 7.85 | ||
| 18 | 34803-94500 Trim Sensor Grommet (NLA)
SKU: 34803-94500 Weight: 0.100000 Brand: Price: $ 1.22 |
Trim Sensor Grommet (NLA) | 1 | $ 1.22 | ||
| 19 | 36658-95600 Cable Grommet (NLA)
SKU: 36658-95600 Weight: 0.100000 Brand: Price: $ 5.94 |
Cable Grommet (NLA) | 1 | $ 5.94 | ||
| 20 | 36680-92E00 Trim Meter Wire Assembly (NLA)
SKU: 36680-92E00 Weight: 1.000000 Brand: Price: $ 75.02 |
Trim Meter Wire Assembly (NLA) | 1 | $ 75.02 | ||
| 21 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | ||
| 22 | 09100-06113 Bolt (6x16)
SKU: 09100-06113 Weight: 0.200000 Brand: Price: $ 1.93 |
Bolt (6x16) | 2 | $ 1.93 | ||
| 23 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 2 | $ 2.10 | ||
| 24 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | ||
| 25 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 26 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 27 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 6 | $ 3.09 | ||
| 28 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
