Suzuki DT 40 Parts Listings 1986 to 1998

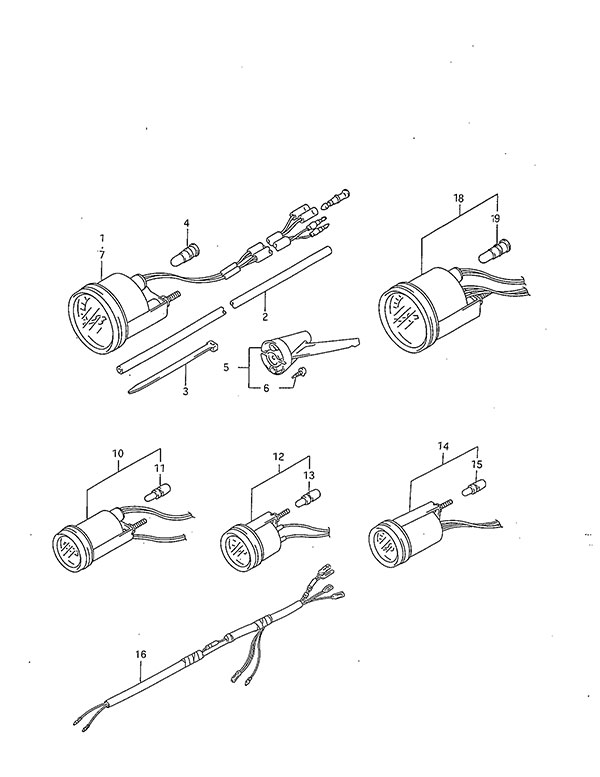

Fig. 42 - Meter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34100-92E00 Speedometer (80mph) (NLA)
SKU: 34100-92E00 Weight: 0.100000 Brand: Price: $ 81.95 |
Speedometer (80mph) (NLA) | 1 | $ 81.95 | ||
| 2 | 34191-92E00 Water Pressure Tubing
SKU: 34191-92E00 Weight: 0.300000 Brand: Price: $ 33.64 |
Water Pressure Tubing | 1 | $ 33.64 | ||
| 3 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 4 | 09471-12179 Bulb (Red)
SKU: 09471-12179 Weight: 0.060000 Brand: Price: $ 6.52 |
Bulb (Red) | 1 | $ 6.52 | ||
| 5 | 34190-87D00 Speedometer Sensor
SKU: 34190-87D00 Weight: 0.350000 Brand: Price: $ 44.58 |
Speedometer Sensor | 1 | $ 44.58 | ||
| 6 | 03112-06303 Screw (NLA)
SKU: 03112-06303 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw (NLA) | 2 | $ 2.20 | ||
| 7 | 34100-92E10 Speedometer (50mph) (NLA)
SKU: 34100-92E10 Weight: 0.100000 Brand: Price: $ 81.95 |
Speedometer (50mph) (NLA) | 1 | $ 81.95 | ||
| 8 | 34200-92E02 Tachometer (NLA)
SKU: 34200-92E02 Weight: 1.000000 Brand: Price: $ 116.95 |
Tachometer (NLA) | 1 | $ 116.95 | ||
| 9 | 09471-12179 Bulb (Red)
SKU: 09471-12179 Weight: 0.060000 Brand: Price: $ 6.52 |
Bulb (Red) | 1 | $ 6.52 | ||
| 10 | 34500-92E00 Hour Meter (NLA)
SKU: 34500-92E00 Weight: 0.100000 Brand: Price: $ 82.95 |
Hour Meter (NLA) | 1 | $ 82.95 | ||
| 11 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 12 | 34600-92E00 Volt Meter (NLA)
SKU: 34600-92E00 Weight: 0.100000 Brand: Price: $ 64.95 |
Volt Meter (NLA) | 1 | $ 64.95 | ||
| 13 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 14 | 34800-92E00 Trim Meter Assembly (NLA)
SKU: 34800-92E00 Weight: 0.100000 Brand: Price: $ 79.95 |
Trim Meter Assembly (NLA) | 1 | $ 79.95 | ||
| 15 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 16 | 34109-94500 Extension Lead (NLA)
SKU: 34109-94500 Weight: 2.000000 Brand: Price: $ 30.86 |
Extension Lead (NLA) | 1 | $ 30.86 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
