Suzuki DT 40 Parts Listings 1986 to 1998

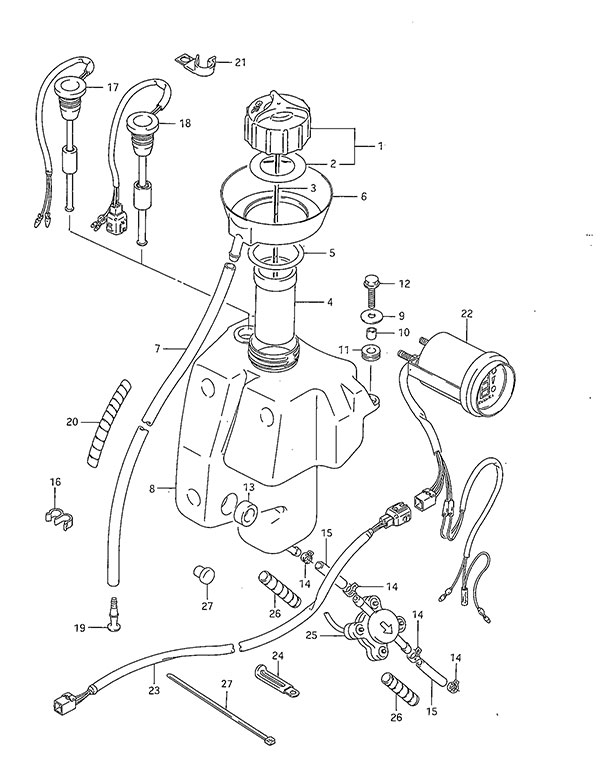

Fig. 38 - Oil Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 69200-94510 Suzuki Oil Tank Cap
SKU: 69200-94510 Weight: 0.120000 Brand: Price: $ 30.84 |
Suzuki Oil Tank Cap | 1 | $ 30.84 | ||
| 2 | 69241-94500 Oil Tank Cap Gasket
SKU: 69241-94500 Weight: 0.060000 Brand: Price: $ 3.02 |
Oil Tank Cap Gasket | 1 | $ 3.02 | ||
| 3 | 69251-94401 Oil Level Gauge (NLA)
SKU: 69251-94401 Weight: 0.100000 Brand: Price: $ 4.73 |
Oil Level Gauge (NLA) | 1 | $ 4.73 | ||
| 4 | 69351-94400 Oil Tank Inlet Tube (NLA)
SKU: 69351-94400 Weight: 0.100000 Brand: Price: $ 3.75 |
Oil Tank Inlet Tube (NLA) | 1 | $ 3.75 | ||
| 5 | 09280-40008 O-Ring (NLA)
SKU: 09280-40008 Weight: 0.060000 Brand: Price: $ 1.83 |
O-Ring (NLA) | 1 | $ 1.83 | ||
| 6 | 69355-94400 Oil Tank Gutter (NLA)
SKU: 69355-94400 Weight: 0.125000 Brand: Price: $ 4.82 |
Oil Tank Gutter (NLA) | 1 | $ 4.82 | ||
| 7 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->540 | |
| 8 | 69110-94400 Oil Tank (NLA)
SKU: 69110-94400 Weight: 5.000000 Brand: Price: $ 74.76 |
Oil Tank (NLA) | 1 | $ 74.76 | ||
| 9 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 2 | $ 1.78 | ||
| 10 | 09180-06310 Spacer (6.5x10x10)
SKU: 09180-06310 Weight: 0.060000 Brand: Price: $ 1.91 |
Spacer (6.5x10x10) | 2 | $ 1.91 | ||
| 11 | 09320-10075 Cushion
SKU: 09320-10075 Weight: 0.060000 Brand: Price: $ 1.92 |
Cushion | 2 | $ 1.92 | ||
| 12 | 02162-06257 SCREW
SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW | 2 | $ 1.49 | ||
| 13 | 09329-12004 Cushion
SKU: 09329-12004 Weight: 0.060000 Brand: Price: $ 2.67 |
Cushion | 1 | $ 2.67 | ||
| 14-1 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 4 | $ 2.02 | 1986 to 1994 | |
| 14-2 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | 1995 to 1996 S/N 653949 Older | |
| 14-3 | 09401-10411 Clip
SKU: 09401-10411 Weight: 0.060000 Brand: Price: $ 2.43 |
Clip | 1 | $ 2.43 | 1997 to 1998 S/N 653950 Newer | |
| 15-1 | 09355-45857-600 Hose (4.5x8.5x600)
SKU: 09355-45857-600 Weight: 0.250000 Brand: Price: $ 14.06 |
Hose (4.5x8.5x600) | 2 | $ 14.06 | 1986 to 1994 L:600->150 | |
| 15-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | 1995 to 1998 S/N 653949 Older L:600->540 | |
| 15-3 | 44421-13ER0 Hose (5x10x600)
SKU: 44421-13ER0 Weight: 0.200000 Brand: Price: $ 10.62 |
Hose (5x10x600) | 2 | $ 10.62 | S/N 653950 Newer L:600->230 | |
| 16 | 09408-00033 Clamp
SKU: 09408-00033 Weight: 0.100000 Brand: Price: $ 2.45 |
Clamp | 1 | $ 2.45 | ||
| 17 | 34860-94402 Oil Level Switch Assembly
SKU: 34860-94402 Weight: 0.100000 Brand: Price: $ 31.69 |
Oil Level Switch Assembly | 1 | $ 31.69 | ||
| 18-1 | 34860-94411 Oil Level Switch Assembly (NLA)
SKU: 34860-94411 Weight: 0.100000 Brand: Price: $ 76.29 |
Oil Level Switch Assembly (NLA) | 1 | $ 76.29 | DT40TC, DT40RC 1986 to 1987 | |
| 18-2 | 34860-94431 Oil Level Switch Assembly (NLA)
SKU: 34860-94431 Weight: 1.000000 Brand: Price: $ 115.02 |
Oil Level Switch Assembly (NLA) | 1 | $ 115.02 | DT40TC, DT40RC S/N 716025 Newer | |
| 19 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 1 | $ 1.31 | ||
| 20 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 21 | 09403-12308 Clamp (NLA)
SKU: 09403-12308 Weight: 0.100000 Brand: Price: $ 2.03 |
Clamp (NLA) | 1 | $ 2.03 | ||
| 22-1 | 34700-94410 Monitor Gauge Assembly (NLA)
SKU: 34700-94410 Weight: 0.100000 Brand: Price: $ 179.52 |
Monitor Gauge Assembly (NLA) | 1 | $ 179.52 | DT40TC, DT40RC S/N 716024 Older | |
| 22-2 | 34700-94421 Monitor Gauge Assembly (NLA)
SKU: 34700-94421 Weight: 0.100000 Brand: Price: $ 206.51 |
Monitor Gauge Assembly (NLA) | 1 | $ 206.51 | DT40TC, DT40RC S/N 716025 Newer | |
| 22-3 | 34701-92X50 Monitor Gauge Assembly (NLA)
SKU: 34701-92X50 Weight: 1.060000 Brand: Price: $ 239.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 239.95 | DT40TC, DT40RC 1989 to 1992 | |
| 22-4 | 34700-92E11 Monitor Gauge Assembly (NLA)
SKU: 34700-92E11 Weight: 7.000000 Brand: Price: $ 229.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 229.95 | 1993 to 1998 | |
| 23-1 | 36660-94400 Meter Extension Harness (NLA)
SKU: 36660-94400 Weight: 0.900000 Brand: Price: $ 87.36 |
Meter Extension Harness (NLA) | 1 | $ 87.36 | DT40TC, DT40RC 1986 to 1988 L:6500 | |
| 23-2 | 36660-94410 Meter Extension Harness (NLA)
SKU: 36660-94410 Weight: 0.100000 Brand: Price: $ 52.76 |
Meter Extension Harness (NLA) | 1 | $ 52.76 | DT40TC, DT40RC 1989 to 1992 | |
| 23-3 | 36660-94480 Trim Wire Harness (6 ft) (NLA)
SKU: 36660-94480 Weight: 5.000000 Brand: Price: $ 47.95 |
Trim Wire Harness (6 ft) (NLA) | 1 | $ 47.95 | DT40TC, DT40RC Opt: L:2000 | |
| 23-4 | 36660-95610 Monitor Gauge Harness (21 ft)
SKU: 36660-95610 Weight: 0.100000 Brand: Price: $ 205.70 |
Monitor Gauge Harness (21 ft) | 1 | $ 205.70 | 1993 to 1998 L:7200 | |
| 23-5 | 36660-92E90 Monitor Gauge Harness (6 ft) (NLA)
SKU: 36660-92E90 Weight: 0.100000 Brand: Price: $ 69.95 |
Monitor Gauge Harness (6 ft) (NLA) | 1 | $ 69.95 | 1993 to 1998 Opt: L:1700 | |
| 24 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 25 | 16250-94710 Oil Filter/Flow Sensor
SKU: 16250-94710 Weight: 0.080000 Brand: Price: $ 32.05 |
Oil Filter/Flow Sensor | 1 | $ 32.05 | ||
| 26-1 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 2 | $ 8.45 | L:540->110 S/N 653949 Older | |
| 26-2 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 2 | $ 8.45 | L:540->230 S/N 653950 Newer | |
| 27 | 09407-12402 Clamp
SKU: 09407-12402 Weight: 0.100000 Brand: Price: $ 3.09 |
Clamp | 2 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
