Suzuki DT 40 Parts Listings 1986 to 1987

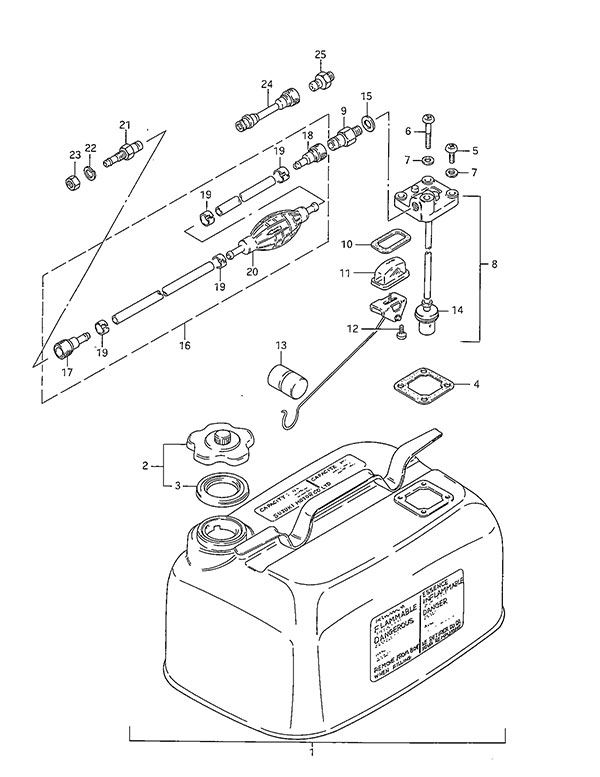

Fig. 35 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 2 | 65510-92D00 Fuel Tank Cap Assembly
SKU: 65510-92D00 Weight: 0.250000 Brand: Price: $ 28.84 |
Fuel Tank Cap Assembly | 1 | $ 28.84 | ||
| 3 | 65561-92D00 Tank Cap Gasket
SKU: 65561-92D00 Weight: 0.100000 Brand: Price: $ 6.81 |
Tank Cap Gasket | 1 | $ 6.81 | ||
| 4 | 65871-93010 Fuel Gauge Gasket
SKU: 65871-93010 Weight: 0.060000 Brand: Price: $ 2.49 |
Fuel Gauge Gasket | 1 | $ 2.49 | ||
| 5 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 3 | $ 1.44 | ||
| 6 | 02112-06407 SCREW
SKU: 02112-06407 Weight: 0.200000 Brand: Price: $ 1.78 |
SCREW | 1 | $ 1.78 | ||
| 7 | 09168-06004 Washer
SKU: 09168-06004 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 4 | $ 1.44 | ||
| 8 | 65850-95506 Fuel Gauge Assembly (NLA)
SKU: 65850-95506 Weight: 0.100000 Brand: Price: $ 36.27 |
Fuel Gauge Assembly (NLA) | 1 | $ 36.27 | ||
| 9 | 65740-95501 Fuel Tank Connector (13mm)
SKU: 65740-95501 Weight: 0.100000 Brand: Price: $ 26.29 |
Fuel Tank Connector (13mm) | 1 | $ 26.29 | ||
| 10 | 65854-93001 Gasket (NLA)
SKU: 65854-93001 Weight: 0.060000 Brand: Price: $ 2.34 |
Gasket (NLA) | 1 | $ 2.34 | ||
| 11 | 65853-93001 Fuel Strainer
SKU: 65853-93001 Weight: 0.060000 Brand: Price: $ 3.17 |
Fuel Strainer | 1 | $ 3.17 | ||
| 12 | 02112-04107 SCREW
SKU: 02112-04107 Weight: 0.060000 Brand: Price: $ 1.57 |
SCREW | 2 | $ 1.57 | ||
| 13 | 65864-95200 Float (NLA)
SKU: 65864-95200 Weight: 0.100000 Brand: Price: $ 4.01 |
Float (NLA) | 1 | $ 4.01 | ||
| 14 | 65830-95500 Fuel Outlet Filter
SKU: 65830-95500 Weight: 0.100000 Brand: Price: $ 12.66 |
Fuel Outlet Filter | 1 | $ 12.66 | ||
| 15 | 09168-12001 Gasket
SKU: 09168-12001 Weight: 0.200000 Brand: Price: $ 1.46 |
Gasket | 1 | $ 1.46 | ||
| 16 | 65700-87D85 Fuel Hose
SKU: 65700-87D85 Weight: 2.000000 Brand: Price: $ 229.94 |
Fuel Hose | 1 | $ 229.94 | ||
| 17 | 65750-98506 Fuel Hose Connector (11mm)
SKU: 65750-98506 Weight: 0.120000 Brand: Price: $ 30.19 |
Fuel Hose Connector (11mm) | 1 | $ 30.19 | ||
| 18 | 65750-93000 Fuel Hose Connector (13mm)(NLA)
SKU: 65750-93000 Weight: 0.120000 Brand: Price: $ 31.48 |
Fuel Hose Connector (13mm)(NLA) | 1 | $ 31.48 | ||
| 19 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 | ||
| 20 | 65770-99703 Squeeze Pump (NLA)
SKU: 65770-99703 Weight: 0.200000 Brand: Price: $ 19.84 |
Squeeze Pump (NLA) | 1 | $ 19.84 | ||
| 21 | 65720-985L1 Fuel Connector (11mm)
SKU: 65720-985L1 Weight: 0.080000 Brand: Price: $ 31.82 |
Fuel Connector (11mm) | 1 | $ 31.82 | ||
| 22 | 08321-01107 Lock Washer
SKU: 08321-01107 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 23 | 08310-00107 Nut
SKU: 08310-00107 Weight: 0.060000 Brand: Price: $ 2.21 |
Nut | 1 | $ 2.21 | ||
| 24 | 65700-95271 Fuel Hose Joint (NLA)
SKU: 65700-95271 Weight: 0.100000 Brand: Price: $ 30.95 |
Fuel Hose Joint (NLA) | 1 | $ 30.95 | Optional | |
| 25 | 65720-98590 Fuel Tank Connector
SKU: 65720-98590 Weight: 0.080000 Brand: Price: $ 25.06 |
Fuel Tank Connector | 1 | $ 25.06 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
