Suzuki DT 40 Parts Listings 1993 to 1998

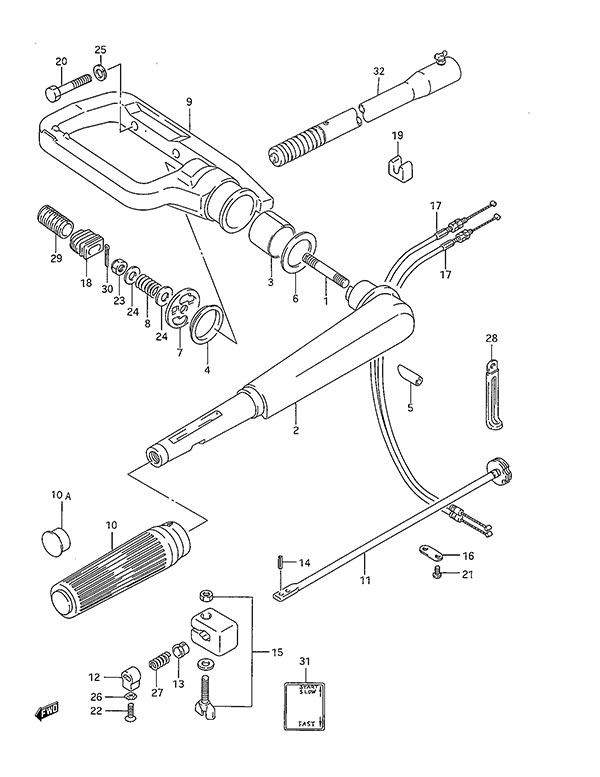

Fig. 34 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63127-97E00 Stud Bolt (NLA)
SKU: 63127-97E00 Weight: 0.100000 Brand: Price: $ 16.63 |
Stud Bolt (NLA) | 1 | $ 16.63 | ||
| 2 | 63111-97E05-0ED Tiller Handle
SKU: 63111-97E05-0ED Weight: 2.000000 Brand: Price: $ 175.67 |
Tiller Handle | 1 | $ 175.67 | ||
| 3 | 63115-97E00 Tiller Handle Bushing (NLA)
SKU: 63115-97E00 Weight: 0.060000 Brand: Price: $ 5.02 |
Tiller Handle Bushing (NLA) | 1 | $ 5.02 | ||
| 4 | 63116-97E00 Tiller Handle Washer (NLA)
SKU: 63116-97E00 Weight: 0.100000 Brand: Price: $ 10.81 |
Tiller Handle Washer (NLA) | 1 | $ 10.81 | ||
| 5 | 63117-96301 Stop Switch Wire Cover
SKU: 63117-96301 Weight: 0.060000 Brand: Price: $ 3.72 |
Stop Switch Wire Cover | 1 | $ 3.72 | ||
| 6 | 63117-97E01 Tiller Handle Washer (NLA)
SKU: 63117-97E01 Weight: 0.100000 Brand: Price: $ 8.02 |
Tiller Handle Washer (NLA) | 1 | $ 8.02 | ||
| 7 | 63125-97E01 Tiller Handle Plate (NLA)
SKU: 63125-97E01 Weight: 0.100000 Brand: Price: $ 11.14 |
Tiller Handle Plate (NLA) | 1 | $ 11.14 | ||
| 8 | 63126-97E01 Handle Stud Spring
SKU: 63126-97E01 Weight: 0.125000 Brand: Price: $ 11.33 |
Handle Stud Spring | 1 | $ 11.33 | ||
| 9 | 63131-97E03-0ED Tiller Handle Bracket
SKU: 63131-97E03-0ED Weight: 2.000000 Brand: Price: $ 236.62 |
Tiller Handle Bracket | 1 | $ 236.62 | ||
| 10 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 10A | 63213-94400 Stop Switch Cap
SKU: 63213-94400 Weight: 0.060000 Brand: Price: $ 7.13 |
Stop Switch Cap | 1 | $ 7.13 | ||
| 11 | 63220-96302 Handle Rod
SKU: 63220-96302 Weight: 1.000000 Brand: Price: $ 29.78 |
Handle Rod | 1 | $ 29.78 | ||
| 12 | 63223-92D00 Handle Rod Stopper
SKU: 63223-92D00 Weight: 0.060000 Brand: Price: $ 4.49 |
Handle Rod Stopper | 1 | $ 4.49 | ||
| 13 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 14 | 63227-93200 Handle Rod Pin
SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
| 15 | 63240-97E20 Handle Grip Adjuster
SKU: 63240-97E20 Weight: 0.250000 Brand: Price: $ 27.71 |
Handle Grip Adjuster | 1 | $ 27.71 | ||
| 16 | 63241-92D00 Handle Rod Support (NLA)
SKU: 63241-92D00 Weight: 0.060000 Brand: Price: $ 3.18 |
Handle Rod Support (NLA) | 1 | $ 3.18 | ||
| 17 | 63610-92L00 Throttle Cable Assembly
SKU: 63610-92L00 Weight: 0.200000 Brand: Price: $ 21.38 |
Throttle Cable Assembly | 2 | $ 21.38 | ||
| 18 | 63625-96300 Throttle Cable Grommet
SKU: 63625-96300 Weight: 0.180000 Brand: Price: $ 3.21 |
Throttle Cable Grommet | 1 | $ 3.21 | ||
| 19 | 63627-94400 Throttle Cable Guide (NLA)
SKU: 63627-94400 Weight: 0.100000 Brand: Price: $ 2.41 |
Throttle Cable Guide (NLA) | 1 | $ 2.41 | ||
| 20 | 09100-10155 Bolt (10x50)
SKU: 09100-10155 Weight: 0.250000 Brand: Price: $ 5.56 |
Bolt (10x50) | 2 | $ 5.56 | ||
| 21 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 22 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 23 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
| 24 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 25 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 26 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 27 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 28 | 09404-06036 Clamp (L:80)
SKU: 09404-06036 Weight: 0.100000 Brand: Price: $ 1.75 |
Clamp (L:80) | 1 | $ 1.75 | ||
| 29 | 63128-97E00 Handle Nut Cover
SKU: 63128-97E00 Weight: 0.100000 Brand: Price: $ 3.68 |
Handle Nut Cover | 1 | $ 3.68 | ||
| 30 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 31 | 63215-93400 Handle Grip Mark
SKU: 63215-93400 Weight: 0.060000 Brand: Price: $ 2.14 |
Handle Grip Mark | 1 | $ 2.14 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
