Suzuki DT 40 Parts Listings 1997 to 1998

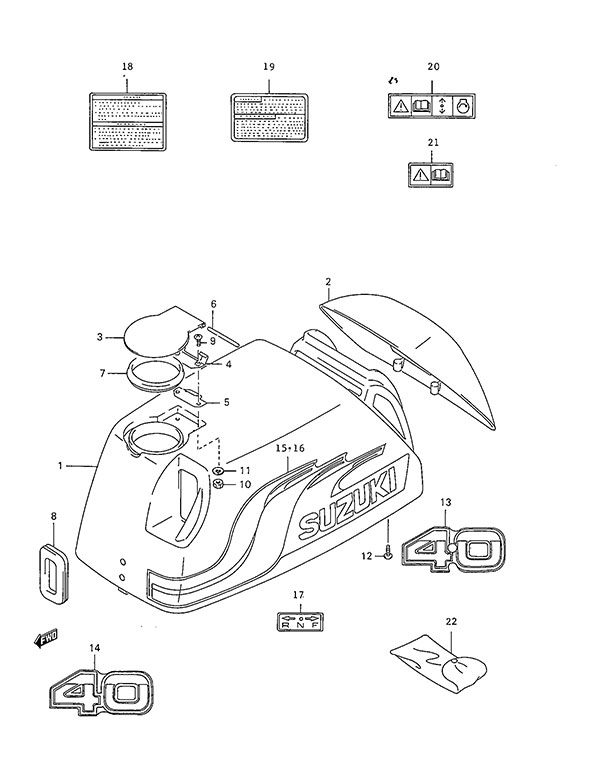

Fig. 32B - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61420-94853-0ED Engine Cover Set (NLA)
SKU: 61420-94853-0ED Weight: 20.000000 Brand: Price: $ 914.84 |
Engine Cover Set (NLA) | 1 | $ 914.84 | ||
| 2 | 61431-94400-019 Tilt Up Handle (NLA)
SKU: 61431-94400-019 Weight: 0.100000 Brand: Price: $ 53.98 |
Tilt Up Handle (NLA) | 1 | $ 53.98 | ||
| 3 | 61481-94420-0ED Oil Tank Filler Lid (NLA)
SKU: 61481-94420-0ED Weight: 0.100000 Brand: Price: $ 22.56 |
Oil Tank Filler Lid (NLA) | 1 | $ 22.56 | ||
| 4 | 61482-94411 Oil Filler Lid Hinge (NLA)
SKU: 61482-94411 Weight: 0.100000 Brand: Price: $ 4.37 |
Oil Filler Lid Hinge (NLA) | 1 | $ 4.37 | ||
| 5 | 61485-94411 Oil Filler Lid Spring (NLA)
SKU: 61485-94411 Weight: 0.100000 Brand: Price: $ 3.18 |
Oil Filler Lid Spring (NLA) | 1 | $ 3.18 | ||
| 6 | 61488-94400 Oil Filler Lid Pin (NLA)
SKU: 61488-94400 Weight: 0.100000 Brand: Price: $ 2.41 |
Oil Filler Lid Pin (NLA) | 1 | $ 2.41 | ||
| 7 | 61491-94400 Oil Tank Filler Lid Seal (NLA)
SKU: 61491-94400 Weight: 0.125000 Brand: Price: $ 5.55 |
Oil Tank Filler Lid Seal (NLA) | 1 | $ 5.55 | ||
| 8 | 61622-95500 Recoil Starter Seal
SKU: 61622-95500 Weight: 0.125000 Brand: Price: $ 10.05 |
Recoil Starter Seal | 1 | $ 10.05 | ||
| 9 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 10 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 11 | 09160-05024 Washer (5.5x16x1.5)
SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54 |
Washer (5.5x16x1.5) | 2 | $ 1.54 | ||
| 12 | 03541-0616A SCREW
SKU: 03541-0616A Weight: 0.100000 Brand: Price: $ 1.82 |
SCREW | 4 | $ 1.82 | ||
| 13 | 61435-97E20 Rear Emblem Mark (NLA)
SKU: 61435-97E20 Weight: 0.100000 Brand: Price: $ 10.29 |
Rear Emblem Mark (NLA) | 1 | $ 10.29 | ||
| 14 | 61435-97E40 Front Emblem Mark
SKU: 61435-97E40 Weight: 0.060000 Brand: Price: $ 10.63 |
Front Emblem Mark | 1 | $ 10.63 | ||
| 15 | 61440-97E00 Engine Cover Stripe Set (NLA)
SKU: 61440-97E00 Weight: 0.100000 Brand: Price: $ 64.95 |
Engine Cover Stripe Set (NLA) | 1 | $ 64.95 | ||
| 16-1 | 61443-97E00 Starboard Engine Cover Stripe (NLA)
SKU: 61443-97E00 Weight: 0.200000 Brand: Price: $ 54.44 |
Starboard Engine Cover Stripe (NLA) | 1 | $ 54.44 | ||
| 16-2 | 61453-97E00 Port Engine Cover Stripe (NLA)
SKU: 61453-97E00 Weight: 0.100000 Brand: Price: $ 54.44 |
Port Engine Cover Stripe (NLA) | 1 | $ 54.44 | ||
| 17 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 18 | 61581-98620 Engine Cover Label
SKU: 61581-98620 Weight: 0.060000 Brand: Price: $ 9.56 |
Engine Cover Label | 1 | $ 9.56 | ||
| 19 | 61582-98100 Warning Mark (NLA)
SKU: 61582-98100 Weight: 0.060000 Brand: Price: $ 4.70 |
Warning Mark (NLA) | 1 | $ 4.70 | ||
| 20 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | DT40C | |
| 21 | 69712-93E10 Label S.I.G.P
SKU: 69712-93E10 Weight: 0.100000 Brand: Price: $ 4.03 |
Label S.I.G.P | 1 | $ 4.03 | DT40TC, DT40RC | |
| 22-1 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 | ||
| 22-2 | 09800-01008 Tool Set (NLA)
SKU: 09800-01008 Weight: 2.000000 Brand: Price: $ 18.25 |
Tool Set (NLA) | 1 | $ 18.25 | Manual Starter |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
