Suzuki DT 40 Parts Listings 1989 to 1993

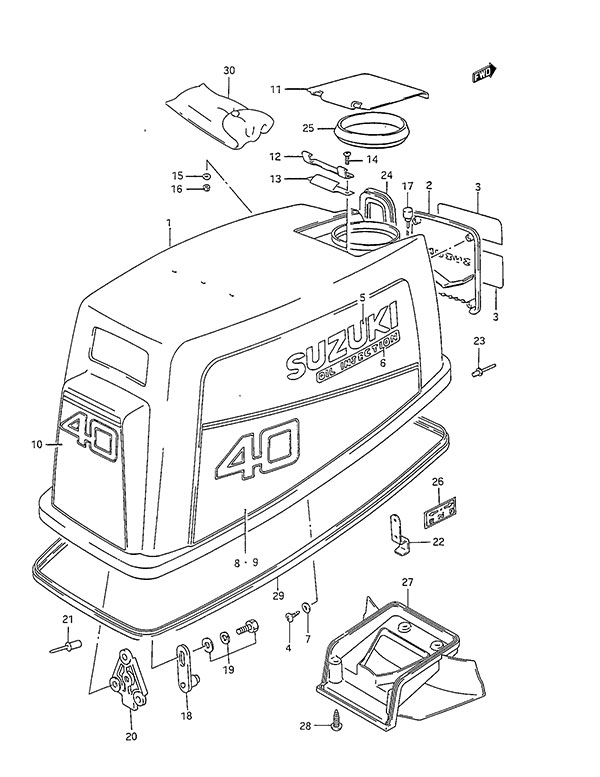

Fig. 32 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61410-94452-0ED Engine Cover
SKU: 61410-94452-0ED Weight: 20.000000 Brand: Price: $ 895.25 |
Engine Cover | 1 | $ 895.25 | ||
| 2 | 61421-94421-019 Front Emblem
SKU: 61421-94421-019 Weight: 0.200000 Brand: Price: $ 45.77 |
Front Emblem | 1 | $ 45.77 | ||
| 3 | 61422-95570-12R Front Emblem Mark (NLA)
SKU: 61422-95570-12R Weight: 0.060000 Brand: Price: $ 6.24 |
Front Emblem Mark (NLA) | 1 | $ 6.24 | ||
| 4 | 03241-0510A SCREW
SKU: 03241-0510A Weight: 0.200000 Brand: Price: $ 1.27 |
SCREW | 4 | $ 1.27 | ||
| 5 | 61441-95560-764 Suzuki Mark
SKU: 61441-95560-764 Weight: 0.060000 Brand: Price: $ 12.16 |
Suzuki Mark | 2 | $ 12.16 | ||
| 6 | 61442-94600-764 Oil Injection Mark
SKU: 61442-94600-764 Weight: 0.060000 Brand: Price: $ 4.06 |
Oil Injection Mark | 2 | $ 4.06 | ||
| 7 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 4 | $ 1.70 | ||
| 8 | 61443-94450-70G Starboard Engine Cover Decal (NLA)
SKU: 61443-94450-70G Weight: 0.060000 Brand: Price: $ 27.55 |
Starboard Engine Cover Decal (NLA) | 1 | $ 27.55 | ||
| 9 | 61453-94450-70G Port Engine Cover Decal (NLA)
SKU: 61453-94450-70G Weight: 0.100000 Brand: Price: $ 25.44 |
Port Engine Cover Decal (NLA) | 1 | $ 25.44 | ||
| 10 | 61435-94450-70G Rear Emblem Mark (NLA)
SKU: 61435-94450-70G Weight: 0.060000 Brand: Price: $ 11.31 |
Rear Emblem Mark (NLA) | 1 | $ 11.31 | ||
| 11 | 61481-94410-0ED Oil Tank Filler Lid (NLA)
SKU: 61481-94410-0ED Weight: 0.150000 Brand: Price: $ 26.88 |
Oil Tank Filler Lid (NLA) | 1 | $ 26.88 | ||
| 12 | 61482-94400 Oil Filler Lid Hinge
SKU: 61482-94400 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Hinge | 1 | $ 4.67 | ||
| 13 | 61485-94400 Oil Filler Lid Spring
SKU: 61485-94400 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Spring | 1 | $ 4.67 | ||
| 14 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 15 | 09160-05024 Washer (5.5x16x1.5)
SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54 |
Washer (5.5x16x1.5) | 2 | $ 1.54 | ||
| 16 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 17 | 09321-05019 Cushion
SKU: 09321-05019 Weight: 0.060000 Brand: Price: $ 2.74 |
Cushion | 2 | $ 2.74 | ||
| 18 | 61610-94420 Fastener
SKU: 61610-94420 Weight: 0.080000 Brand: Price: $ 16.13 |
Fastener | 1 | $ 16.13 | ||
| 19 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 20 | 61621-96303 Fastener Bracket (NLA)
SKU: 61621-96303 Weight: 0.060000 Brand: Price: $ 15.26 |
Fastener Bracket (NLA) | 1 | $ 15.26 | ||
| 21 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.82 |
Rivet | 3 | $ 2.82 | ||
| 22 | 61412-96300 Cover Hook (NLA)
SKU: 61412-96300 Weight: 0.100000 Brand: Price: $ 3.39 |
Cover Hook (NLA) | 1 | $ 3.39 | ||
| 23 | 09229-04018 Rivet
SKU: 09229-04018 Weight: 0.060000 Brand: Price: $ 1.72 |
Rivet | 2 | $ 1.72 | ||
| 24-1 | 61622-94400 Recoil Starter Seal (NLA)
SKU: 61622-94400 Weight: 0.100000 Brand: Price: $ 5.28 |
Recoil Starter Seal (NLA) | 1 | $ 5.28 | 1989 to 1990 | |
| 24-2 | 61622-95500 Recoil Starter Seal
SKU: 61622-95500 Weight: 0.125000 Brand: Price: $ 10.05 |
Recoil Starter Seal | 1 | $ 10.05 | 1991 to 1993 | |
| 25 | 61491-94400 Oil Tank Filler Lid Seal (NLA)
SKU: 61491-94400 Weight: 0.125000 Brand: Price: $ 5.55 |
Oil Tank Filler Lid Seal (NLA) | 1 | $ 5.55 | ||
| 26 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 27 | 61433-94422 Air Intake Inner Cover (NLA)
SKU: 61433-94422 Weight: 0.100000 Brand: Price: $ 24.87 |
Air Intake Inner Cover (NLA) | 1 | $ 24.87 | ||
| 28 | 03242-0412B SCREW
SKU: 03242-0412B Weight: 0.125000 Brand: Price: $ 2.59 |
SCREW | 4 | $ 2.59 | ||
| 29 | 61112-94303 Lower Engine Cover Rubber (NLA)
SKU: 61112-94303 Weight: 0.100000 Brand: Price: $ 49.78 |
Lower Engine Cover Rubber (NLA) | 1 | $ 49.78 | ||
| 30 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
