Suzuki DT 40 Parts Listings 1986 to 1988

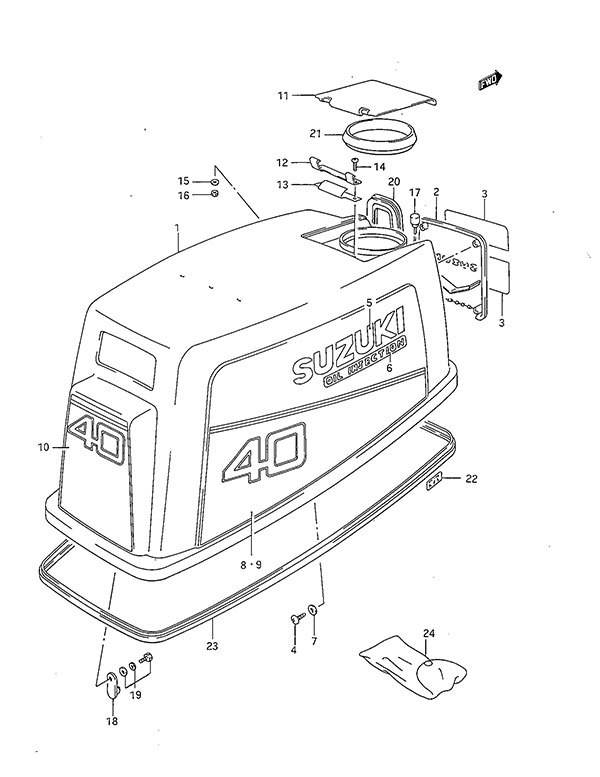

Fig. 31 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61410-94452-0ED Engine Cover
SKU: 61410-94452-0ED Weight: 20.000000 Brand: Price: $ 895.25 |
Engine Cover | 1 | $ 895.25 | 1986 to 1987 Requires Ref# 25 | |
| 1-2 | 61410-94452-0ED Engine Cover
SKU: 61410-94452-0ED Weight: 20.000000 Brand: Price: $ 895.25 |
Engine Cover | 1 | $ 895.25 | 1988 | |
| 2 | 61421-94421-019 Front Emblem
SKU: 61421-94421-019 Weight: 0.200000 Brand: Price: $ 45.77 |
Front Emblem | 1 | $ 45.77 | 1986 to 1987 | |
| 3 | 61422-95570-8EF Front Emblem Mark (NLA)
SKU: 61422-95570-8EF Weight: 0.060000 Brand: Price: $ 4.65 |
Front Emblem Mark (NLA) | 1 | $ 4.65 | ||
| 4-1 | 03241-0510A SCREW
SKU: 03241-0510A Weight: 0.200000 Brand: Price: $ 1.27 |
SCREW | 2 | $ 1.27 | Upper | |
| 4-2 | 03241-0512A SCREW
SKU: 03241-0512A Weight: 0.060000 Brand: Price: $ 1.34 |
SCREW | 2 | $ 1.34 | Lower | |
| 5 | 68112-43400-019 Suzuki Emblem
SKU: 68112-43400-019 Weight: 0.200000 Brand: Price: $ 12.45 |
Suzuki Emblem | 2 | $ 12.45 | ||
| 6 | 61442-94600-019 Oil Injection Mark (NLA)
SKU: 61442-94600-019 Weight: 0.062500 Brand: Price: $ 4.27 |
Oil Injection Mark (NLA) | 2 | $ 4.27 | ||
| 7 | 09160-05024 Washer (5.5x16x1.5)
SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54 |
Washer (5.5x16x1.5) | 4 | $ 1.54 | ||
| 8 | 61443-94450-70G Starboard Engine Cover Decal (NLA)
SKU: 61443-94450-70G Weight: 0.060000 Brand: Price: $ 27.55 |
Starboard Engine Cover Decal (NLA) | 1 | $ 27.55 | ||
| 9 | 61453-94450-70G Port Engine Cover Decal (NLA)
SKU: 61453-94450-70G Weight: 0.100000 Brand: Price: $ 25.44 |
Port Engine Cover Decal (NLA) | 1 | $ 25.44 | ||
| 10 | 61435-94450-70G Rear Emblem Mark (NLA)
SKU: 61435-94450-70G Weight: 0.060000 Brand: Price: $ 11.31 |
Rear Emblem Mark (NLA) | 1 | $ 11.31 | ||
| 11 | 61481-94410-0ED Oil Tank Filler Lid (NLA)
SKU: 61481-94410-0ED Weight: 0.150000 Brand: Price: $ 26.88 |
Oil Tank Filler Lid (NLA) | 1 | $ 26.88 | ||
| 12 | 61482-94400 Oil Filler Lid Hinge
SKU: 61482-94400 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Hinge | 1 | $ 4.67 | ||
| 13 | 61485-94400 Oil Filler Lid Spring
SKU: 61485-94400 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Spring | 1 | $ 4.67 | ||
| 14 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 15 | 09160-05024 Washer (5.5x16x1.5)
SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54 |
Washer (5.5x16x1.5) | 2 | $ 1.54 | ||
| 16 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 17 | 09321-05019 Cushion
SKU: 09321-05019 Weight: 0.060000 Brand: Price: $ 2.74 |
Cushion | 2 | $ 2.74 | ||
| 18 | 61610-94420 Fastener
SKU: 61610-94420 Weight: 0.080000 Brand: Price: $ 16.13 |
Fastener | 1 | $ 16.13 | ||
| 19 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 20 | 61622-94400 Recoil Starter Seal (NLA)
SKU: 61622-94400 Weight: 0.100000 Brand: Price: $ 5.28 |
Recoil Starter Seal (NLA) | 1 | $ 5.28 | ||
| 21 | 61491-94400 Oil Tank Filler Lid Seal (NLA)
SKU: 61491-94400 Weight: 0.125000 Brand: Price: $ 5.55 |
Oil Tank Filler Lid Seal (NLA) | 1 | $ 5.55 | ||
| 22 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 23 | 61112-94303 Lower Engine Cover Rubber (NLA)
SKU: 61112-94303 Weight: 0.100000 Brand: Price: $ 49.78 |
Lower Engine Cover Rubber (NLA) | 1 | $ 49.78 | ||
| 24 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 | ||
| 25 | 61631-94410 Lower Engine Cover Hook (NLA)
SKU: 61631-94410 Weight: 0.060000 Brand: Price: $ 6.60 |
Lower Engine Cover Hook (NLA) | 1 | $ 6.60 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
