Suzuki DT 40 Parts Listings 1997 to 1998

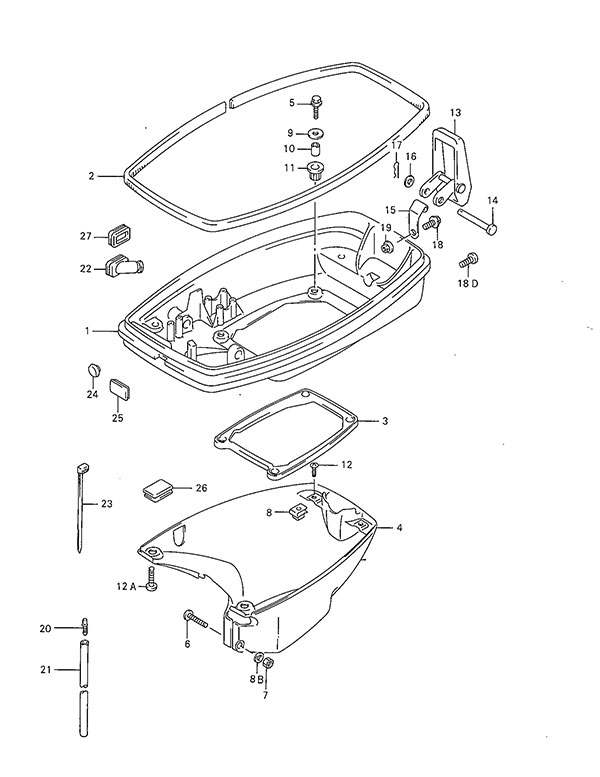

Fig. 30A - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61111-94452-0ED Lower Engine Cover (NLA)
SKU: 61111-94452-0ED Weight: 5.000000 Brand: Price: $ 475.93 |
Lower Engine Cover (NLA) | 1 | $ 475.93 | ||
| 2 | 61112-94420 Lower Engine Cover Rubber - NLA
SKU: 61112-94420 Weight: 1.000000 Brand: Price: $ 46.11 |
Lower Engine Cover Rubber - NLA | 1 | $ 46.11 | ||
| 3 | 61113-92L00 Engine Cover Lower Seal
SKU: 61113-92L00 Weight: 0.250000 Brand: Price: $ 25.06 |
Engine Cover Lower Seal | 1 | $ 25.06 | ||
| 4 | 61131-94402-0ED Engine Holder Cover
SKU: 61131-94402-0ED Weight: 1.000000 Brand: Price: $ 380.65 |
Engine Holder Cover | 1 | $ 380.65 | ||
| 5 | 09100-06121 Bolt (6x30) (NLA)
SKU: 09100-06121 Weight: 0.060000 Brand: Price: $ 1.22 |
Bolt (6x30) (NLA) | 4 | $ 1.22 | ||
| 6 | 09125-05126 Screw (5x45) (NLA)
SKU: 09125-05126 Weight: 0.100000 Brand: Price: $ 1.95 |
Screw (5x45) (NLA) | 1 | $ 1.95 | ||
| 7 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 8 | 09148-06015 Nut
SKU: 09148-06015 Weight: 0.060000 Brand: Price: $ 3.09 |
Nut | 2 | $ 3.09 | ||
| 8B | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | ||
| 9 | 09160-06104 Washer (6.5x24x2)
SKU: 09160-06104 Weight: 0.062500 Brand: Price: $ 2.64 |
Washer (6.5x24x2) | 4 | $ 2.64 | ||
| 10 | 09180-06295 Spacer
SKU: 09180-06295 Weight: 0.100000 Brand: Price: $ 2.89 |
Spacer | 4 | $ 2.89 | ||
| 11 | 09320-10035 Cushion (NLA)
SKU: 09320-10035 Weight: 0.100000 Brand: Price: $ 1.83 |
Cushion (NLA) | 4 | $ 1.83 | ||
| 12 | 02142-06207 SCREW 6X20
SKU: 02142-06207 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X20 | 2 | $ 1.38 | Rear | |
| 12A | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 2 | $ 2.09 | Front | |
| 13 | 61610-90L00 Fastener
SKU: 61610-90L00 Weight: 0.080000 Brand: Price: $ 40.56 |
Fastener | 1 | $ 40.56 | ||
| 14 | 61616-93EL0 Lever Pin
SKU: 61616-93EL0 Weight: 0.060000 Brand: Price: $ 7.55 |
Lever Pin | 1 | $ 7.55 | ||
| 15 | 61642-93902 Fastener Lever Holder (NLA)
SKU: 61642-93902 Weight: 0.100000 Brand: Price: $ 6.89 |
Fastener Lever Holder (NLA) | 1 | $ 6.89 | ||
| 16 | 09161-04012 Washer (4.2x11x1)
SKU: 09161-04012 Weight: 0.060000 Brand: Price: $ 1.51 |
Washer (4.2x11x1) | 1 | $ 1.51 | ||
| 17 | 09385-04004 Snap Pin
SKU: 09385-04004 Weight: 0.100000 Brand: Price: $ 1.74 |
Snap Pin | 1 | $ 1.74 | ||
| 18 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 18D | 02142-06207 SCREW 6X20
SKU: 02142-06207 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X20 | 1 | $ 1.38 | 1998 | |
| 19-2 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | 1998 | |
| 20 | 61155-94500 Water Inspection Tube
SKU: 61155-94500 Weight: 0.060000 Brand: Price: $ 3.47 |
Water Inspection Tube | 1 | $ 3.47 | ||
| 21 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->50 | |
| 22 | 33811-94400 Starter Cable Grommet
SKU: 33811-94400 Weight: 0.125000 Brand: Price: $ 4.84 |
Starter Cable Grommet | 1 | $ 4.84 | ||
| 19-1 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 1 | $ 2.25 | ||
| 23 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 24-1 | 09250-13005 Plug (NLA)
SKU: 09250-13005 Weight: 0.100000 Brand: Price: $ 2.03 |
Plug (NLA) | 2 | $ 2.03 | Oil Lamp Hole Engine Switch Hole | |
| 24-2 | 09250-12006 Cap
SKU: 09250-12006 Weight: 0.060000 Brand: Price: $ 2.00 |
Cap | 1 | $ 2.00 | 1998 | |
| 25-1 | 39669-94400 Lower Cover Plug
SKU: 39669-94400 Weight: 0.100000 Brand: Price: $ 4.32 |
Lower Cover Plug | 1 | $ 4.32 | Electric Starter | |
| 25-2 | 39669-94400 Lower Cover Plug
SKU: 39669-94400 Weight: 0.100000 Brand: Price: $ 4.32 |
Lower Cover Plug | 2 | $ 4.32 | Manual Starter | |
| 26 | 09250-33001 Cap
SKU: 09250-33001 Weight: 0.100000 Brand: Price: $ 3.72 |
Cap | 1 | $ 3.72 | Manual Starter | |
| 27 | 63625-94300 Throttle Cable Cap
SKU: 63625-94300 Weight: 0.060000 Brand: Price: $ 3.35 |
Throttle Cable Cap | 1 | $ 3.35 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
