Suzuki DT 40 Parts Listings 1986 to 1996

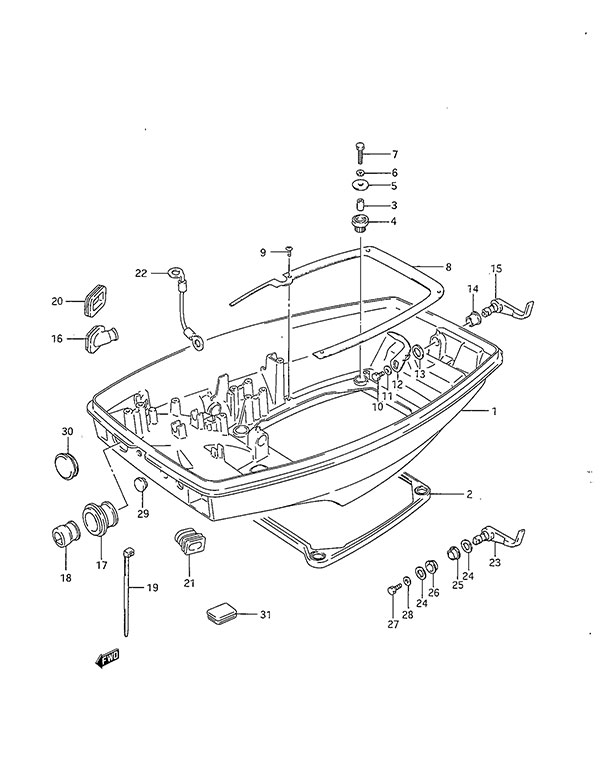

Fig. 30 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61111-94432-0ED Lower Engine Cover (NLA)
SKU: 61111-94432-0ED Weight: 50.000000 Brand: Price: $ 304.04 |
Lower Engine Cover (NLA) | 1 | $ 304.04 | ||
| 2 | 61113-92L00 Engine Cover Lower Seal
SKU: 61113-92L00 Weight: 0.250000 Brand: Price: $ 25.06 |
Engine Cover Lower Seal | 1 | $ 25.06 | ||
| 3 | 09180-06295 Spacer
SKU: 09180-06295 Weight: 0.100000 Brand: Price: $ 2.89 |
Spacer | 4 | $ 2.89 | ||
| 4 | 09320-10035 Cushion (NLA)
SKU: 09320-10035 Weight: 0.100000 Brand: Price: $ 1.83 |
Cushion (NLA) | 4 | $ 1.83 | ||
| 5 | 09160-06104 Washer (6.5x24x2)
SKU: 09160-06104 Weight: 0.062500 Brand: Price: $ 2.64 |
Washer (6.5x24x2) | 4 | $ 2.64 | ||
| 6 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 4 | $ 1.49 | ||
| 7 | 09100-06121 Bolt (6x30) (NLA)
SKU: 09100-06121 Weight: 0.060000 Brand: Price: $ 1.22 |
Bolt (6x30) (NLA) | 4 | $ 1.22 | ||
| 8 | 61138-94402 Water Cover (NLA)
SKU: 61138-94402 Weight: 0.100000 Brand: Price: $ 10.59 |
Water Cover (NLA) | 1 | $ 10.59 | ||
| 9 | 03241-0510A SCREW
SKU: 03241-0510A Weight: 0.200000 Brand: Price: $ 1.27 |
SCREW | 4 | $ 1.27 | ||
| 10 | 01500-06127 BOLT
SKU: 01500-06127 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | ||
| 11 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 1 | $ 1.78 | ||
| 12 | 61631-94410 Lower Engine Cover Hook (NLA)
SKU: 61631-94410 Weight: 0.060000 Brand: Price: $ 6.60 |
Lower Engine Cover Hook (NLA) | 1 | $ 6.60 | ||
| 13 | 09164-13005 Wave Washer
SKU: 09164-13005 Weight: 0.060000 Brand: Price: $ 3.38 |
Wave Washer | 1 | $ 3.38 | ||
| 14 | 09306-13007 Bushing
SKU: 09306-13007 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 1 | $ 2.81 | ||
| 15 | 61633-93930-0ED Hook Lever
SKU: 61633-93930-0ED Weight: 0.125000 Brand: Price: $ 52.45 |
Hook Lever | 1 | $ 52.45 | ||
| 16 | 33811-94400 Starter Cable Grommet
SKU: 33811-94400 Weight: 0.125000 Brand: Price: $ 4.84 |
Starter Cable Grommet | 1 | $ 4.84 | ||
| 17 | 36612-94421 Remocon Grommet
SKU: 36612-94421 Weight: 0.200000 Brand: Price: $ 9.43 |
Remocon Grommet | 1 | $ 9.43 | DT40TC, DT40RC Requires Ref# 32 | |
| 18 | 36612-94421 Remocon Grommet
SKU: 36612-94421 Weight: 0.200000 Brand: Price: $ 9.43 |
Remocon Grommet | 1 | $ 9.43 | DT40TC, DT40RC | |
| 19 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 20 | 63625-94300 Throttle Cable Cap
SKU: 63625-94300 Weight: 0.060000 Brand: Price: $ 3.35 |
Throttle Cable Cap | 1 | $ 3.35 | DT40TC | |
| 21 | 63625-96300 Throttle Cable Grommet
SKU: 63625-96300 Weight: 0.180000 Brand: Price: $ 3.21 |
Throttle Cable Grommet | 1 | $ 3.21 | ||
| 22 | 36895-94400 Wire Lead (NLA)
SKU: 36895-94400 Weight: 0.100000 Brand: Price: $ 1.61 |
Wire Lead (NLA) | 1 | $ 1.61 | ||
| 23 | 61633-93930-0ED Hook Lever
SKU: 61633-93930-0ED Weight: 0.125000 Brand: Price: $ 52.45 |
Hook Lever | 1 | $ 52.45 | 1990 to 1996 | |
| 24 | 09164-13005 Wave Washer
SKU: 09164-13005 Weight: 0.060000 Brand: Price: $ 3.38 |
Wave Washer | 2 | $ 3.38 | 1990 to 1996 | |
| 25 | 09306-13005 Bushing
SKU: 09306-13005 Weight: 0.060000 Brand: Price: $ 2.86 |
Bushing | 1 | $ 2.86 | 1990 to 1996 | |
| 26 | 09306-13006 Bushing (NLA)
SKU: 09306-13006 Weight: 0.100000 Brand: Price: $ 1.61 |
Bushing (NLA) | 1 | $ 1.61 | 1990 to 1996 | |
| 27 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | 1990 to 1996 | |
| 28 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 1 | $ 1.78 | 1990 to 1996 | |
| 29 | 09250-13005 Plug (NLA)
SKU: 09250-13005 Weight: 0.100000 Brand: Price: $ 2.03 |
Plug (NLA) | 2 | $ 2.03 | ||
| 30 | 09250-33001 Cap
SKU: 09250-33001 Weight: 0.100000 Brand: Price: $ 3.72 |
Cap | 1 | $ 3.72 | Manual Starter | |
| 31 | 39669-94400 Lower Cover Plug
SKU: 39669-94400 Weight: 0.100000 Brand: Price: $ 4.32 |
Lower Cover Plug | 1 | $ 4.32 | ||
| 32 | 09250-08001 CAP
SKU: 09250-08001 Weight: 0.100000 Brand: Price: $ 1.89 |
CAP | 1 | $ 1.89 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
