Suzuki DT 40 Parts Listings 1986 to 1998

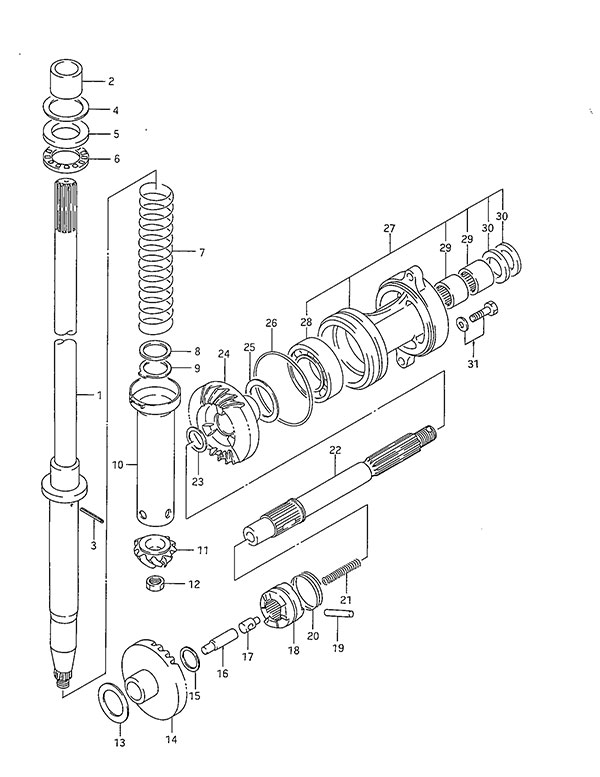

Fig. 29 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57110-94411 Drive Shaft (S) (NLA)
SKU: 57110-94411 Weight: 10.000000 Brand: Price: $ 178.12 |
Drive Shaft (S) (NLA) | 1 | $ 178.12 | ||
| 1-2 | 57110-94441 Drive Shaft (L)
SKU: 57110-94441 Weight: 10.000000 Brand: Price: $ 394.36 |
Drive Shaft (L) | 1 | $ 394.36 | ||
| 2 | 57130-94301 Drive Shaft Bushing
SKU: 57130-94301 Weight: 0.060000 Brand: Price: $ 9.20 |
Drive Shaft Bushing | 1 | $ 9.20 | Type: L | |
| 3 | 09205-03019 Spring Pin (3x10)
SKU: 09205-03019 Weight: 0.060000 Brand: Price: $ 1.73 |
Spring Pin (3x10) | 1 | $ 1.73 | ||
| 4-1 | 09181-30186 Shim (0.50)
SKU: 09181-30186 Weight: 0.060000 Brand: Price: $ 3.61 |
Shim (0.50) | 1 | $ 3.61 | ||
| 4-2 | 09181-30187 Shim (0.60)
SKU: 09181-30187 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.60) | 1 | $ 3.52 | ||
| 4-3 | 09181-30188 Shim (0.70)
SKU: 09181-30188 Weight: 0.060000 Brand: Price: $ 3.58 |
Shim (0.70) | 1 | $ 3.58 | ||
| 4-4 | 09181-30190 Shim (0.80)
SKU: 09181-30190 Weight: 0.060000 Brand: Price: $ 3.61 |
Shim (0.80) | 1 | $ 3.61 | ||
| 4-5 | 09181-30192 Shim (0.90)
SKU: 09181-30192 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.90) | 1 | $ 3.52 | ||
| 4-6 | 09181-30192 Shim (0.90)
SKU: 09181-30192 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.90) | 1 | $ 3.52 | 1997 to 1997 | |
| 4-7 | 08211-30421 Shim (1.00) (NLA)
SKU: 08211-30421 Weight: 0.060000 Brand: Price: $ 1.74 |
Shim (1.00) (NLA) | 1 | $ 1.74 | ||
| 5 | 09160-26015 Washer (26.2x42x4.0)
SKU: 09160-26015 Weight: 0.060000 Brand: Price: $ 22.84 |
Washer (26.2x42x4.0) | 1 | $ 22.84 | ||
| 6 | 09263-25062 BT 25x42x5 Bearing
SKU: 09263-25062 Weight: 0.060000 Brand: Price: $ 71.17 |
BT 25x42x5 Bearing | 1 | $ 71.17 | ||
| 7 | 09440-30005 Spring
SKU: 09440-30005 Weight: 0.100000 Brand: Price: $ 5.60 |
Spring | 1 | $ 5.60 | ||
| 8 | 09160-24020 Washer (24x33x2.5)
SKU: 09160-24020 Weight: 0.060000 Brand: Price: $ 4.78 |
Washer (24x33x2.5) | 1 | $ 4.78 | ||
| 8 | 09166-25006 Washer
SKU: 09166-25006 Weight: 0.060000 Brand: Price: $ 3.71 |
Washer | 1 | $ 3.71 | ||
| 10 | 57133-94400 Drive Shaft Spring Collar
SKU: 57133-94400 Weight: 0.100000 Brand: Price: $ 14.68 |
Drive Shaft Spring Collar | 1 | $ 14.68 | ||
| 11 | 57311-94410 Pinion Gear
SKU: 57311-94410 Weight: 0.250000 Brand: Price: $ 122.46 |
Pinion Gear | 1 | $ 122.46 | ||
| 12 | 09140-12034 Pinion Nut
SKU: 09140-12034 Weight: 0.060000 Brand: Price: $ 3.02 |
Pinion Nut | 1 | $ 3.02 | ||
| 13-1 | 09181-30186 Shim (0.50)
SKU: 09181-30186 Weight: 0.060000 Brand: Price: $ 3.61 |
Shim (0.50) | 1 | $ 3.61 | ||
| 13-2 | 09181-30187 Shim (0.60)
SKU: 09181-30187 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.60) | 1 | $ 3.52 | ||
| 13-3 | 09181-30188 Shim (0.70)
SKU: 09181-30188 Weight: 0.060000 Brand: Price: $ 3.58 |
Shim (0.70) | 1 | $ 3.58 | ||
| 13-4 | 09181-30190 Shim (0.80)
SKU: 09181-30190 Weight: 0.060000 Brand: Price: $ 3.61 |
Shim (0.80) | 1 | $ 3.61 | ||
| 13-5 | 09181-30192 Shim (0.90)
SKU: 09181-30192 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.90) | 1 | $ 3.52 | ||
| 13-6 | 09181-30192 Shim (0.90)
SKU: 09181-30192 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.90) | 1 | $ 3.52 | 1997 to 1998 | |
| 13-7 | 08211-30421 Shim (1.00) (NLA)
SKU: 08211-30421 Weight: 0.060000 Brand: Price: $ 1.74 |
Shim (1.00) (NLA) | 1 | $ 1.74 | ||
| 14 | 57510-94410 Forward Gear
SKU: 57510-94410 Weight: 1.010000 Brand: Price: $ 162.27 |
Forward Gear | 1 | $ 162.27 | ||
| 15-1 | 08211-20263 Thrust Washer (2.00)
SKU: 08211-20263 Weight: 0.060000 Brand: Price: $ 2.45 |
Thrust Washer (2.00) | 1 | $ 2.45 | ||
| 15-2 | 08211-20264 Thrust Washer (2.20)
SKU: 08211-20264 Weight: 0.060000 Brand: Price: $ 2.52 |
Thrust Washer (2.20) | 1 | $ 2.52 | ||
| 16 | 57631-95303 Push Rod
SKU: 57631-95303 Weight: 0.060000 Brand: Price: $ 13.48 |
Push Rod | 1 | $ 13.48 | ||
| 17 | 57634-88L00 Push Pin
SKU: 57634-88L00 Weight: 0.060000 Brand: Price: $ 8.51 |
Push Pin | 1 | $ 8.51 | ||
| 18-1 | 57621-87J03 Clutch Dog Shifter
SKU: 57621-87J03 Weight: 0.500000 Brand: Price: $ 73.80 |
Clutch Dog Shifter | 1 | $ 73.80 | S/N 716481 Older Requires Ref# 20-2 | |
| 18-2 | 57621-87J03 Clutch Dog Shifter
SKU: 57621-87J03 Weight: 0.500000 Brand: Price: $ 73.80 |
Clutch Dog Shifter | 1 | $ 73.80 | S/N 716482 Newer | |
| 19 | 09202-05022 Clutch Dog Shifter Pin
SKU: 09202-05022 Weight: 0.060000 Brand: Price: $ 3.47 |
Clutch Dog Shifter Pin | 1 | $ 3.47 | ||
| 20-1 | 09440-41002 Clutch Dog Spring (NLA)
SKU: 09440-41002 Weight: 0.060000 Brand: Price: $ 2.88 |
Clutch Dog Spring (NLA) | 1 | $ 2.88 | S/N 716481 Older | |
| 20-2 | 09440-40002 Clutch Dog Spring
SKU: 09440-40002 Weight: 0.060000 Brand: Price: $ 3.21 |
Clutch Dog Spring | 1 | $ 3.21 | S/N 716482 Newer | |
| 21 | 09440-08034 Return Spring
SKU: 09440-08034 Weight: 0.125000 Brand: Price: $ 2.16 |
Return Spring | 1 | $ 2.16 | ||
| 22-1 | 57610-94403 Propeller Shaft Assembly
SKU: 57610-94403 Weight: 1.820000 Brand: Price: $ 176.87 |
Propeller Shaft Assembly | 1 | $ 176.87 | S/N 233195 Older Requires Ref# 32 | |
| 22-2 | 57610-94403 Propeller Shaft Assembly
SKU: 57610-94403 Weight: 1.820000 Brand: Price: $ 176.87 |
Propeller Shaft Assembly | 1 | $ 176.87 | S/N 233196 Newer | |
| 23-1 | 09160-22018 Washer (1.80)
SKU: 09160-22018 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (1.80) | 1 | $ 3.89 | ||
| 23-2 | 09160-22019 Washer (1.90)
SKU: 09160-22019 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (1.90) | 1 | $ 3.89 | ||
| 23-3 | 09160-22020 Washer (2.00)
SKU: 09160-22020 Weight: 0.060000 Brand: Price: $ 4.13 |
Washer (2.00) | 1 | $ 4.13 | ||
| 23-4 | 09160-22021 Washer (2.10)
SKU: 09160-22021 Weight: 0.060000 Brand: Price: $ 4.13 |
Washer (2.10) | 1 | $ 4.13 | ||
| 23-5 | 09160-22022 Washer (2.20)
SKU: 09160-22022 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (2.20) | 1 | $ 3.89 | ||
| 23-6 | 09160-22023 Washer (2.30)
SKU: 09160-22023 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (2.30) | 1 | $ 3.89 | ||
| 24 | 57521-94401 Reverse Gear
SKU: 57521-94401 Weight: 1.000000 Brand: Price: $ 177.84 |
Reverse Gear | 1 | $ 177.84 | ||
| 25-1 | 08221-35455 Shim (0.50)
SKU: 08221-35455 Weight: 0.060000 Brand: Price: $ 3.31 |
Shim (0.50) | 1 | $ 3.31 | ||
| 25-2 | 09181-35131 Shim (0.60)
SKU: 09181-35131 Weight: 0.060000 Brand: Price: $ 3.38 |
Shim (0.60) | 1 | $ 3.38 | ||
| 25-3 | 09181-35132 Shim (0.70)
SKU: 09181-35132 Weight: 0.060000 Brand: Price: $ 3.38 |
Shim (0.70) | 1 | $ 3.38 | ||
| 25-4 | 09181-35132 Shim (0.70)
SKU: 09181-35132 Weight: 0.060000 Brand: Price: $ 3.38 |
Shim (0.70) | 1 | $ 3.38 | 1997 to 1998 | |
| 25-5 | 08221-35456 Shim (0.80)
SKU: 08221-35456 Weight: 0.100000 Brand: Price: $ 3.40 |
Shim (0.80) | 1 | $ 3.40 | ||
| 25-6 | 09181-35136 Shim (0.90)
SKU: 09181-35136 Weight: 0.060000 Brand: Price: $ 2.49 |
Shim (0.90) | 1 | $ 2.49 | ||
| 25-7 | 08211-35451 Shim (1.00)
SKU: 08211-35451 Weight: 0.100000 Brand: Price: $ 3.40 |
Shim (1.00) | 1 | $ 3.40 | ||
| 26 | 09280-75001 O-Ring
SKU: 09280-75001 Weight: 0.060000 Brand: Price: $ 4.85 |
O-Ring | 1 | $ 4.85 | ||
| 27 | 56120-94321-0ED Propeller Shaft Bearing Housing (NLA)
SKU: 56120-94321-0ED Weight: 1.860000 Brand: Price: $ 185.86 |
Propeller Shaft Bearing Housing (NLA) | 1 | $ 185.86 | ||
| 28 | 09262-35021-0A0 Bearing (35x62x14)
SKU: 09262-35021-0A0 Weight: 0.350000 Brand: Price: $ 36.35 |
Bearing (35x62x14) | 1 | $ 36.35 | ||
| 39 | 09263-22020 Bearing (22.225x28.575.19.05)
SKU: 09263-22020 Weight: 0.080000 Brand: Price: $ 19.54 |
Bearing (22.225x28.575.19.05) | 2 | $ 19.54 | ||
| 30 | 09289-22007 Oil Seal (21.2x35x5)
SKU: 09289-22007 Weight: 0.060000 Brand: Price: $ 5.22 |
Oil Seal (21.2x35x5) | 2 | $ 5.22 | ||
| 31 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 2 | $ 5.05 | ||
| 32 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
