Suzuki DT 40 Parts Listings 1986 to 1998

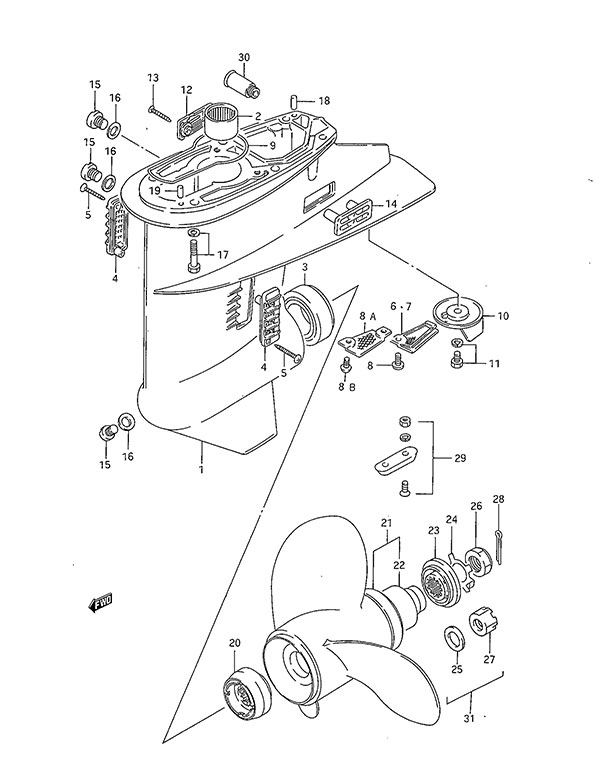

Fig. 28 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 55100-94421-02M Gear Case Housing (NLA)
SKU: 55100-94421-02M Weight: 0.100000 Brand: Price: $ 326.40 |
Gear Case Housing (NLA) | 1 | $ 326.40 | S/N 464115 Older | |
| 1-2 | 55100-94431-0ED Gear Case Housing (NLA)
SKU: 55100-94431-0ED Weight: 0.100000 Brand: Price: $ 352.95 |
Gear Case Housing (NLA) | 1 | $ 352.95 | S/N 464116 Newer | |
| 2 | 09263-22039 Bearing (22x30x30)
SKU: 09263-22039 Weight: 0.140000 Brand: Price: $ 75.96 |
Bearing (22x30x30) | 1 | $ 75.96 | ||
| 3 | 09265-30004 Bearing (30x62x17.25)
SKU: 09265-30004 Weight: 0.540000 Brand: Price: $ 59.58 |
Bearing (30x62x17.25) | 1 | $ 59.58 | ||
| 4 | 17631-96320 Water Filter
SKU: 17631-96320 Weight: 0.060000 Brand: Price: $ 7.63 |
Water Filter | 2 | $ 7.63 | ||
| 5 | 03142-04309 SCREW 4 X 30
SKU: 03142-04309 Weight: 0.060000 Brand: Price: $ 2.34 |
SCREW 4 X 30 | 2 | $ 2.34 | ||
| 6 | 17635-95501 Sub Water Filter (NLA)
SKU: 17635-95501 Weight: 0.060000 Brand: Price: $ 4.65 |
Sub Water Filter (NLA) | 1 | $ 4.65 | ||
| 7 | 17635-95510 Sub Water Seal Plate
SKU: 17635-95510 Weight: 0.100000 Brand: Price: $ 5.67 |
Sub Water Seal Plate | 1 | $ 5.67 | ||
| 8 | 09125-06053 Screw (6x16)
SKU: 09125-06053 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw (6x16) | 1 | $ 2.20 | ||
| 8A | 17635-87E00 Sub Water Filter
SKU: 17635-87E00 Weight: 0.060000 Brand: Price: $ 5.02 |
Sub Water Filter | 1 | $ 5.02 | 1994 to 1998 | |
| 8B | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | 1994 to 1998 | |
| 9 | 55122-88L00 Gear Case Seal Ring
SKU: 55122-88L00 Weight: 0.060000 Brand: Price: $ 7.61 |
Gear Case Seal Ring | 1 | $ 7.61 | ||
| 10 | 55125-95500 Trim Tab Zinc Anode
SKU: 55125-95500 Weight: 0.400000 Brand: Price: $ 19.74 |
Trim Tab Zinc Anode | 1 | $ 19.74 | ||
| 11 | 09117-08109 Bolt (8x16)
SKU: 09117-08109 Weight: 0.060000 Brand: Price: $ 3.09 |
Bolt (8x16) | 1 | $ 3.09 | ||
| 12 | 55117-94401 Starboard Gear Case Cover (NLA)
SKU: 55117-94401 Weight: 0.100000 Brand: Price: $ 2.92 |
Starboard Gear Case Cover (NLA) | 1 | $ 2.92 | ||
| 13 | 03141-0420A SCREW
SKU: 03141-0420A Weight: 0.060000 Brand: Price: $ 1.48 |
SCREW | 2 | $ 1.48 | ||
| 14 | 55112-94401 Gear Case Cover (NLA)
SKU: 55112-94401 Weight: 5.000000 Brand: Price: $ 4.60 |
Gear Case Cover (NLA) | 1 | $ 4.60 | ||
| 15 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 3 | $ 6.59 | ||
| 16 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 3 | $ 1.60 | ||
| 17 | 09116-08131 Bolt (8x45)
SKU: 09116-08131 Weight: 0.060000 Brand: Price: $ 4.89 |
Bolt (8x45) | 6 | $ 4.89 | ||
| 18 | 09202-06027 Pin (6x23)
SKU: 09202-06027 Weight: 0.060000 Brand: Price: $ 1.62 |
Pin (6x23) | 1 | $ 1.62 | ||
| 19 | 09202-06025 Pin (6x17)
SKU: 09202-06025 Weight: 0.060000 Brand: Price: $ 1.62 |
Pin (6x17) | 1 | $ 1.62 | ||
| 20 | 57632-95320 Propeller Stopper
SKU: 57632-95320 Weight: 0.440000 Brand: Price: $ 56.14 |
Propeller Stopper | 1 | $ 56.14 | ||
| 21-1 | 58100-88L03-019 S900 Propeller 3x11-1/2x9 *
SKU: 58100-88L03-019 Weight: 5.000000 Brand: Price: $ 167.91 |
S900 Propeller 3x11-1/2x9 * | 1 | $ 167.91 | ||
| 21-2 | 58100-88LD0-019 S1000 Propeller 3x11-1/2x10
SKU: 58100-88LD0-019 Weight: 5.000000 Brand: Price: $ 182.95 |
S1000 Propeller 3x11-1/2x10 | 1 | $ 182.95 | ||
| 21-3 | 58100-88LE0-019 S1100 Propeller 3x11-1/2x11
SKU: 58100-88LE0-019 Weight: 5.000000 Brand: Price: $ 188.66 |
S1100 Propeller 3x11-1/2x11 | 1 | $ 188.66 | ||
| 21-4 | 58100-88LA0-019 S1200 Propeller 3x11-5/8x12
SKU: 58100-88LA0-019 Weight: 5.000000 Brand: Price: $ 201.26 |
S1200 Propeller 3x11-5/8x12 | 1 | $ 201.26 | ||
| 21-5 | 58100-88LB0-019 S1301 Propeller 3x11-1/2x13
SKU: 58100-88LB0-019 Weight: 5.000000 Brand: Price: $ 188.27 |
S1301 Propeller 3x11-1/2x13 | 1 | $ 188.27 | ||
| 21-6 | 58100-88LQ0-019 14P Propeller 3X11-3/8X14
SKU: 58100-88LQ0-019 Weight: 0.000000 Brand: Price: $ 171.14 |
14P Propeller 3X11-3/8X14 | 1 | $ 171.14 | ||
| 21-7 | 58100-88LR0-019 15P DF40A/50A/6
SKU: 58100-88LR0-019 Weight: 0.000000 Brand: Price: $ 166.16 |
15P DF40A/50A/6 | 1 | $ 166.16 | ||
| 21-8 | 58100-88L72-019 S1600 Propeller 3x11-1/8x16
SKU: 58100-88L72-019 Weight: 5.000000 Brand: Price: $ 171.14 |
S1600 Propeller 3x11-1/8x16 | 1 | $ 171.14 | ||
| 21-9 | 58100-88LF0-019 S1700 Propeller 3x11x17
SKU: 58100-88LF0-019 Weight: 5.000000 Brand: Price: $ 171.14 |
S1700 Propeller 3x11x17 | 1 | $ 171.14 | ||
| 21-10 | 990C0-00501-12P S/S Propeller 3x11-3/4x12 (NLA)
SKU: 990C0-00501-12P Weight: 8.250000 Brand: Price: $ 352.92 |
S/S Propeller 3x11-3/4x12 (NLA) | 1 | $ 352.92 | ||
| 21-11 | 990C0-00501-13P S/S Propeller 3x11-3/4x13 (NLA)
SKU: 990C0-00501-13P Weight: 8.250000 Brand: Price: $ 352.92 |
S/S Propeller 3x11-3/4x13 (NLA) | 1 | $ 352.92 | ||
| 21-12 | 990C0-00501-14P S/S Propeller 3x11-3/4x14 (NLA)
SKU: 990C0-00501-14P Weight: 8.250000 Brand: Price: $ 352.92 |
S/S Propeller 3x11-3/4x14 (NLA) | 1 | $ 352.92 | ||
| 22 | 58120-88L01 Propeller Bushing
SKU: 58120-88L01 Weight: 0.500000 Brand: Price: $ 36.45 |
Propeller Bushing | 1 | $ 36.45 | ||
| 23 | 57633-94301 Propeller Nut Spacer
SKU: 57633-94301 Weight: 0.380000 Brand: Price: $ 16.59 |
Propeller Nut Spacer | 1 | $ 16.59 | ||
| 24 | 57635-95300 Propeller Nut Washer
SKU: 57635-95300 Weight: 0.060000 Brand: Price: $ 3.85 |
Propeller Nut Washer | 1 | $ 3.85 | ||
| 25 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | S/N 233196 Newer | |
| 26 | 09159-18004 Nut
SKU: 09159-18004 Weight: 0.080000 Brand: Price: $ 21.41 |
Nut | 1 | $ 21.41 | ||
| 27 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | S/N 233196 Newer | |
| 28 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 32 | 25700-88L03 Gear Case Seal Kit DT40c - DF40 / DF50 / 60A
SKU: 25700-88L03 Weight: 0.250000 Brand: Price: $ 30.85 |
Gear Case Seal Kit DT40c - DF40 / DF50 / 60A | 1 | $ 30.85 | Opt: Not Shown | |
| 29 | 55300-95500 Zinc Anode
SKU: 55300-95500 Weight: 0.240000 Brand: Price: $ 16.96 |
Zinc Anode | 1 | $ 16.96 | Optional | |
| 30-1 | 55181-95200 Flush Hose Attachment
SKU: 55181-95200 Weight: 0.080000 Brand: Price: $ 7.16 |
Flush Hose Attachment | 1 | $ 7.16 | ||
| 30-2 | 55182-95200 Flush Hose Attachment (NLA)
SKU: 55182-95200 Weight: 0.100000 Brand: Price: $ 11.73 |
Flush Hose Attachment (NLA) | 1 | $ 11.73 | Optional | |
| 31 | 57630-94301 Propeller Hardware Kit DT40/DT55/DT65/
DF40/DF50/DF60A
SKU: 57630-94301 Weight: 0.540000 Brand: Price: $ 28.34 |
Propeller Hardware Kit DT40/DT55/DT65/ DF40/DF50/DF60A | 1 | $ 28.34 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
