Suzuki DT 40 Parts Listings 1986 to 1998

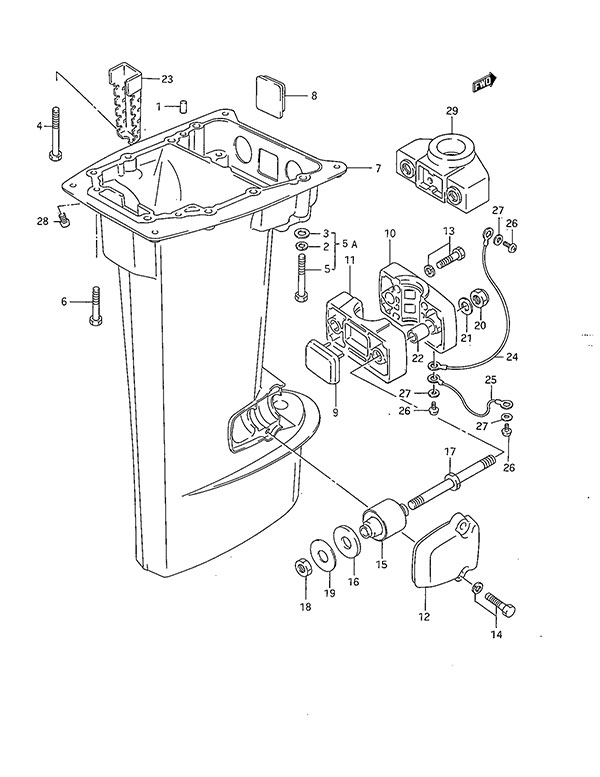

Fig. 27 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 2 | $ 2.07 | ||
| 2 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 3 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | ||
| 4 | 09118-08172 Bolt (8x85)
SKU: 09118-08172 Weight: 0.150000 Brand: Price: $ 7.03 |
Bolt (8x85) | 1 | $ 7.03 | ||
| 5 | 09118-08171 Bolt (8x75)
SKU: 09118-08171 Weight: 0.200000 Brand: Price: $ 16.94 |
Bolt (8x75) | 2 | $ 16.94 | 1986 to 1996 | |
| 5A | 09118-08171 Bolt (8x75)
SKU: 09118-08171 Weight: 0.200000 Brand: Price: $ 16.94 |
Bolt (8x75) | 2 | $ 16.94 | 1997 to 1998 | |
| 6 | 09118-08106 Bolt (8x50)
SKU: 09118-08106 Weight: 0.200000 Brand: Price: $ 5.65 |
Bolt (8x50) | 6 | $ 5.65 | ||
| 7-1 | 52111-94441-02M Drive Shaft Housing (S) (NLA)
SKU: 52111-94441-02M Weight: 0.100000 Brand: Price: $ 114.92 |
Drive Shaft Housing (S) (NLA) | 1 | $ 114.92 | 1986 to 1988 | |
| 7-2 | 52110-97E01-0ED Drive Shaft Housing (S) (NLA)
SKU: 52110-97E01-0ED Weight: 10.000000 Brand: Price: $ 315.01 |
Drive Shaft Housing (S) (NLA) | 1 | $ 315.01 | 1989 to 1998 | |
| 7-3 | 52110-97E22-0ED Drive Shaft Housing (L) (NLA)
SKU: 52110-97E22-0ED Weight: 10.000000 Brand: Price: $ 506.49 |
Drive Shaft Housing (L) (NLA) | 1 | $ 506.49 | 1986 to 1987 Requires Ref# 28 | |
| 7-4 | 52110-97E22-0ED Drive Shaft Housing (L) (NLA)
SKU: 52110-97E22-0ED Weight: 10.000000 Brand: Price: $ 506.49 |
Drive Shaft Housing (L) (NLA) | 1 | $ 506.49 | 1988 to 1998 | |
| 8 | 54125-94400 Upper Thrust Reverse Mount (NLA)
SKU: 54125-94400 Weight: 0.100000 Brand: Price: $ 3.60 |
Upper Thrust Reverse Mount (NLA) | 1 | $ 3.60 | ||
| 9 | 54151-94400 Lower Thrust Mount (NLA)
SKU: 54151-94400 Weight: 1.000000 Brand: Price: $ 3.99 |
Lower Thrust Mount (NLA) | 1 | $ 3.99 | ||
| 10 | 54211-94410-0ED Front Side Bracket (NLA)
SKU: 54211-94410-0ED Weight: 10.000000 Brand: Price: $ 43.51 |
Front Side Bracket (NLA) | 1 | $ 43.51 | ||
| 11 | 54212-94400-0ED Rear Side Bracket (NLA)
SKU: 54212-94400-0ED Weight: 0.100000 Brand: Price: $ 34.86 |
Rear Side Bracket (NLA) | 1 | $ 34.86 | ||
| 12 | 54221-94400-0ED Lower Mount Cover (NLA)
SKU: 54221-94400-0ED Weight: 0.100000 Brand: Price: $ 29.02 |
Lower Mount Cover (NLA) | 2 | $ 29.02 | ||
| 13 | 09117-08038 Bolt (8x45)
SKU: 09117-08038 Weight: 0.060000 Brand: Price: $ 5.64 |
Bolt (8x45) | 4 | $ 5.64 | ||
| 14 | 09117-08071 Bolt (8x35)
SKU: 09117-08071 Weight: 0.060000 Brand: Price: $ 6.05 |
Bolt (8x35) | 4 | $ 6.05 | ||
| 15 | 54160-94400 Lower Mount (NLA)
SKU: 54160-94400 Weight: 1.000000 Brand: Price: $ 31.47 |
Lower Mount (NLA) | 2 | $ 31.47 | ||
| 16 | 54165-94400 Lower Damper
SKU: 54165-94400 Weight: 0.100000 Brand: Price: $ 4.84 |
Lower Damper | 2 | $ 4.84 | ||
| 17 | 54166-94410 Lower Mount Bolt (NLA)
SKU: 54166-94410 Weight: 0.300000 Brand: Price: $ 33.17 |
Lower Mount Bolt (NLA) | 2 | $ 33.17 | ||
| 18 | 09140-12029 Nut
SKU: 09140-12029 Weight: 0.060000 Brand: Price: $ 3.08 |
Nut | 2 | $ 3.08 | ||
| 19 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 2 | $ 1.80 | ||
| 20 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 21 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 2 | $ 1.80 | ||
| 22 | 09180-12104 Spacer (NLA)
SKU: 09180-12104 Weight: 0.100000 Brand: Price: $ 1.70 |
Spacer (NLA) | 2 | $ 1.70 | 1986 to 1992 | |
| 23 | 11435-94400 Exhaust Release Plate
SKU: 11435-94400 Weight: 0.100000 Brand: Price: $ 4.84 |
Exhaust Release Plate | 1 | $ 4.84 | ||
| 24 | 36894-94401 Wire Lead (L:195)
SKU: 36894-94401 Weight: 0.060000 Brand: Price: $ 12.53 |
Wire Lead (L:195) | 1 | $ 12.53 | ||
| 25 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 26 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 3 | $ 1.88 | ||
| 27 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 3 | $ 2.90 | ||
| 28 | 52117-94400 Water Inspection Tube
SKU: 52117-94400 Weight: 0.060000 Brand: Price: $ 3.13 |
Water Inspection Tube | 1 | $ 3.13 | 1986 to 1996 | |
| 29 | 54200-87852-0ED Lower Mount Bracket Set
SKU: 54200-87852-0ED Weight: 2.000000 Brand: Price: $ 143.41 |
Lower Mount Bracket Set | 1 | $ 143.41 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
