Suzuki DT 40 Parts Listings 1986 to 1998

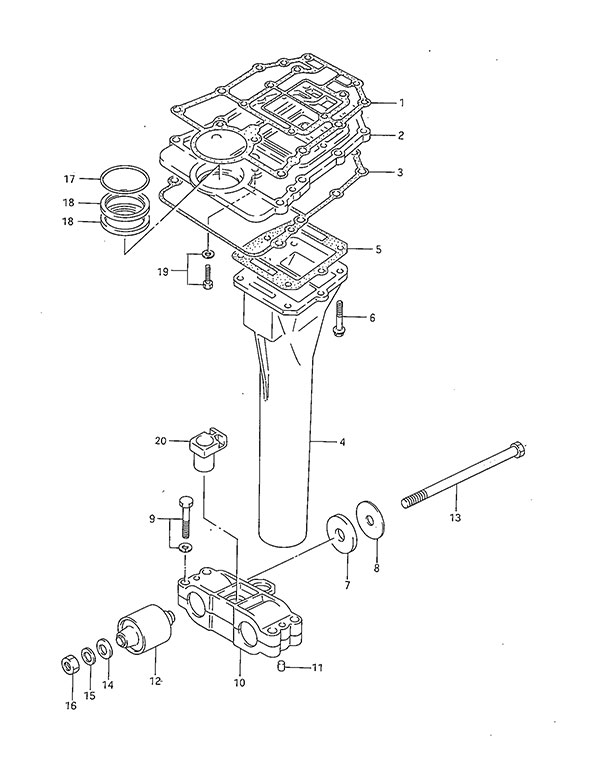

Fig. 26 - Exhaust Tube
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11433-94412 Under Oil Seal Housing Gasket
SKU: 11433-94412 Weight: 0.250000 Brand: Price: $ 29.71 |
Under Oil Seal Housing Gasket | 1 | $ 29.71 | ||
| 2 | 11431-94406 Under Oil Seal Housing
SKU: 11431-94406 Weight: 0.100000 Brand: Price: $ 113.33 |
Under Oil Seal Housing | 1 | $ 113.33 | ||
| 3 | 11434-94411 Oil Seal Housing Gasket
SKU: 11434-94411 Weight: 0.080000 Brand: Price: $ 24.22 |
Oil Seal Housing Gasket | 1 | $ 24.22 | ||
| 4 | 14211-94451 Exhaust Tube
SKU: 14211-94451 Weight: 1.800000 Brand: Price: $ 124.25 |
Exhaust Tube | 1 | $ 124.25 | ||
| 5 | 14212-94413 Exhaust Tube Gasket
SKU: 14212-94413 Weight: 0.060000 Brand: Price: $ 6.09 |
Exhaust Tube Gasket | 1 | $ 6.09 | ||
| 6 | 29103-94400 Bolt (6x35)
SKU: 29103-94400 Weight: 0.125000 Brand: Price: $ 2.55 |
Bolt (6x35) | 6 | $ 2.55 | ||
| 7 | 54121-94400 Upper Thrust Stopper
SKU: 54121-94400 Weight: 0.100000 Brand: Price: $ 4.70 |
Upper Thrust Stopper | 2 | $ 4.70 | ||
| 8 | 09160-10080 Washer (NLA)
SKU: 09160-10080 Weight: 0.100000 Brand: Price: $ 3.25 |
Washer (NLA) | 2 | $ 3.25 | ||
| 9 | 09117-08038 Bolt (8x45)
SKU: 09117-08038 Weight: 0.060000 Brand: Price: $ 5.64 |
Bolt (8x45) | 4 | $ 5.64 | ||
| 10-1 | 54137-94400 Upper Mount Case (NLA)
SKU: 54137-94400 Weight: 0.100000 Brand: Price: $ 24.46 |
Upper Mount Case (NLA) | 2 | $ 24.46 | 1986 to 1997 | |
| 10-2 | 54137-94401 Upper Mount Case (NLA)
SKU: 54137-94401 Weight: 0.100000 Brand: Price: $ 24.53 |
Upper Mount Case (NLA) | 2 | $ 24.53 | 1998 | |
| 11 | 09202-07006 PIN (7X10)
SKU: 09202-07006 Weight: 0.100000 Brand: Price: $ 1.37 |
PIN (7X10) | 2 | $ 1.37 | ||
| 12 | 54100-94800 Upper Mount Set (NLA)
SKU: 54100-94800 Weight: 1.000000 Brand: Price: $ 133.67 |
Upper Mount Set (NLA) | 2 | $ 133.67 | ||
| 13 | 09100-10217 Bolt (10x150)
SKU: 09100-10217 Weight: 0.250000 Brand: Price: $ 15.24 |
Bolt (10x150) | 2 | $ 15.24 | ||
| 14 | 09160-10081 Washer (10x20x3.0)
SKU: 09160-10081 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (10x20x3.0) | 2 | $ 2.52 | ||
| 15 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 16 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 17 | 09280-50008 O-Ring
SKU: 09280-50008 Weight: 0.060000 Brand: Price: $ 2.62 |
O-Ring | 1 | $ 2.62 | ||
| 18 | 09282-17009 Oil Seal (17x28x6)
SKU: 09282-17009 Weight: 0.060000 Brand: Price: $ 10.20 |
Oil Seal (17x28x6) | 2 | $ 10.20 | ||
| 19 | 09116-06204 Bolt (6x20)
SKU: 09116-06204 Weight: 0.060000 Brand: Price: $ 3.10 |
Bolt (6x20) | 2 | $ 3.10 | ||
| 20 | 54146-94400 Upper Mount Case Guide
SKU: 54146-94400 Weight: 0.100000 Brand: Price: $ 6.31 |
Upper Mount Case Guide | 1 | $ 6.31 | 1998 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
