Suzuki DT 40 Parts Listings 1994 to 1998

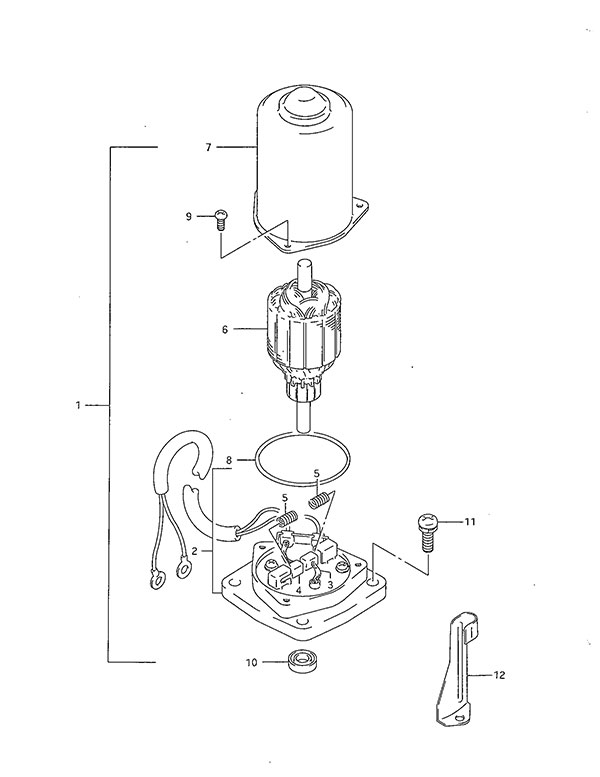

Fig. 25B - Power Trim & Tilt Motor (DT40TC)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38100-97E00-0ED PTT Motor Assembly
SKU: 38100-97E00-0ED Weight: 5.000000 Brand: Price: $ 730.03 |
PTT Motor Assembly | 1 | $ 730.03 | ||
| 2 | 31173-97E00 Brush Holder (NLA)
SKU: 31173-97E00 Weight: 0.100000 Brand: Price: $ 327.47 |
Brush Holder (NLA) | 1 | $ 327.47 | ||
| 3 | 31133-97E00 Brush
SKU: 31133-97E00 Weight: 0.060000 Brand: Price: $ 15.30 |
Brush | 1 | $ 15.30 | ||
| 4 | 31136-97E00 Breaker (NLA)
SKU: 31136-97E00 Weight: 0.100000 Brand: Price: $ 57.84 |
Breaker (NLA) | 1 | $ 57.84 | ||
| 5 | 31135-97E00 Spring
SKU: 31135-97E00 Weight: 0.060000 Brand: Price: $ 4.64 |
Spring | 2 | $ 4.64 | ||
| 6 | 31311-97E00 Armature (NLA)
SKU: 31311-97E00 Weight: 5.000000 Brand: Price: $ 253.27 |
Armature (NLA) | 1 | $ 253.27 | ||
| 7 | 31110-97E00-0ED Yoke Assembly (NLA)
SKU: 31110-97E00-0ED Weight: 1.000000 Brand: Price: $ 243.01 |
Yoke Assembly (NLA) | 1 | $ 243.01 | ||
| 8 | 31123-97E10 O-Ring
SKU: 31123-97E10 Weight: 0.060000 Brand: Price: $ 14.91 |
O-Ring | 1 | $ 14.91 | ||
| 9 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 3 | $ 1.97 | ||
| 10 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 23.27 |
Oil Seal | 1 | $ 23.27 | ||
| 11 | 48862-97E00 Motor Screw
SKU: 48862-97E00 Weight: 0.060000 Brand: Price: $ 11.40 |
Motor Screw | 4 | $ 11.40 | ||
| 12 | 38111-97E00 PTT Cable Holder (NLA)
SKU: 38111-97E00 Weight: 0.100000 Brand: Price: $ 12.29 |
PTT Cable Holder (NLA) | 1 | $ 12.29 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
