Suzuki DT 40 Parts Listings 1994 to 1998

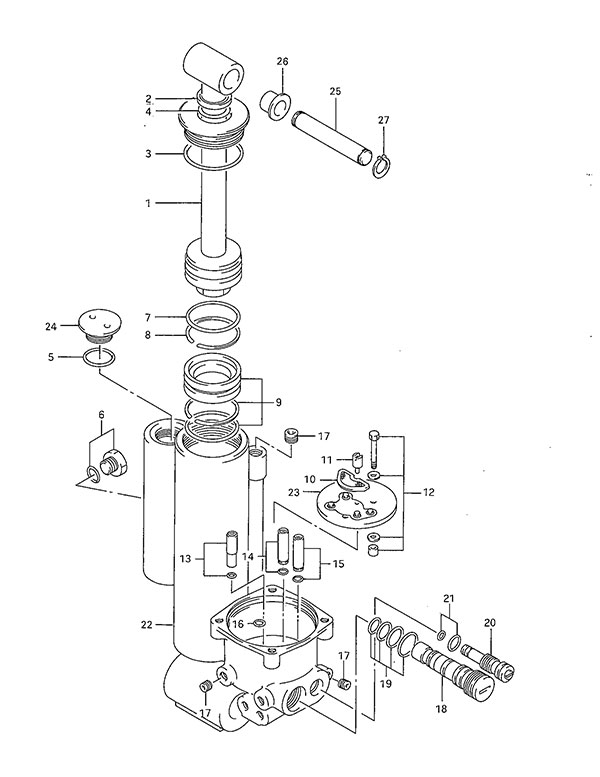

Fig. 25A - Power Trim & Tilt (DT40TC)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48601-97E00 Piston Rod (NLA)
SKU: 48601-97E00 Weight: 10.000000 Brand: Price: $ 269.35 |
Piston Rod (NLA) | 1 | $ 269.35 | ||
| 2 | 48632-97E00 Cylinder Head Oil Seal (NLA)
SKU: 48632-97E00 Weight: 0.060000 Brand: Price: $ 9.02 |
Cylinder Head Oil Seal (NLA) | 1 | $ 9.02 | ||
| 3 | 48633-97E00 Cylinder Head O-Ring
SKU: 48633-97E00 Weight: 0.060000 Brand: Price: $ 5.22 |
Cylinder Head O-Ring | 1 | $ 5.22 | ||
| 4 | 48634-97E00 Cylinder Head O-Ring (NLA)
SKU: 48634-97E00 Weight: 0.060000 Brand: Price: $ 2.70 |
Cylinder Head O-Ring (NLA) | 1 | $ 2.70 | ||
| 5 | 09280-22020 O-Ring
SKU: 09280-22020 Weight: 0.060000 Brand: Price: $ 3.39 |
O-Ring | 1 | $ 3.39 | ||
| 6 | 48572-97E00 Reservoir Plug Set
SKU: 48572-97E00 Weight: 0.060000 Brand: Price: $ 19.97 |
Reservoir Plug Set | 1 | $ 19.97 | ||
| 7 | 48405-87D00 Tilt O-Ring Set
SKU: 48405-87D00 Weight: 0.060000 Brand: Price: $ 5.35 |
Tilt O-Ring Set | 1 | $ 5.35 | ||
| 8 | 48615-97E00 Piston Ring Set
SKU: 48615-97E00 Weight: 0.060000 Brand: Price: $ 8.46 |
Piston Ring Set | 1 | $ 8.46 | ||
| 9 | 48650-97E00 Free Piston (NLA)
SKU: 48650-97E00 Weight: 0.100000 Brand: Price: $ 44.19 |
Free Piston (NLA) | 1 | $ 44.19 | ||
| 10 | 48582-97E00 Pump Filter (NLA)
SKU: 48582-97E00 Weight: 0.100000 Brand: Price: $ 11.84 |
Pump Filter (NLA) | 1 | $ 11.84 | ||
| 11 | 48583-97E00 Drive Joint
SKU: 48583-97E00 Weight: 0.100000 Brand: Price: $ 21.22 |
Drive Joint | 1 | $ 21.22 | ||
| 12 | 48541-97E00 Pump Bolt Set (NLA)
SKU: 48541-97E00 Weight: 0.100000 Brand: Price: $ 20.43 |
Pump Bolt Set (NLA) | 1 | $ 20.43 | ||
| 13 | 48870-97E00 Thermal Valve (NLA)
SKU: 48870-97E00 Weight: 0.100000 Brand: Price: $ 37.62 |
Thermal Valve (NLA) | 1 | $ 37.62 | ||
| 14 | 48820-97E00 Up Pressure Valve (NLA)
SKU: 48820-97E00 Weight: 0.100000 Brand: Price: $ 39.59 |
Up Pressure Valve (NLA) | 1 | $ 39.59 | ||
| 15 | 48830-97E00 Down Pressure Valve
SKU: 48830-97E00 Weight: 0.100000 Brand: Price: $ 56.64 |
Down Pressure Valve | 1 | $ 56.64 | ||
| 16 | 48518-87D00 O-Ring
SKU: 48518-87D00 Weight: 0.060000 Brand: Price: $ 2.22 |
O-Ring | 2 | $ 2.22 | ||
| 17 | 48690-97E00 Manifold Plug Set (NLA)
SKU: 48690-97E00 Weight: 0.100000 Brand: Price: $ 17.67 |
Manifold Plug Set (NLA) | 1 | $ 17.67 | ||
| 18 | 48530-97E00 Main Valve Set (NLA)
SKU: 48530-97E00 Weight: 0.100000 Brand: Price: $ 106.98 |
Main Valve Set (NLA) | 1 | $ 106.98 | ||
| 19 | 48536-97E01 O-Ring Set
SKU: 48536-97E01 Weight: 0.060000 Brand: Price: $ 14.37 |
O-Ring Set | 1 | $ 14.37 | ||
| 20 | 48550-97E00 Manual Valve Set (NLA)
SKU: 48550-97E00 Weight: 0.100000 Brand: Price: $ 89.87 |
Manual Valve Set (NLA) | 1 | $ 89.87 | ||
| 21 | 48557-97E00 O-Ring Set
SKU: 48557-97E00 Weight: 0.060000 Brand: Price: $ 3.83 |
O-Ring Set | 1 | $ 3.83 | ||
| 22 | 48641-97E00-0ED PTT Manifold (NLA)
SKU: 48641-97E00-0ED Weight: 0.100000 Brand: Price: $ 532.07 |
PTT Manifold (NLA) | 1 | $ 532.07 | ||
| 23 | 48519-97E00 Pump Holder (NLA)
SKU: 48519-97E00 Weight: 0.100000 Brand: Price: $ 15.98 |
Pump Holder (NLA) | 1 | $ 15.98 | ||
| 24 | 48575-97E00 Reservoir Plug (NLA)
SKU: 48575-97E00 Weight: 0.100000 Brand: Price: $ 12.11 |
Reservoir Plug (NLA) | 1 | $ 12.11 | ||
| 25 | 48321-97E01 Upper Tilt Cylinder Shaft
SKU: 48321-97E01 Weight: 0.200000 Brand: Price: $ 17.53 |
Upper Tilt Cylinder Shaft | 1 | $ 17.53 | ||
| 26 | 48325-97E00 Tilt Cylinder Upper Bushing
SKU: 48325-97E00 Weight: 0.060000 Brand: Price: $ 3.82 |
Tilt Cylinder Upper Bushing | 2 | $ 3.82 | ||
| 27 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.52 |
Snap Ring | 2 | $ 1.52 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
