Suzuki DT 40 Parts Listings 1986 to 1989

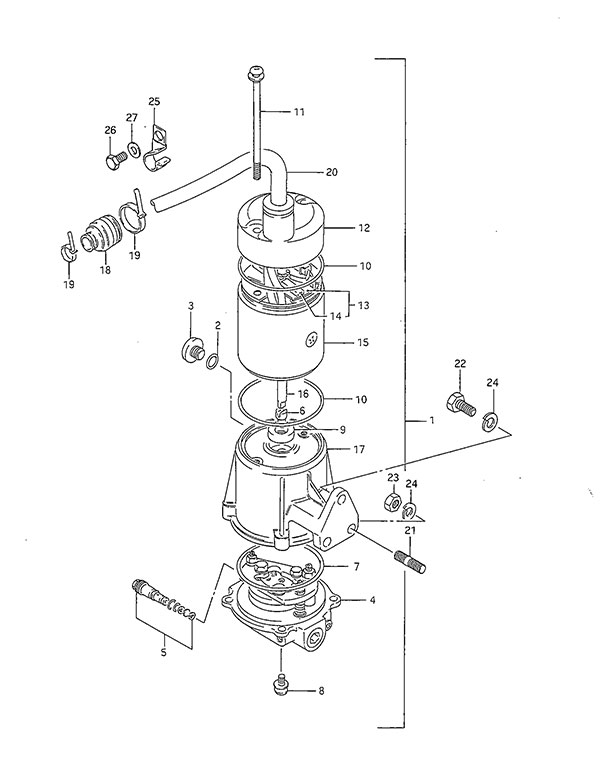

Fig. 24 - Power Unit (DT40TC)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48500-94420-0ED Power Unit Assembly
SKU: 48500-94420-0ED Weight: 5.000000 Brand: Price: $ 1,942.24 |
Power Unit Assembly | 1 | $ 1,942.24 | Requires Ref# 28 29 | |
| 2 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 1 | $ 1.60 | ||
| 3 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 1 | $ 6.59 | ||
| 4 | 48502-94410 Pump & Valve Body
SKU: 48502-94410 Weight: 10.000000 Brand: Price: $ 1,444.06 |
Pump & Valve Body | 1 | $ 1,444.06 | ||
| 5 | 48550-94600 Manual Valve Release
SKU: 48550-94600 Weight: 0.125000 Brand: Price: $ 52.95 |
Manual Valve Release | 1 | $ 52.95 | ||
| 6 | 48583-94520 Drive Joint
SKU: 48583-94520 Weight: 0.060000 Brand: Price: $ 16.56 |
Drive Joint | 1 | $ 16.56 | ||
| 7 | 48585-94520 Valve Body O-Ring
SKU: 48585-94520 Weight: 0.060000 Brand: Price: $ 5.34 |
Valve Body O-Ring | 1 | $ 5.34 | ||
| 8 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 4 | $ 1.97 | ||
| 9 | 09282-08003 Oil Seal (NLA)
SKU: 09282-08003 Weight: 0.060000 Brand: Price: $ 36.47 |
Oil Seal (NLA) | 1 | $ 36.47 | ||
| 10 | 09280-70005 O-Ring
SKU: 09280-70005 Weight: 0.060000 Brand: Price: $ 6.34 |
O-Ring | 1 | $ 6.34 | ||
| 11 | 31281-94510 Through Bolt
SKU: 31281-94510 Weight: 0.200000 Brand: Price: $ 15.49 |
Through Bolt | 2 | $ 15.49 | ||
| 12 | 31170-94520-0ED Upper Cover (NLA)
SKU: 31170-94520-0ED Weight: 0.100000 Brand: Price: $ 92.83 |
Upper Cover (NLA) | 1 | $ 92.83 | ||
| 13 | 31173-94521 Brush Holder Assembly (NLA)
SKU: 31173-94521 Weight: 0.100000 Brand: Price: $ 91.06 |
Brush Holder Assembly (NLA) | 1 | $ 91.06 | ||
| 14 | 31133-94521 Brush (NLA)
SKU: 31133-94521 Weight: 0.060000 Brand: Price: $ 12.52 |
Brush (NLA) | 2 | $ 12.52 | ||
| 15 | 31110-94520-0ED Yoke Assembly (NLA)
SKU: 31110-94520-0ED Weight: 0.100000 Brand: Price: $ 190.13 |
Yoke Assembly (NLA) | 1 | $ 190.13 | ||
| 16-1 | 31311-94520 Armature (NLA)
SKU: 31311-94520 Weight: 5.000000 Brand: Price: $ 350.16 |
Armature (NLA) | 1 | $ 350.16 | 1986 | |
| 16-2 | 31311-94600 Armature (NLA)
SKU: 31311-94600 Weight: 1.100000 Brand: Price: $ 319.74 |
Armature (NLA) | 1 | $ 319.74 | 1987 to 1989 | |
| 17-1 | 48570-94521-02M Reservoir Assembly (NLA)
SKU: 48570-94521-02M Weight: 0.100000 Brand: Price: $ 74.99 |
Reservoir Assembly (NLA) | 1 | $ 74.99 | 1986 | |
| 17-2 | 48570-94600-0ED Reservoir Assembly (NLA)
SKU: 48570-94600-0ED Weight: 0.100000 Brand: Price: $ 133.59 |
Reservoir Assembly (NLA) | 1 | $ 133.59 | 1987 to 1989 | |
| 18 | 33899-95500 PTT Cable Seal (NLA)
SKU: 33899-95500 Weight: 0.100000 Brand: Price: $ 7.29 |
PTT Cable Seal (NLA) | 1 | $ 7.29 | ||
| 19 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 2 | $ 4.73 | ||
| 20 | 33861-95600 PTT Cable (NLA)
SKU: 33861-95600 Weight: 0.100000 Brand: Price: $ 98.29 |
PTT Cable (NLA) | 1 | $ 98.29 | ||
| 21 | 09108-08130 Stud Bolt (8x20)
SKU: 09108-08130 Weight: 0.200000 Brand: Price: $ 5.67 |
Stud Bolt (8x20) | 2 | $ 5.67 | ||
| 22 | 09100-08219 Bolt (8x20) (NLA)
SKU: 09100-08219 Weight: 0.060000 Brand: Price: $ 2.27 |
Bolt (8x20) (NLA) | 1 | $ 2.27 | ||
| 23 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 24 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 3 | $ 1.49 | ||
| 25 | 09403-12308 Clamp (NLA)
SKU: 09403-12308 Weight: 0.100000 Brand: Price: $ 2.03 |
Clamp (NLA) | 1 | $ 2.03 | ||
| 26 | 09100-06106 Bolt (6x9)
SKU: 09100-06106 Weight: 0.060000 Brand: Price: $ 2.16 |
Bolt (6x9) | 1 | $ 2.16 | ||
| 27 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 28 | 38410-94552 PTT Relay Assembly
SKU: 38410-94552 Weight: 0.500000 Brand: Price: $ 140.10 |
PTT Relay Assembly | 2 | $ 140.10 | Not Shown | |
| 29 | 33832-94400 PTT Relay Cable Assembly (NLA)
SKU: 33832-94400 Weight: 0.100000 Brand: Price: $ 10.65 |
PTT Relay Cable Assembly (NLA) | 1 | $ 10.65 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
