Suzuki DT 40 Parts Listings 1986 to 1998

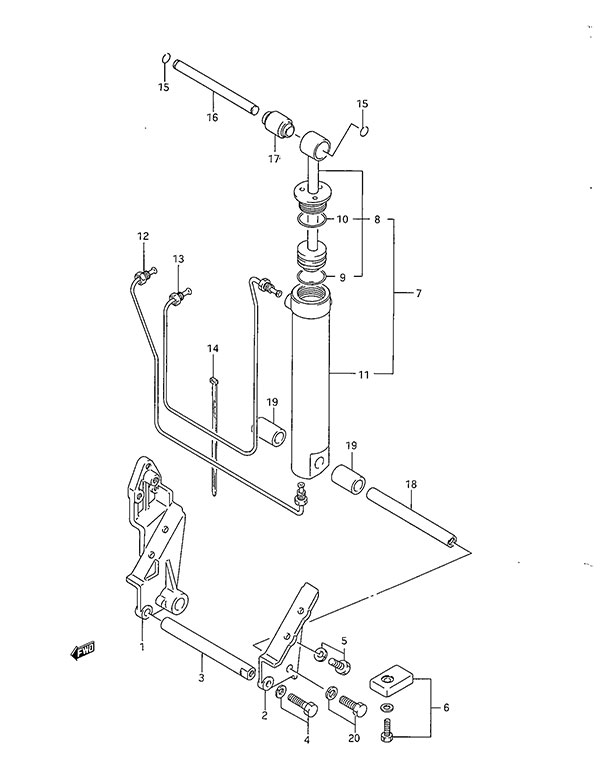

Fig. 23 - Tilt Cylinder & Support (DT40TC)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 48111-94401-02M Starboard Tilt Cylinder Bracket (NLA)
SKU: 48111-94401-02M Weight: 0.100000 Brand: Price: $ 86.38 |
Starboard Tilt Cylinder Bracket (NLA) | 1 | $ 86.38 | S/N 611694 Older | |
| 1-2 | 48111-94402-0ED Starboard Tilt Cylinder Bracket (NLA)
SKU: 48111-94402-0ED Weight: 0.100000 Brand: Price: $ 92.08 |
Starboard Tilt Cylinder Bracket (NLA) | 1 | $ 92.08 | S/N 611695 Newer | |
| 2 | 48112-94402-0ED Port Tilt Cylinder Bracket (NLA)
SKU: 48112-94402-0ED Weight: 0.100000 Brand: Price: $ 83.24 |
Port Tilt Cylinder Bracket (NLA) | 1 | $ 83.24 | ||
| 3 | 48135-94400 Tilt Cylinder Bracket Rod (NLA)
SKU: 48135-94400 Weight: 0.100000 Brand: Price: $ 18.18 |
Tilt Cylinder Bracket Rod (NLA) | 1 | $ 18.18 | ||
| 4 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 2 | $ 5.05 | ||
| 5 | 09117-08110 Bolt (8x25)
SKU: 09117-08110 Weight: 0.060000 Brand: Price: $ 5.04 |
Bolt (8x25) | 4 | $ 5.04 | ||
| 6 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 7 | 48600-94401-0ED PTT Cylinder Assembly (NLA)
SKU: 48600-94401-0ED Weight: 3.000000 Brand: Price: $ 336.21 |
PTT Cylinder Assembly (NLA) | 1 | $ 336.21 | ||
| 8 | 48601-94400 Piston & Piston Rod Assembly (NLA)
SKU: 48601-94400 Weight: 1.600000 Brand: Price: $ 177.46 |
Piston & Piston Rod Assembly (NLA) | 1 | $ 177.46 | ||
| 9 | 48627-95510 O-Ring (NLA)
SKU: 48627-95510 Weight: 0.060000 Brand: Price: $ 3.72 |
O-Ring (NLA) | 1 | $ 3.72 | ||
| 10-1 | 48633-95510 O-Ring
SKU: 48633-95510 Weight: 0.060000 Brand: Price: $ 3.78 |
O-Ring | 1 | $ 3.78 | S/N 136672 Older | |
| 10-2 | 48633-95520 O-Ring
SKU: 48633-95520 Weight: 0.060000 Brand: Price: $ 4.64 |
O-Ring | 1 | $ 4.64 | S/N 136673 Newer | |
| 11 | 48641-94400 Cylinder Tube (NLA)
SKU: 48641-94400 Weight: 0.100000 Brand: Price: $ 89.49 |
Cylinder Tube (NLA) | 1 | $ 89.49 | ||
| 12 | 48710-94400 No. 1 Inlet Tube (NLA)
SKU: 48710-94400 Weight: 0.250000 Brand: Price: $ 39.57 |
No. 1 Inlet Tube (NLA) | 1 | $ 39.57 | ||
| 13 | 48720-94401 No. 2 Inlet Tube (NLA)
SKU: 48720-94401 Weight: 0.100000 Brand: Price: $ 52.97 |
No. 2 Inlet Tube (NLA) | 1 | $ 52.97 | ||
| 14 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 2 | $ 4.73 | ||
| 15 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.52 |
Snap Ring | 2 | $ 1.52 | ||
| 16 | 48321-94400 Tilt Cylinder Upper Shaft (NLA)
SKU: 48321-94400 Weight: 0.100000 Brand: Price: $ 10.80 |
Tilt Cylinder Upper Shaft (NLA) | 1 | $ 10.80 | ||
| 17 | 09319-12041 Bushing
SKU: 09319-12041 Weight: 0.100000 Brand: Price: $ 14.59 |
Bushing | 2 | $ 14.59 | ||
| 18 | 48121-94401 Tilt Cylinder Lower Shaft (NLA)
SKU: 48121-94401 Weight: 0.100000 Brand: Price: $ 22.22 |
Tilt Cylinder Lower Shaft (NLA) | 1 | $ 22.22 | ||
| 19 | 48163-94400 Tilt Cylinder Lower Spacer (NLA)
SKU: 48163-94400 Weight: 0.100000 Brand: Price: $ 5.02 |
Tilt Cylinder Lower Spacer (NLA) | 2 | $ 5.02 | ||
| 20 | 09117-08110 Bolt (8x25)
SKU: 09117-08110 Weight: 0.060000 Brand: Price: $ 5.04 |
Bolt (8x25) | 2 | $ 5.04 | S/N 611695 Newer |
