Suzuki DT 40 Parts Listings 1994 to 1995

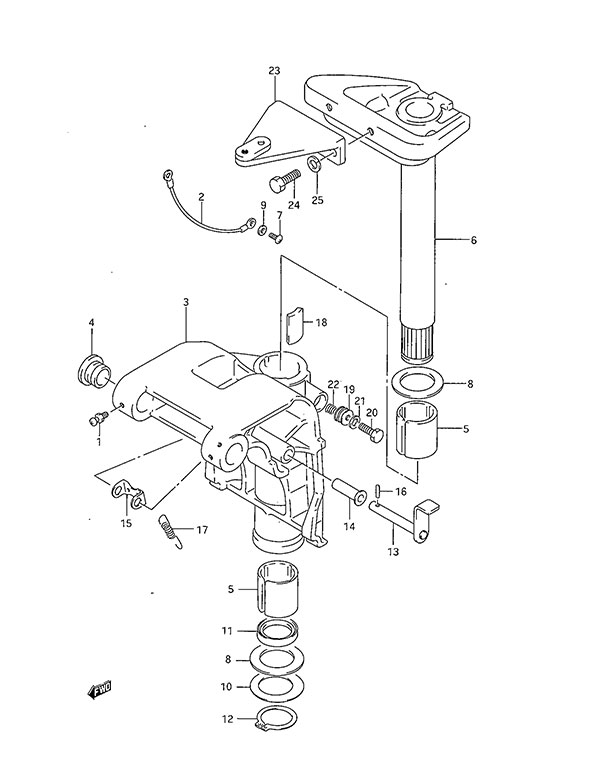

Fig. 22A - Swivel Bracket (DT40TC)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 2 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 3 | 43111-87J20-0ED Swivel Bracket (L)
SKU: 43111-87J20-0ED Weight: 5.000000 Brand: Price: $ 443.91 |
Swivel Bracket (L) | 1 | $ 443.91 | ||
| 4 | 43211-95250 Bushing (NLA)
SKU: 43211-95250 Weight: 0.060000 Brand: Price: $ 4.82 |
Bushing (NLA) | 2 | $ 4.82 | ||
| 5 | 43711-97E11 Steering Bushing
SKU: 43711-97E11 Weight: 0.125000 Brand: Price: $ 9.24 |
Steering Bushing | 2 | $ 9.24 | ||
| 6 | 43750-97E03-0ED Steering Bracket (NLA)
SKU: 43750-97E03-0ED Weight: 0.100000 Brand: Price: $ 188.50 |
Steering Bracket (NLA) | 1 | $ 188.50 | ||
| 7 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 8 | 09160-39001 Washer (39.5x64x1.0)
SKU: 09160-39001 Weight: 0.060000 Brand: Price: $ 3.56 |
Washer (39.5x64x1.0) | 3 | $ 3.56 | ||
| 9 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 | ||
| 10 | 09181-39001 Shim (39.5x64x0.3)
SKU: 09181-39001 Weight: 0.060000 Brand: Price: $ 3.83 |
Shim (39.5x64x0.3) | 2 | $ 3.83 | ||
| 11 | 09282-39001 Oil Seal (38x51x5)
SKU: 09282-39001 Weight: 0.060000 Brand: Price: $ 6.18 |
Oil Seal (38x51x5) | 1 | $ 6.18 | ||
| 12 | 09380-38003 Circlip
SKU: 09380-38003 Weight: 0.060000 Brand: Price: $ 5.97 |
Circlip | 1 | $ 5.97 | ||
| 13 | 41220-97E00-0ED Tilt Lock Lever (NLA)
SKU: 41220-97E00-0ED Weight: 0.100000 Brand: Price: $ 26.17 |
Tilt Lock Lever (NLA) | 2 | $ 26.17 | ||
| 14 | 41226-97E00 Bushing
SKU: 41226-97E00 Weight: 0.060000 Brand: Price: $ 5.11 |
Bushing | 2 | $ 5.11 | ||
| 15 | 41231-97E00 Link Plate (NLA)
SKU: 41231-97E00 Weight: 0.100000 Brand: Price: $ 5.30 |
Link Plate (NLA) | 1 | $ 5.30 | ||
| 16 | 09205-03012 Spring Pin (3x16)
SKU: 09205-03012 Weight: 0.060000 Brand: Price: $ 1.99 |
Spring Pin (3x16) | 2 | $ 1.99 | ||
| 17 | 09443-09047 Tilt Link Plate Spring (NLA)
SKU: 09443-09047 Weight: 0.100000 Brand: Price: $ 7.54 |
Tilt Link Plate Spring (NLA) | 1 | $ 7.54 | ||
| 18 | 43411-97E00 Steering Adjuster (NLA)
SKU: 43411-97E00 Weight: 0.100000 Brand: Price: $ 4.88 |
Steering Adjuster (NLA) | 1 | $ 4.88 | ||
| 19 | 43412-93900 Steering Adjuster Cover
SKU: 43412-93900 Weight: 0.100000 Brand: Price: $ 3.76 |
Steering Adjuster Cover | 1 | $ 3.76 | ||
| 20 | 09100-08224-XC0 Bolt (8x35)
SKU: 09100-08224-XC0 Weight: 0.060000 Brand: Price: $ 5.06 |
Bolt (8x35) | 1 | $ 5.06 | ||
| 21 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 22 | 09440-11022 Spring
SKU: 09440-11022 Weight: 0.060000 Brand: Price: $ 2.20 |
Spring | 1 | $ 2.20 | ||
| 23 | 43755-97E50 Steering Attachment (NLA)
SKU: 43755-97E50 Weight: 0.100000 Brand: Price: $ 60.21 |
Steering Attachment (NLA) | 1 | $ 60.21 | ||
| 24 | 09100-10270 Bolt (10x25)
SKU: 09100-10270 Weight: 0.060000 Brand: Price: $ 16.00 |
Bolt (10x25) | 2 | $ 16.00 | ||
| 25 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
