Suzuki DT 40 Parts Listings 1993 to 1998

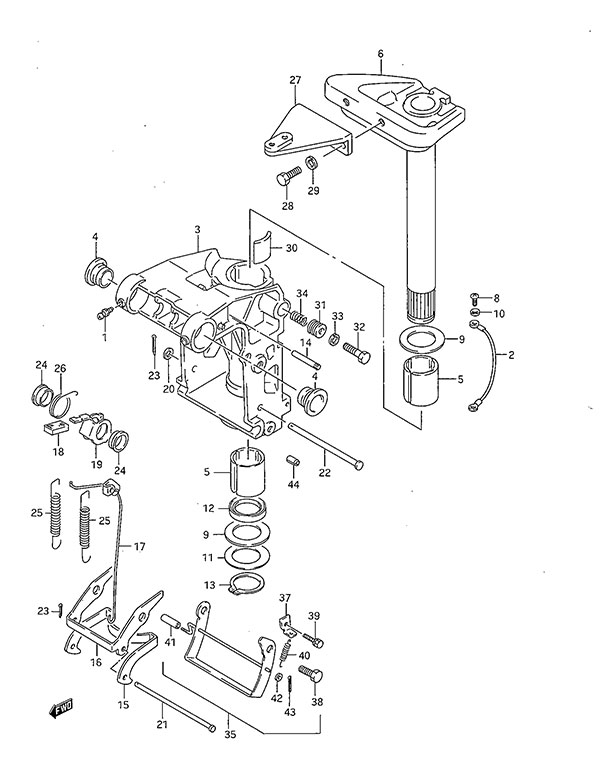

Fig. 22 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
| 2 | 36894-94401 Wire Lead (L:195)
SKU: 36894-94401 Weight: 0.060000 Brand: Price: $ 12.53 |
Wire Lead (L:195) | 1 | $ 12.53 | ||
| 3 | 43111-97E00-0ED Swivel Bracket (NLA)
SKU: 43111-97E00-0ED Weight: 10.000000 Brand: Price: $ 242.91 |
Swivel Bracket (NLA) | 1 | $ 242.91 | ||
| 4 | 43211-87JL0 Swivel Bracket Bushing
SKU: 43211-87JL0 Weight: 0.100000 Brand: Price: $ 33.39 |
Swivel Bracket Bushing | 2 | $ 33.39 | ||
| 5 | 43711-97E11 Steering Bushing
SKU: 43711-97E11 Weight: 0.125000 Brand: Price: $ 9.24 |
Steering Bushing | 2 | $ 9.24 | ||
| 6 | 43750-97E03-0ED Steering Bracket (NLA)
SKU: 43750-97E03-0ED Weight: 0.100000 Brand: Price: $ 188.50 |
Steering Bracket (NLA) | 1 | $ 188.50 | ||
| 8 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 9 | 09160-39001 Washer (39.5x64x1.0)
SKU: 09160-39001 Weight: 0.060000 Brand: Price: $ 3.56 |
Washer (39.5x64x1.0) | 3 | $ 3.56 | ||
| 10 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 | ||
| 11 | 09181-39001 Shim (39.5x64x0.3)
SKU: 09181-39001 Weight: 0.060000 Brand: Price: $ 3.83 |
Shim (39.5x64x0.3) | 2 | $ 3.83 | ||
| 12 | 09282-39001 Oil Seal (38x51x5)
SKU: 09282-39001 Weight: 0.060000 Brand: Price: $ 6.18 |
Oil Seal (38x51x5) | 1 | $ 6.18 | ||
| 13 | 09380-38003 Circlip
SKU: 09380-38003 Weight: 0.060000 Brand: Price: $ 5.97 |
Circlip | 1 | $ 5.97 | ||
| 14 | 41225-94502 Release Arm Pin
SKU: 41225-94502 Weight: 0.060000 Brand: Price: $ 5.64 |
Release Arm Pin | 1 | $ 5.64 | ||
| 15 | 45231-94401 Reverse Lock Arm
SKU: 45231-94401 Weight: 0.250000 Brand: Price: $ 22.54 |
Reverse Lock Arm | 1 | $ 22.54 | ||
| 16 | 45241-94400 Reverse Lock Arm Link
SKU: 45241-94400 Weight: 0.100000 Brand: Price: $ 21.36 |
Reverse Lock Arm Link | 1 | $ 21.36 | ||
| 17 | 45250-94400 Release Link (NLA)
SKU: 45250-94400 Weight: 0.100000 Brand: Price: $ 8.72 |
Release Link (NLA) | 1 | $ 8.72 | ||
| 18 | 45255-93001 Release Lever Rubber
SKU: 45255-93001 Weight: 0.100000 Brand: Price: $ 4.20 |
Release Lever Rubber | 1 | $ 4.20 | ||
| 19 | 45261-92L00 Release Lever
SKU: 45261-92L00 Weight: 0.250000 Brand: Price: $ 8.42 |
Release Lever | 1 | $ 8.42 | ||
| 20 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 21 | 09200-05015 Pin (NLA)
SKU: 09200-05015 Weight: 0.100000 Brand: Price: $ 7.66 |
Pin (NLA) | 1 | $ 7.66 | ||
| 22 | 09200-08043 Pin (NLA)
SKU: 09200-08043 Weight: 0.100000 Brand: Price: $ 5.08 |
Pin (NLA) | 1 | $ 5.08 | ||
| 23 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 24 | 09306-22006 Bushing
SKU: 09306-22006 Weight: 0.060000 Brand: Price: $ 1.26 |
Bushing | 2 | $ 1.26 | ||
| 25 | 09443-15031 Spring (NLA)
SKU: 09443-15031 Weight: 0.100000 Brand: Price: $ 6.87 |
Spring (NLA) | 2 | $ 6.87 | ||
| 26 | 09448-29018 Spring
SKU: 09448-29018 Weight: 0.100000 Brand: Price: $ 3.40 |
Spring | 1 | $ 3.40 | ||
| 27 | 43755-97E01 Steering Attachment (NLA)
SKU: 43755-97E01 Weight: 0.100000 Brand: Price: $ 41.27 |
Steering Attachment (NLA) | 1 | $ 41.27 | ||
| 28 | 09100-10270 Bolt (10x25)
SKU: 09100-10270 Weight: 0.060000 Brand: Price: $ 16.00 |
Bolt (10x25) | 2 | $ 16.00 | ||
| 29 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 30 | 43411-97E00 Steering Adjuster (NLA)
SKU: 43411-97E00 Weight: 0.100000 Brand: Price: $ 4.88 |
Steering Adjuster (NLA) | 1 | $ 4.88 | ||
| 31 | 43412-93900 Steering Adjuster Cover
SKU: 43412-93900 Weight: 0.100000 Brand: Price: $ 3.76 |
Steering Adjuster Cover | 1 | $ 3.76 | ||
| 32 | 09100-08224-XC0 Bolt (8x35)
SKU: 09100-08224-XC0 Weight: 0.060000 Brand: Price: $ 5.06 |
Bolt (8x35) | 1 | $ 5.06 | ||
| 33 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 34 | 09440-11022 Spring
SKU: 09440-11022 Weight: 0.060000 Brand: Price: $ 2.20 |
Spring | 1 | $ 2.20 | ||
| 35 | 45700-94412 Shallow Water Drive Assy
SKU: 45700-94412 Weight: 0.500000 Brand: Price: $ 80.26 |
Shallow Water Drive Assy | 1 | $ 80.26 | ||
| 37 | 45713-94420 Stopper (NLA)
SKU: 45713-94420 Weight: 0.100000 Brand: Price: $ 7.01 |
Stopper (NLA) | 1 | $ 7.01 | ||
| 38 | 09111-10045 Bolt (10x20.8) (NLA)
SKU: 09111-10045 Weight: 0.100000 Brand: Price: $ 3.66 |
Bolt (10x20.8) (NLA) | 2 | $ 3.66 | ||
| 39 | 09117-06038 Bolt (6x16) (NLA)
SKU: 09117-06038 Weight: 0.100000 Brand: Price: $ 1.51 |
Bolt (6x16) (NLA) | 1 | $ 1.51 | ||
| 40 | 09443-12039 Spring (NLA)
SKU: 09443-12039 Weight: 0.100000 Brand: Price: $ 2.32 |
Spring (NLA) | 1 | $ 2.32 | ||
| 41 | 45255-95500 Knob (NLA)
SKU: 45255-95500 Weight: 0.100000 Brand: Price: $ 2.64 |
Knob (NLA) | 1 | $ 2.64 | ||
| 42-1 | 09160-05032 Washer (NLA)
SKU: 09160-05032 Weight: 0.100000 Brand: Price: $ 0.94 |
Washer (NLA) | 1 | $ 0.94 | 1993 to 1996 | |
| 42-2 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | 1997 to 1998 | |
| 43 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 44 | 09205-08002 Pin (NLA)
SKU: 09205-08002 Weight: 0.100000 Brand: Price: $ 2.71 |
Pin (NLA) | 1 | $ 2.71 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
