Suzuki DT 40 Parts Listings 1986 to 1992

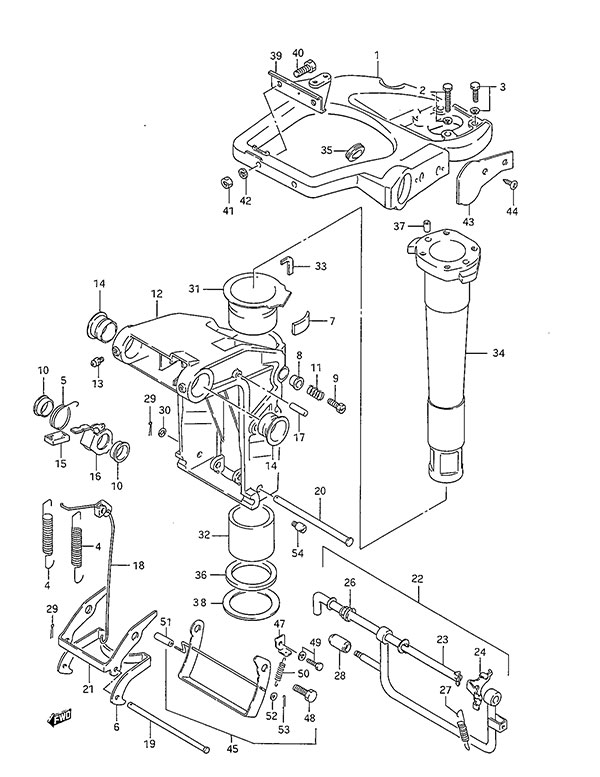

Fig. 21 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43751-94450-0ED Steering Bracket (NLA)
SKU: 43751-94450-0ED Weight: 10.000000 Brand: Price: $ 209.08 |
Steering Bracket (NLA) | 1 | $ 209.08 | ||
| 2 | 09117-08073 Bolt (8x35) (NLA)
SKU: 09117-08073 Weight: 0.100000 Brand: Price: $ 2.64 |
Bolt (8x35) (NLA) | 2 | $ 2.64 | ||
| 3 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 2 | $ 5.05 | ||
| 4 | 09443-15031 Spring (NLA)
SKU: 09443-15031 Weight: 0.100000 Brand: Price: $ 6.87 |
Spring (NLA) | 2 | $ 6.87 | ||
| 5 | 09448-29018 Spring
SKU: 09448-29018 Weight: 0.100000 Brand: Price: $ 3.40 |
Spring | 1 | $ 3.40 | ||
| 6 | 45231-94401 Reverse Lock Arm
SKU: 45231-94401 Weight: 0.250000 Brand: Price: $ 22.54 |
Reverse Lock Arm | 1 | $ 22.54 | ||
| 7 | 43411-94400 Steering Adjuster (NLA)
SKU: 43411-94400 Weight: 0.100000 Brand: Price: $ 5.04 |
Steering Adjuster (NLA) | 1 | $ 5.04 | ||
| 8 | 43421-96302 Adjuster Bushing
SKU: 43421-96302 Weight: 0.100000 Brand: Price: $ 7.82 |
Adjuster Bushing | 1 | $ 7.82 | ||
| 9 | 09119-08044 Bolt (8x23) (NLA)
SKU: 09119-08044 Weight: 0.100000 Brand: Price: $ 1.98 |
Bolt (8x23) (NLA) | 1 | $ 1.98 | ||
| 10 | 09306-22006 Bushing
SKU: 09306-22006 Weight: 0.060000 Brand: Price: $ 1.26 |
Bushing | 2 | $ 1.26 | ||
| 11 | 09440-13045 Spring (NLA)
SKU: 09440-13045 Weight: 0.100000 Brand: Price: $ 1.26 |
Spring (NLA) | 1 | $ 1.26 | ||
| 12 | 43111-94490-0ED Swivel Bracket (NLA)
SKU: 43111-94490-0ED Weight: 10.000000 Brand: Price: $ 304.63 |
Swivel Bracket (NLA) | 1 | $ 304.63 | ||
| 13 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
| 14 | 43211-87JL0 Swivel Bracket Bushing
SKU: 43211-87JL0 Weight: 0.100000 Brand: Price: $ 33.39 |
Swivel Bracket Bushing | 2 | $ 33.39 | ||
| 15 | 45255-93001 Release Lever Rubber
SKU: 45255-93001 Weight: 0.100000 Brand: Price: $ 4.20 |
Release Lever Rubber | 1 | $ 4.20 | ||
| 16 | 45261-92L00 Release Lever
SKU: 45261-92L00 Weight: 0.250000 Brand: Price: $ 8.42 |
Release Lever | 1 | $ 8.42 | ||
| 17 | 41225-94502 Release Arm Pin
SKU: 41225-94502 Weight: 0.060000 Brand: Price: $ 5.64 |
Release Arm Pin | 1 | $ 5.64 | ||
| 18 | 45250-94400 Release Link (NLA)
SKU: 45250-94400 Weight: 0.100000 Brand: Price: $ 8.72 |
Release Link (NLA) | 1 | $ 8.72 | ||
| 19 | 09200-05015 Pin (NLA)
SKU: 09200-05015 Weight: 0.100000 Brand: Price: $ 7.66 |
Pin (NLA) | 1 | $ 7.66 | ||
| 20 | 09200-08043 Pin (NLA)
SKU: 09200-08043 Weight: 0.100000 Brand: Price: $ 5.08 |
Pin (NLA) | 1 | $ 5.08 | ||
| 21 | 45241-94400 Reverse Lock Arm Link
SKU: 45241-94400 Weight: 0.100000 Brand: Price: $ 21.36 |
Reverse Lock Arm Link | 1 | $ 21.36 | ||
| 22 | 45700-94401 Shallow Water Drive Assembly (NLA)
SKU: 45700-94401 Weight: 0.100000 Brand: Price: $ 92.84 |
Shallow Water Drive Assembly (NLA) | 1 | $ 92.84 | 1986 to 1987 | |
| 23 | 45720-94401 Shallow Water Drive Shaft (NLA)
SKU: 45720-94401 Weight: 0.100000 Brand: Price: $ 50.71 |
Shallow Water Drive Shaft (NLA) | 1 | $ 50.71 | ||
| 24 | 45730-94401 Shallow Water Drive Plate (NLA)
SKU: 45730-94401 Weight: 0.100000 Brand: Price: $ 33.58 |
Shallow Water Drive Plate (NLA) | 1 | $ 33.58 | ||
| 26 | 09441-17002 Spring (NLA)
SKU: 09441-17002 Weight: 0.060000 Brand: Price: $ 1.38 |
Spring (NLA) | 1 | $ 1.38 | ||
| 27 | 09443-08045 Spring (NLA)
SKU: 09443-08045 Weight: 0.100000 Brand: Price: $ 2.88 |
Spring (NLA) | 1 | $ 2.88 | ||
| 28 | 45725-94400 Knob (NLA)
SKU: 45725-94400 Weight: 0.100000 Brand: Price: $ 1.76 |
Knob (NLA) | 1 | $ 1.76 | ||
| 29 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 30 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 31 | 43711-94400 Upper Steering Bushing (NLA)
SKU: 43711-94400 Weight: 0.100000 Brand: Price: $ 12.30 |
Upper Steering Bushing (NLA) | 1 | $ 12.30 | ||
| 32 | 43712-94410 Under Steering Bushing (NLA)
SKU: 43712-94410 Weight: 0.100000 Brand: Price: $ 12.36 |
Under Steering Bushing (NLA) | 1 | $ 12.36 | ||
| 33 | 43713-94400 Steering Bushing Spacer (NLA)
SKU: 43713-94400 Weight: 0.100000 Brand: Price: $ 1.79 |
Steering Bushing Spacer (NLA) | 1 | $ 1.79 | ||
| 34 | 43741-94400-0ED Pilot Shaft (NLA)
SKU: 43741-94400-0ED Weight: 0.100000 Brand: Price: $ 71.31 |
Pilot Shaft (NLA) | 1 | $ 71.31 | ||
| 35 | 43753-94400 Steering Bracket Grommet (NLA)
SKU: 43753-94400 Weight: 0.100000 Brand: Price: $ 2.76 |
Steering Bracket Grommet (NLA) | 1 | $ 2.76 | ||
| 36 | 09161-47001 Washer (NLA)
SKU: 09161-47001 Weight: 0.100000 Brand: Price: $ 3.07 |
Washer (NLA) | 1 | $ 3.07 | ||
| 37 | 09206-09001 Pin
SKU: 09206-09001 Weight: 0.060000 Brand: Price: $ 3.14 |
Pin | 2 | $ 3.14 | ||
| 38 | 09285-47001 Oil Seal (NLA)
SKU: 09285-47001 Weight: 0.100000 Brand: Price: $ 3.01 |
Oil Seal (NLA) | 1 | $ 3.01 | ||
| 39 | 43755-96320 Steering Bracket Attachment (NLA)
SKU: 43755-96320 Weight: 0.250000 Brand: Price: $ 125.03 |
Steering Bracket Attachment (NLA) | 1 | $ 125.03 | Optional | |
| 40 | 09100-08224-XC0 Bolt (8x35)
SKU: 09100-08224-XC0 Weight: 0.060000 Brand: Price: $ 5.06 |
Bolt (8x35) | 2 | $ 5.06 | Optional | |
| 41 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | Optional | |
| 42 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | Optional | |
| 43 | 43754-94301-0ED Steering Cover (NLA)
SKU: 43754-94301-0ED Weight: 1.500000 Brand: Price: $ 9.43 |
Steering Cover (NLA) | 1 | $ 9.43 | DT40TC | |
| 44 | 03142-05103 Screw (NLA)
SKU: 03142-05103 Weight: 0.100000 Brand: Price: $ 1.21 |
Screw (NLA) | 2 | $ 1.21 | DT40TC | |
| 45 | 45700-94412 Shallow Water Drive Assy
SKU: 45700-94412 Weight: 0.500000 Brand: Price: $ 80.26 |
Shallow Water Drive Assy | 1 | $ 80.26 | 1988 to 1992 | |
| 47 | 45713-94420 Stopper (NLA)
SKU: 45713-94420 Weight: 0.100000 Brand: Price: $ 7.01 |
Stopper (NLA) | 1 | $ 7.01 | 1988 to 1992 | |
| 48 | 09111-10045 Bolt (10x20.8) (NLA)
SKU: 09111-10045 Weight: 0.100000 Brand: Price: $ 3.66 |
Bolt (10x20.8) (NLA) | 2 | $ 3.66 | 1988 to 1992 | |
| 49 | 09117-06038 Bolt (6x16) (NLA)
SKU: 09117-06038 Weight: 0.100000 Brand: Price: $ 1.51 |
Bolt (6x16) (NLA) | 1 | $ 1.51 | 1988 to 1992 | |
| 50 | 09443-12039 Spring (NLA)
SKU: 09443-12039 Weight: 0.100000 Brand: Price: $ 2.32 |
Spring (NLA) | 1 | $ 2.32 | 1988 to 1992 | |
| 51 | 45255-95500 Knob (NLA)
SKU: 45255-95500 Weight: 0.100000 Brand: Price: $ 2.64 |
Knob (NLA) | 1 | $ 2.64 | 1988 to 1992 | |
| 52 | 09160-05032 Washer (NLA)
SKU: 09160-05032 Weight: 0.100000 Brand: Price: $ 0.94 |
Washer (NLA) | 1 | $ 0.94 | 1988 to 1992 | |
| 53 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | 1988 to 1992 | |
| 54 | 45331-94610 Shallow Water Drive Pin (NLA)
SKU: 45331-94610 Weight: 0.100000 Brand: Price: $ 7.49 |
Shallow Water Drive Pin (NLA) | 1 | $ 7.49 | 1988 to 1992 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
