Suzuki DT 40 Parts Listings 1994 to 1998

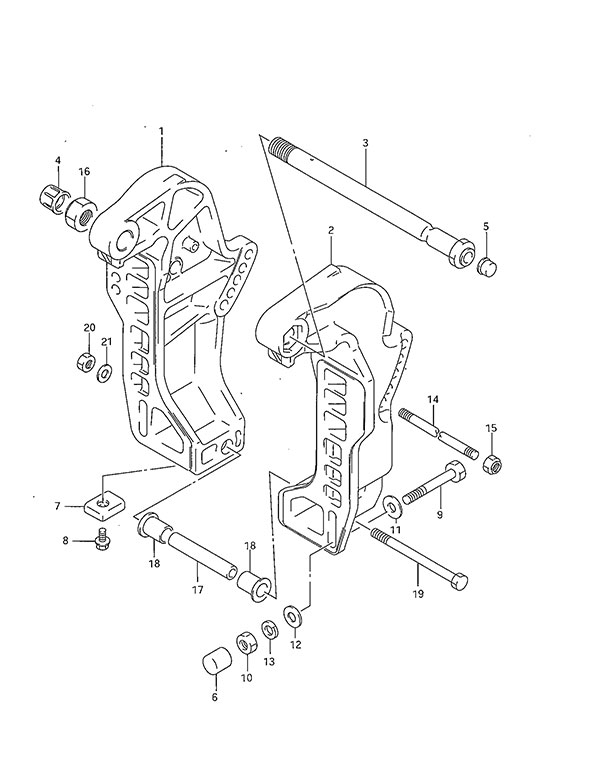

Fig. 20A - Clamp Bracket (DT40C)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-97E01-0ED Starboard Clamp Bracket (NLA)
SKU: 41111-97E01-0ED Weight: 0.100000 Brand: Price: $ 149.95 |
Starboard Clamp Bracket (NLA) | 1 | $ 149.95 | ||
| 2 | 41121-97E01-0ED Port Clamp Bracket (NLA)
SKU: 41121-97E01-0ED Weight: 0.100000 Brand: Price: $ 149.95 |
Port Clamp Bracket (NLA) | 1 | $ 149.95 | ||
| 3 | 41130-95292 Clamp Bracket Shaft
SKU: 41130-95292 Weight: 1.500000 Brand: Price: $ 283.97 |
Clamp Bracket Shaft | 1 | $ 283.97 | ||
| 4 | 41151-94500 Clamp Bracket Shaft Cap
SKU: 41151-94500 Weight: 0.060000 Brand: Price: $ 2.85 |
Clamp Bracket Shaft Cap | 1 | $ 2.85 | ||
| 5 | 41152-94500 Clamp Bracket Shaft Plug
SKU: 41152-94500 Weight: 0.125000 Brand: Price: $ 2.22 |
Clamp Bracket Shaft Plug | 1 | $ 2.22 | ||
| 6 | 41153-94500 Transom Bolt Cap
SKU: 41153-94500 Weight: 0.060000 Brand: Price: $ 2.96 |
Transom Bolt Cap | 4 | $ 2.96 | ||
| 7 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 8 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 9 | 09100-12093 Transom Bolt (12x100)
SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | Requires Ref# 22 | |
| 10 | 09140-12028 Nut
SKU: 09140-12028 Weight: 0.060000 Brand: Price: $ 3.60 |
Nut | 4 | $ 3.60 | ||
| 11 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 12 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 4 | $ 1.80 | ||
| 13 | 09162-12005 Lock Washer
SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 4 | $ 2.06 | ||
| 14 | 45421-97E00 Tilt Lock Pin (NLA)
SKU: 45421-97E00 Weight: 0.100000 Brand: Price: $ 26.61 |
Tilt Lock Pin (NLA) | 1 | $ 26.61 | ||
| 15 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 16 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 17 | 48121-97E00 Tilt Cylinder Shaft (NLA)
SKU: 48121-97E00 Weight: 0.100000 Brand: Price: $ 29.57 |
Tilt Cylinder Shaft (NLA) | 1 | $ 29.57 | ||
| 18 | 09307-18002 Bushing
SKU: 09307-18002 Weight: 0.060000 Brand: Price: $ 10.38 |
Bushing | 2 | $ 10.38 | ||
| 19 | 09100-10190-XC0 Bolt (10x145)
SKU: 09100-10190-XC0 Weight: 0.220000 Brand: Price: $ 19.52 |
Bolt (10x145) | 1 | $ 19.52 | ||
| 20 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
| 21 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 1 | $ 1.63 | ||
| 22 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
