Suzuki DT 40 Parts Listings 1986 to 1998

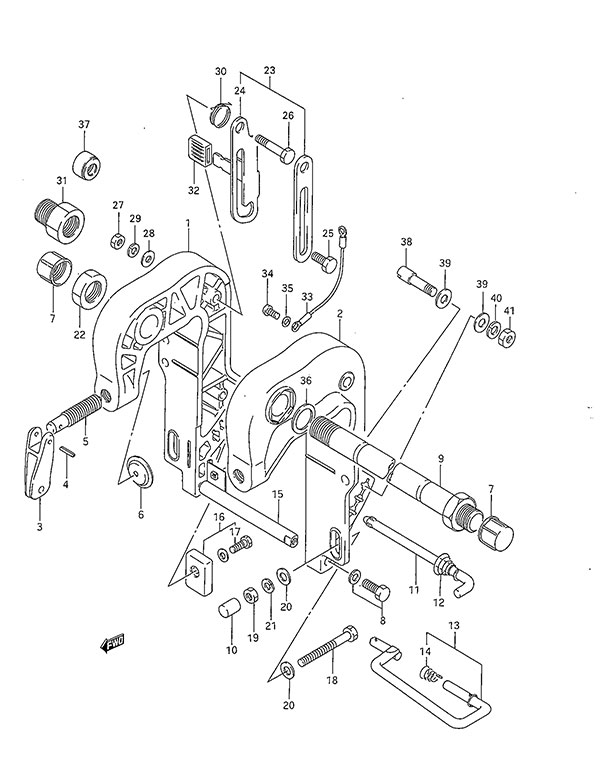

Fig. 20 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41110-94421-0ED Starboard Clamp Bracket (NLA)
SKU: 41110-94421-0ED Weight: 2.000000 Brand: Price: $ 119.78 |
Starboard Clamp Bracket (NLA) | 1 | $ 119.78 | ||
| 2 | 41120-94442-0ED Port Clamp Bracket (NLA)
SKU: 41120-94442-0ED Weight: 2.000000 Brand: Price: $ 148.25 |
Port Clamp Bracket (NLA) | 1 | $ 148.25 | ||
| 3 | 41212-93001-0ED Clamp Handle (NLA)
SKU: 41212-93001-0ED Weight: 0.120000 Brand: Price: $ 28.71 |
Clamp Handle (NLA) | 2 | $ 28.71 | ||
| 4 | 09205-06007 Spring Pin (6x25)
SKU: 09205-06007 Weight: 0.080000 Brand: Price: $ 2.28 |
Spring Pin (6x25) | 2 | $ 2.28 | ||
| 5 | 41211-95250 Clamp Screw (NLA)
SKU: 41211-95250 Weight: 0.100000 Brand: Price: $ 11.65 |
Clamp Screw (NLA) | 2 | $ 11.65 | ||
| 6 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 7 | 41151-94500 Clamp Bracket Shaft Cap
SKU: 41151-94500 Weight: 0.060000 Brand: Price: $ 2.85 |
Clamp Bracket Shaft Cap | 2 | $ 2.85 | ||
| 8 | 09117-08071 Bolt (8x35)
SKU: 09117-08071 Weight: 0.060000 Brand: Price: $ 6.05 |
Bolt (8x35) | 2 | $ 6.05 | ||
| 9 | 41130-94341 Clamp Bracket Shaft
SKU: 41130-94341 Weight: 0.960000 Brand: Price: $ 148.13 |
Clamp Bracket Shaft | 1 | $ 148.13 | ||
| 10 | 41153-96300 Transom Bolt Cap (NLA)
SKU: 41153-96300 Weight: 0.100000 Brand: Price: $ 2.23 |
Transom Bolt Cap (NLA) | 2 | $ 2.23 | ||
| 11 | 45420-92L00 Tilt Lock Pin
SKU: 45420-92L00 Weight: 0.250000 Brand: Price: $ 27.33 |
Tilt Lock Pin | 1 | $ 27.33 | ||
| 12 | 09441-17002 Spring (NLA)
SKU: 09441-17002 Weight: 0.060000 Brand: Price: $ 1.38 |
Spring (NLA) | 1 | $ 1.38 | ||
| 13 | 45420-94401 Tilt Lock Pin (NLA)
SKU: 45420-94401 Weight: 0.100000 Brand: Price: $ 30.86 |
Tilt Lock Pin (NLA) | 1 | $ 30.86 | DT40TC S/N 610944 Newer 1986 to 1993 | |
| 14 | 09441-17003 Spring (NLA)
SKU: 09441-17003 Weight: 0.100000 Brand: Price: $ 1.37 |
Spring (NLA) | 1 | $ 1.37 | ||
| 15 | 41310-94400 Clamp Bracket Lower Rod
SKU: 41310-94400 Weight: 0.100000 Brand: Price: $ 19.97 |
Clamp Bracket Lower Rod | 1 | $ 19.97 | ||
| 16 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 17 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 18 | 09100-08239 Bolt (8x90)
SKU: 09100-08239 Weight: 0.080000 Brand: Price: $ 3.33 |
Bolt (8x90) | 2 | $ 3.33 | ||
| 19 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 20 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 4 | $ 2.68 | ||
| 21 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 22 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 23 | 41200-92L00 Tilt Arm Assembly
SKU: 41200-92L00 Weight: 0.600000 Brand: Price: $ 50.37 |
Tilt Arm Assembly | 1 | $ 50.37 | ||
| 24 | 41223-94400 Tilt Stop Arm (NLA)
SKU: 41223-94400 Weight: 0.100000 Brand: Price: $ 8.27 |
Tilt Stop Arm (NLA) | 1 | $ 8.27 | ||
| 25 | 09111-10067 Bolt (10x20.4)
SKU: 09111-10067 Weight: 0.060000 Brand: Price: $ 6.13 |
Bolt (10x20.4) | 2 | $ 6.13 | ||
| 26 | 09111-10069 BOLT (10X54.5)
SKU: 09111-10069 Weight: 0.000000 Brand: Price: $ 15.41 |
BOLT (10X54.5) | 2 | $ 15.41 | ||
| 27 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 28 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 29 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 30 | 09448-29009 Spring
SKU: 09448-29009 Weight: 0.100000 Brand: Price: $ 3.16 |
Spring | 1 | $ 3.16 | ||
| 31 | 41141-94300 Steering Cable Attachment (NLA)
SKU: 41141-94300 Weight: 0.250000 Brand: Price: $ 42.48 |
Steering Cable Attachment (NLA) | 1 | $ 42.48 | Optional | |
| 32 | 41225-94400 Tilt Lock Arm Rubber
SKU: 41225-94400 Weight: 0.060000 Brand: Price: $ 2.88 |
Tilt Lock Arm Rubber | 1 | $ 2.88 | ||
| 33 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 34 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 35 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 | ||
| 36 | 09160-22033 Washer (22.5x38x1.0)
SKU: 09160-22033 Weight: 0.060000 Brand: Price: $ 3.96 |
Washer (22.5x38x1.0) | 1 | $ 3.96 | ||
| 37-1 | 41161-94400 Steering Cable Seal
SKU: 41161-94400 Weight: 0.060000 Brand: Price: $ 12.60 |
Steering Cable Seal | 1 | $ 12.60 | Optional | |
| 37-2 | 41161-94400 Steering Cable Seal
SKU: 41161-94400 Weight: 0.060000 Brand: Price: $ 12.60 |
Steering Cable Seal | 1 | $ 12.60 | Std: DT40TC, DT40RC | |
| 38 | 48211-94400 Tilt Lower Lock Pin (NLA)
SKU: 48211-94400 Weight: 0.100000 Brand: Price: $ 11.28 |
Tilt Lower Lock Pin (NLA) | 2 | $ 11.28 | DT40TC 1986 to 1994 | |
| 39 | 09160-10098 Washer (10x18x1.0)
SKU: 09160-10098 Weight: 0.100000 Brand: Price: $ 1.42 |
Washer (10x18x1.0) | 4 | $ 1.42 | DT40TC | |
| 40 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | DT40TC | |
| 41 | 09140-10032 Nut
SKU: 09140-10032 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut | 2 | $ 2.04 | DT40TC |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
