Suzuki DT 40 Parts Listings 1986 to 1998

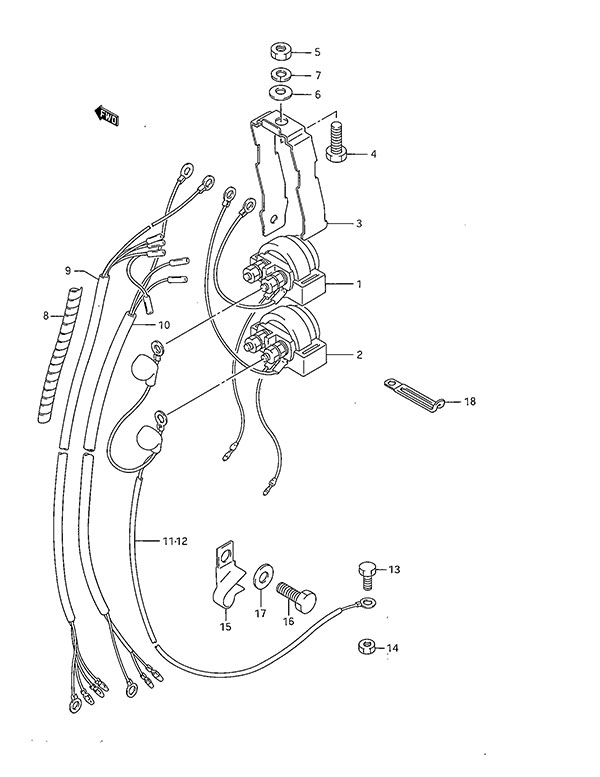

Fig. 19 - Electrical (DT40TC)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 38410-94540 PTT Relay Assembly (NLA)
SKU: 38410-94540 Weight: 0.380000 Brand: Price: $ 131.56 |
PTT Relay Assembly (NLA) | 1 | $ 131.56 | Up 1986 to 1989 | |
| 1-2 | 38410-94552 PTT Relay Assembly
SKU: 38410-94552 Weight: 0.500000 Brand: Price: $ 140.10 |
PTT Relay Assembly | 1 | $ 140.10 | Up 1990 to 1998 | |
| 2-1 | 38410-94540 PTT Relay Assembly (NLA)
SKU: 38410-94540 Weight: 0.380000 Brand: Price: $ 131.56 |
PTT Relay Assembly (NLA) | 1 | $ 131.56 | Down 1986 to 1989 | |
| 2-2 | 38410-94552 PTT Relay Assembly
SKU: 38410-94552 Weight: 0.500000 Brand: Price: $ 140.10 |
PTT Relay Assembly | 1 | $ 140.10 | Down 1990 to 1998 | |
| 3 | 38412-94401 PTT Bracket (NLA)
SKU: 38412-94401 Weight: 0.100000 Brand: Price: $ 8.69 |
PTT Bracket (NLA) | 1 | $ 8.69 | ||
| 4 | 09100-08219 Bolt (8x20) (NLA)
SKU: 09100-08219 Weight: 0.060000 Brand: Price: $ 2.27 |
Bolt (8x20) (NLA) | 1 | $ 2.27 | ||
| 5 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 1 | $ 2.52 | ||
| 6 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 7 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 1 | $ 1.49 | ||
| 8-1 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 8-2 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->50 | |
| 9 | 36645-94400 Relay Control Lead (NLA)
SKU: 36645-94400 Weight: 0.100000 Brand: Price: $ 15.90 |
Relay Control Lead (NLA) | 1 | $ 15.90 | 1986 to 1987 | |
| 10 | 36645-94410 Relay Control Lead (NLA)
SKU: 36645-94410 Weight: 0.100000 Brand: Price: $ 8.69 |
Relay Control Lead (NLA) | 1 | $ 8.69 | 1988 to 1998 | |
| 11 | 33831-94702 PTT Relay Cable Assembly
SKU: 33831-94702 Weight: 0.100000 Brand: Price: $ 14.59 |
PTT Relay Cable Assembly | 1 | $ 14.59 | 1986 to 1989 | |
| 12 | 33832-94400 PTT Relay Cable Assembly (NLA)
SKU: 33832-94400 Weight: 0.100000 Brand: Price: $ 10.65 |
PTT Relay Cable Assembly (NLA) | 1 | $ 10.65 | 1990 to 1998 | |
| 13 | 01570-06127 BOLT
SKU: 01570-06127 Weight: 0.062500 Brand: Price: $ 2.52 |
BOLT | 1 | $ 2.52 | ||
| 14 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 15 | 09403-12308 Clamp (NLA)
SKU: 09403-12308 Weight: 0.100000 Brand: Price: $ 2.03 |
Clamp (NLA) | 1 | $ 2.03 | ||
| 16 | 09100-06106 Bolt (6x9)
SKU: 09100-06106 Weight: 0.060000 Brand: Price: $ 2.16 |
Bolt (6x9) | 1 | $ 2.16 | ||
| 17 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 18 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | 1994 to 1998 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
