Suzuki DT 40 Parts Listings 1993 to 1998

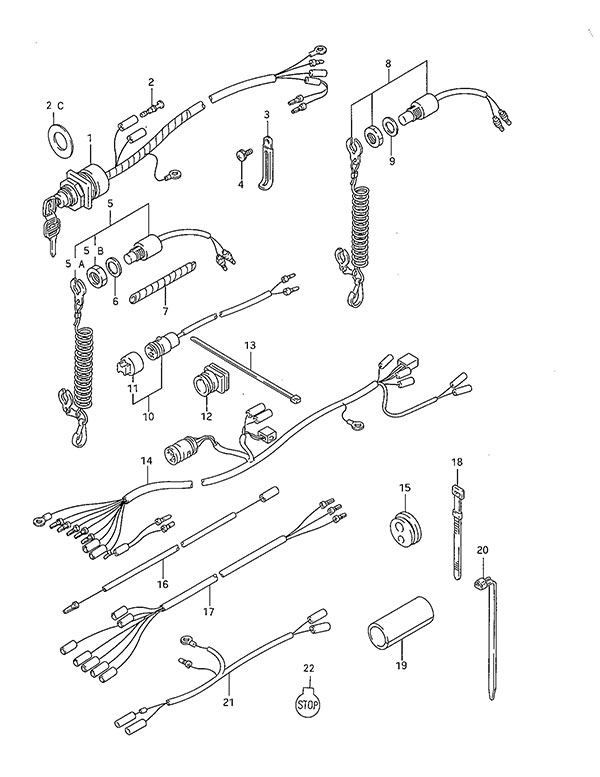

Fig. 18 - Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37110-94471 Ignition Switch Assembly
SKU: 37110-94471 Weight: 1.000000 Brand: Price: $ 106.05 |
Ignition Switch Assembly | 1 | $ 106.05 | ||
| 2 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 2C | 09160-25069 Washer
SKU: 09160-25069 Weight: 0.100000 Brand: Price: $ 5.05 |
Washer | 1 | $ 5.05 | ||
| 3 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 4 | 02142-06127 SCREW 6X12
SKU: 02142-06127 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X12 | 1 | $ 1.38 | ||
| 5 | 37820-92E05 Emergency Stop Switch Assembly
SKU: 37820-92E05 Weight: 0.250000 Brand: Price: $ 42.80 |
Emergency Stop Switch Assembly | 1 | $ 42.80 | ||
| 5A | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 5B | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 6 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 1 | $ 3.13 | ||
| 7 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 8 | 37830-95D03 Emergency Stop Switch Assembly
SKU: 37830-95D03 Weight: 0.250000 Brand: Price: $ 45.92 |
Emergency Stop Switch Assembly | 1 | $ 45.92 | Manual Starter | |
| 9 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 1 | $ 3.13 | Manual Starter | |
| 10 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | Manual Starter | |
| 11 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | Manual Starter | |
| 12 | 39603-94400 Receptacle Grommet (NLA)
SKU: 39603-94400 Weight: 0.100000 Brand: Price: $ 6.73 |
Receptacle Grommet (NLA) | 1 | $ 6.73 | Manual Starter | |
| 13 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | Manual Starter | |
| 14 | 36610-94400 Wiring Harness Assembly (NLA)
SKU: 36610-94400 Weight: 5.000000 Brand: Price: $ 105.58 |
Wiring Harness Assembly (NLA) | 1 | $ 105.58 | ||
| 15 | 36612-94421 Remocon Grommet
SKU: 36612-94421 Weight: 0.200000 Brand: Price: $ 9.43 |
Remocon Grommet | 1 | $ 9.43 | ||
| 16 | 36891-94400 Rev Limit Lead (NLA)
SKU: 36891-94400 Weight: 0.100000 Brand: Price: $ 6.16 |
Rev Limit Lead (NLA) | 1 | $ 6.16 | ||
| 17 | 36630-92E00 Instrument Wire Assembly
SKU: 36630-92E00 Weight: 0.260000 Brand: Price: $ 67.69 |
Instrument Wire Assembly | 1 | $ 67.69 | ||
| 18 | 09407-12402 Clamp
SKU: 09407-12402 Weight: 0.100000 Brand: Price: $ 3.09 |
Clamp | 1 | $ 3.09 | ||
| 19 | 33834-87E00 Protector (NLA)
SKU: 33834-87E00 Weight: 0.100000 Brand: Price: $ 1.57 |
Protector (NLA) | 1 | $ 1.57 | Manual Starter 1986 to 1995 | |
| 20 | 09407-18402 Clamp (L:165)
SKU: 09407-18402 Weight: 0.060000 Brand: Price: $ 2.21 |
Clamp (L:165) | 1 | $ 2.21 | Manual Starter 1986 to 1995 | |
| 21 | 36893-94410 Ignition Switch Extension Wire (NLA)
SKU: 36893-94410 Weight: 0.100000 Brand: Price: $ 28.31 |
Ignition Switch Extension Wire (NLA) | 1 | $ 28.31 | Electric Starter | |
| 22 | 37835-91J00-YAY Stop Label
SKU: 37835-91J00-YAY Weight: 0.060000 Brand: Price: $ 1.20 |
Stop Label | 1 | $ 1.20 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
